Beacon UB-101
USB Extender
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Compliant with USB 1.1 and 2.0.
- Extend self-powered and bus-powered USB peripheral devices (security cameras, printer, scanner, keyboard, etc.).
- Compatible with USB PC, SUN and MAC computers
- Extend to 100 meters for USB 1.1 device.
- Extend to 50 meters for USB2.0 devices when bus-powered, 100 meters when self-powered.
- Support a variety of low-speed and full-speed devices.
- Supports Windows 7 and LINUX operating systems.
- Supports Plug-n-Play specification.

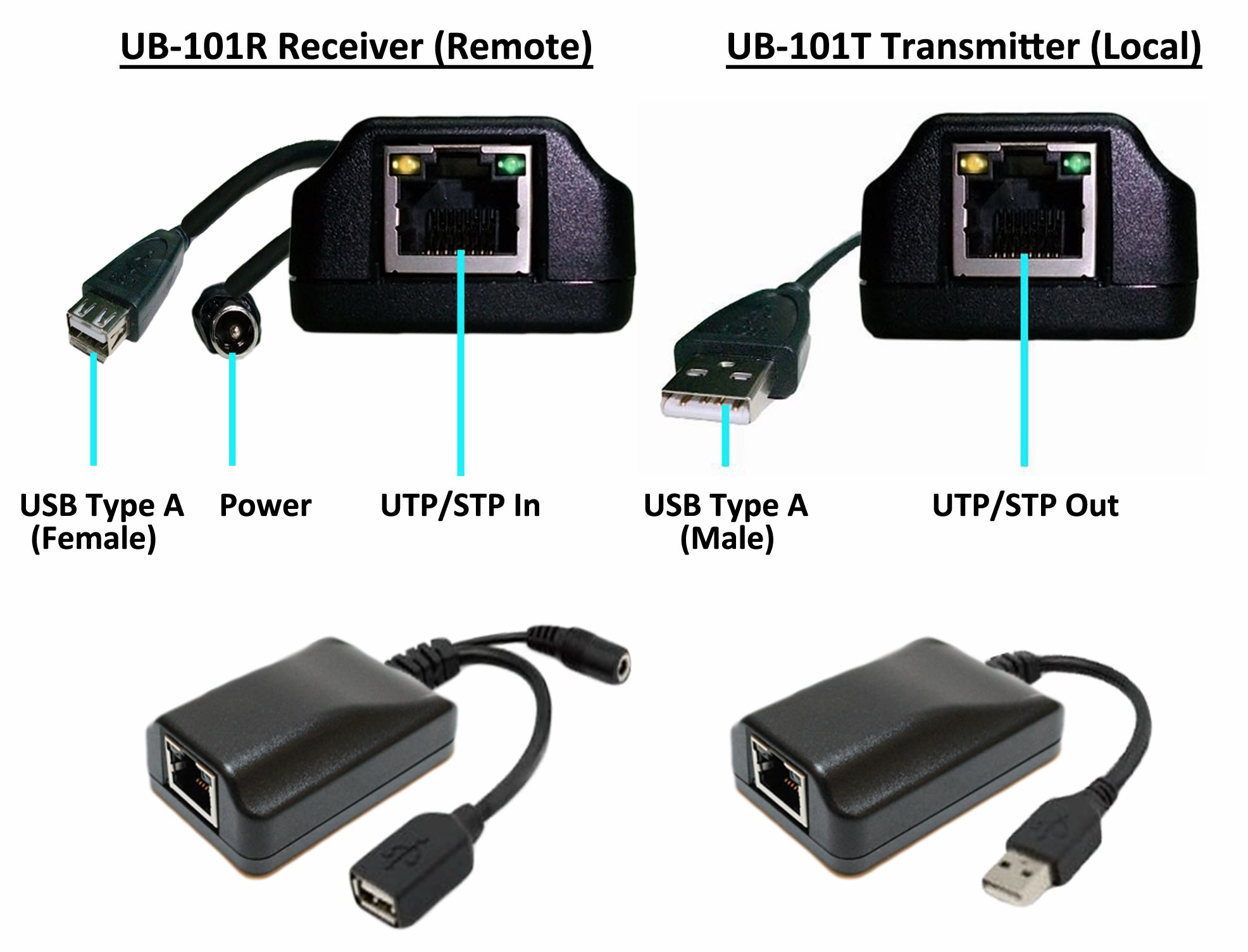

The UB-101 is an USB 1.1/2.0 Extender kit over CAT5e/6 cable. The kit contains two units, the local (Transmitter) unit and the remote (Receiver) unit, which are interconnected with CAT5e/6 cable
| SPECIFICATION |
| Model No. | UB-101 | |||
| Transmitter | Receiver | |||
| UB-101T | UB-101R | |||
| Interface | 1 | N/A | ||
| Cable | N/A | 1 | ||
| Distance (Max) | USB 1.1 | 100 m | ||
| USB 2.0 | Bus-Powered | 50 m | ||
| Self-Powered | 100 m | |||
| Power | N/A | DC 5V / 1A | ||
| Regulatory Approval | FCC, CE, RoHS | |||
| Material | Plastics (Black) | |||
| Weight | 40 g | 43 g | ||
| Dimension (L x W x H) | 620 x 360 x 22 mm | |||
