Beacon K305632-15
KVM Extender (KVM and RS-232 ) Kit

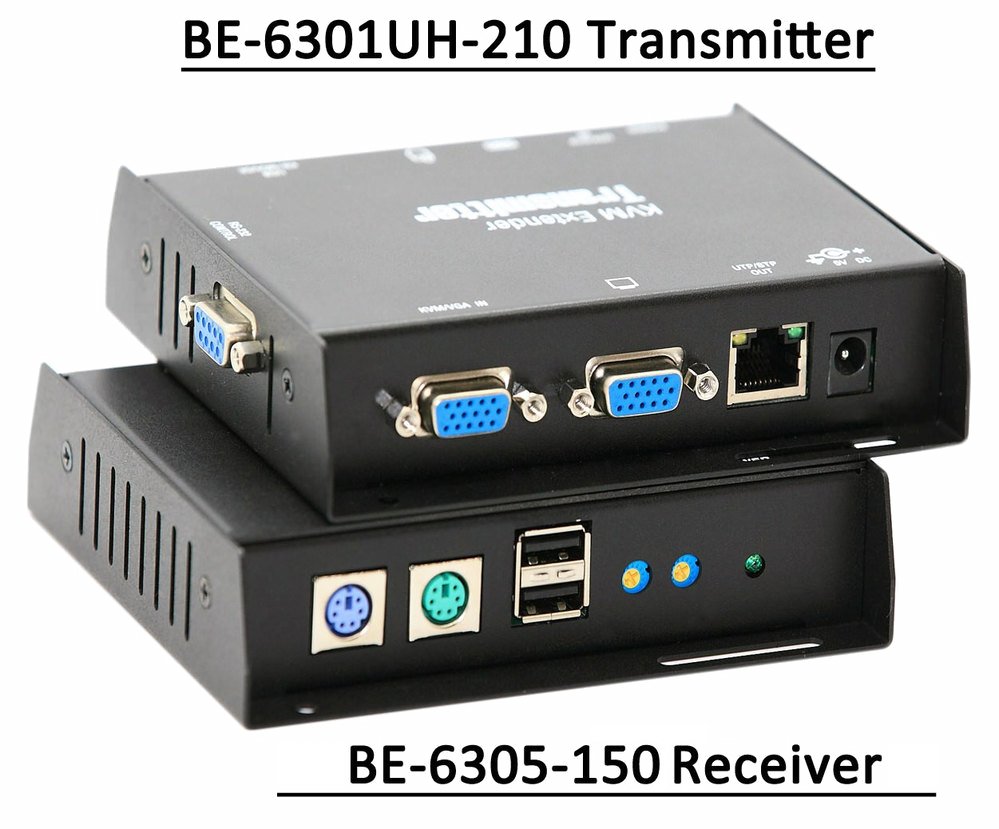

(BE-6301UH-210 & BE-6305-150)
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- High resolution video -up to 1600 x 1200 @ 60 Hz.
- Cat5 or higher cable to connect the Transmitter and Receiver Units - up to 150m (500 ft.) apart.
- Dual console operation - control your PC from both the local and Console Receiver PS2 Keyboard, mouse and monitor.
- Supports full Serial, bidirectional RS-232 communication.
- Supports VGA, SVGA, and Multisync monitors - Console Receiver monitor supports DDC2B.
- Console Receiver has video Gain and EQ adjustments for optimum image.
- Pure hardware, Plug n Play design.
The high-end K305632-15 KVM Extender Kit enables both KVM and RS-232 Serial control over a single, easy-to-install, CAT5 UTP / STP cable. It effectively extends PC KVM (USB Keyboard, Video, USB Mouse) control to the Console Receiver.
This kit also provides for convenient dual access; in addition to the remote console access, you can also connect a monitor/ keyboard/ mouse set to provide local PC access. RS-232 Serial function allows you remotely to control serial devices from distances of up to 150m/500ft.
It is a perfect solution for any kind of installation where the console needs to be in a conveniently accessible location. However, the computer system to reside in a long distance place - away from dust, and harsh environmental influences.
| SPECIFICATION |
| Kit No. | K305632-15 | |||||
| Model No. | BE-6301UH-210 (Transmitter) | BE-6305-150 (Receiver) | ||||
| Connector | Console Port | Video | 1 x HDD-15 Female (Blue) | |||
| Keyboard | 1 x 6-pin Mini-DIN Female (Purple PS2) | 1 x 6-pin Mini-DIN Female (Purple PS2) 1 x USB Type A Female | ||||
| Mouse | 1 x 6-pin Mini-DIN Female (Green PS2) | 1 x 6-pin Mini-DIN Female (Green PS2) 1 x USB Type A Female | ||||
| KVM Ports | 1 x HDD-15 Female | N/A | ||||
| Power | 1 x DC Jack | |||||
| Serial RS-232 | 1 x HDD-9 Female | |||||
| Unit to Unit | 1 x RJ-45 Female | |||||
| Video Gain | N/A | 1 x Mini Pot | ||||
| Video EQ | N/A | 1 x Mini Pot | ||||
| LED | Power | 1 (Green) | ||||
| Emulation | Keyboard / Mouse | PS2 & USB | ||||
| Resoloution | 1600 x 1200 @ 60Hz, DDC2B | |||||
| Distance | 150m (500 ft.) | |||||
| Power Consumption | Input: External 100~240V AC | |||||
| Environment | Operating Temp. | 0 ~50°C | ||||
| Storage Temp. | -20 ~ 60°C | |||||
| Humidity | 0 ~ 80% RH, Non-condensing | |||||
| Physical Properties | Housing | Metal (Black) | ||||
| Weight | 397 g | 390 g | ||||
| Dimension (L x W x H) | 140 x 93 x 32 mm | |||||
