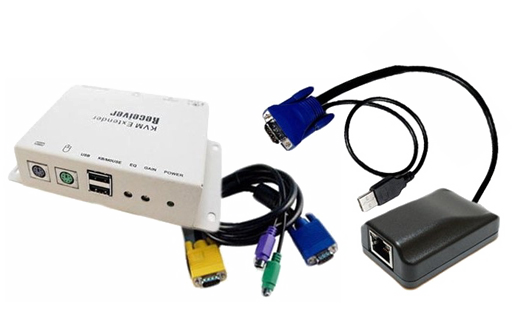

Beacon K30360UM-15
KVM Extender (Single PC; Single Access)
( BE601M & BE-6303-150 )
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- High resolution video -up to 1600 x 1200 @ 60 Hz.
- Cat5e cable to connect the PC and Console - up to 150 meters (500 ft.).
- Single Console operation - control your PC from Console Receiver USB keyboard, Mouse and monitor.
- Supports VGA, SVGA, and Multisync monitors - Console Receiver monitor support DDC2B.
- Console Receiver has video Gain and EQ adjustments for optimum image.
- Pure hardware, Plug n Play design.

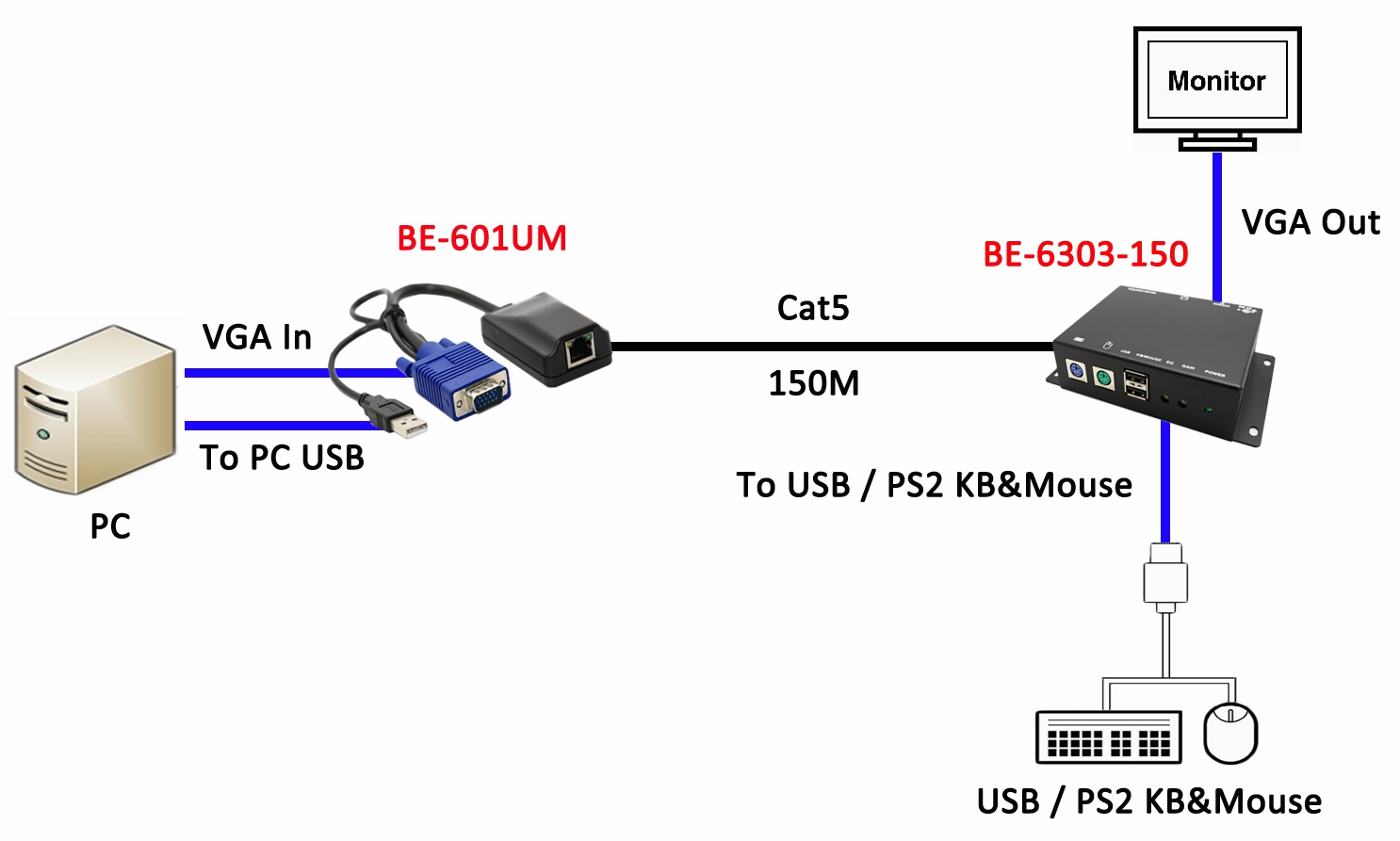

The K30360UM-15 is a Single PC; Single Access KVM Extender Kit. It is a perfect solution for any type of installation where the console needs to be in a conveniently accessible location. However the computer system to reside in a long distance place away from dust, and harsh environmental influences. It effectively extends PC KVM (Keyboard, Video and Mouse) control to the Console Receiver. It also provides for single convenient access; in addition to the remote console access, you can also connect a monitor/ keyboard/ mouse set to provide local PC access.
| SPECIFICATION |
| Kit No. | K30360UM-15 | |||
| Model No. | BE-601UM (Transmitter) | BE-6303-150 (Receiver) | ||
| Connector | Console Port | Keyboard & Mouse | 1 x USB Type A Male | 2 x 6-pin Mini-DIN Female (Purple&Green) 2 x USB Type A Female |
| Video | 1 x HDD-15 Male | 1 x HDD-15 Female (Blue) | ||
| Unit to Unit | 1 x RJ-45 Female | |||
| Video Gain | N/A | 1 x Mini Pot | ||
| Video EQ | N/A | 1 x Mini Pot | ||
| LED | Power | N/A | 1 (Green) | |
| Emulation | Keyboard / Mouse | USB | PS2 & USB | |
| Resloution | 1600 x 1200 @ 60Hz, DDC2B | |||
| Distance | 150M (500 ft.) | |||
| Video RGB skew Adjust | N/A | Yes | ||
| Power Consumption | From USB Port 5V DC 200mA | DC 5V : 1.2A | ||
| Enviorment | Operating Temp. | 0 ~70°C | ||
| Storage Temp. | -20 ~ 60°C | |||
| Humidity | 0 ~ 80% RH, Non-condensing | |||
| Phyical Properties | Housing | Plastics (Black) | Metal (Black) | |
| Weight | 80 g | 359 g | ||
| Dimension (L x W x H) | 64 x 39 x 22 mm | 141 x 86 x 32 mm | ||
