Beacon AVK-70Z-101
VGA Extender Kit over Cat5
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Resolution up to 1920 * 1200 @60Hz.
- Pure hardware, Plug n Play design.
- Razor sharp video, plus high fidelity stereo audio.
- Receivers have Gain and EQ adjustments for optimum image quality.
- Run a single UTP cable to 150m (500 feet) from Transmitter.
- Supports the latest TFT, LCD, SVGA, VGA multisync monitors and DDC2B high resolution.

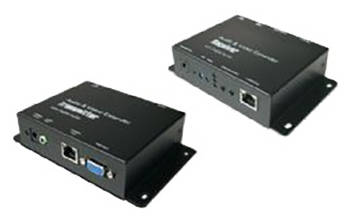

The Extender Kit consists of a transmitter and a receiver. It is a VGA Only Extension unit that allows VGA signals be sent up to 150M (500 ft) via economical, easy-to-install unshielded twisted pair (UTP) CAT5 cable. It's simple, straight forward plug-and-play. Crisp video imaging and high fidelity sound.
| SPECIFICATION |

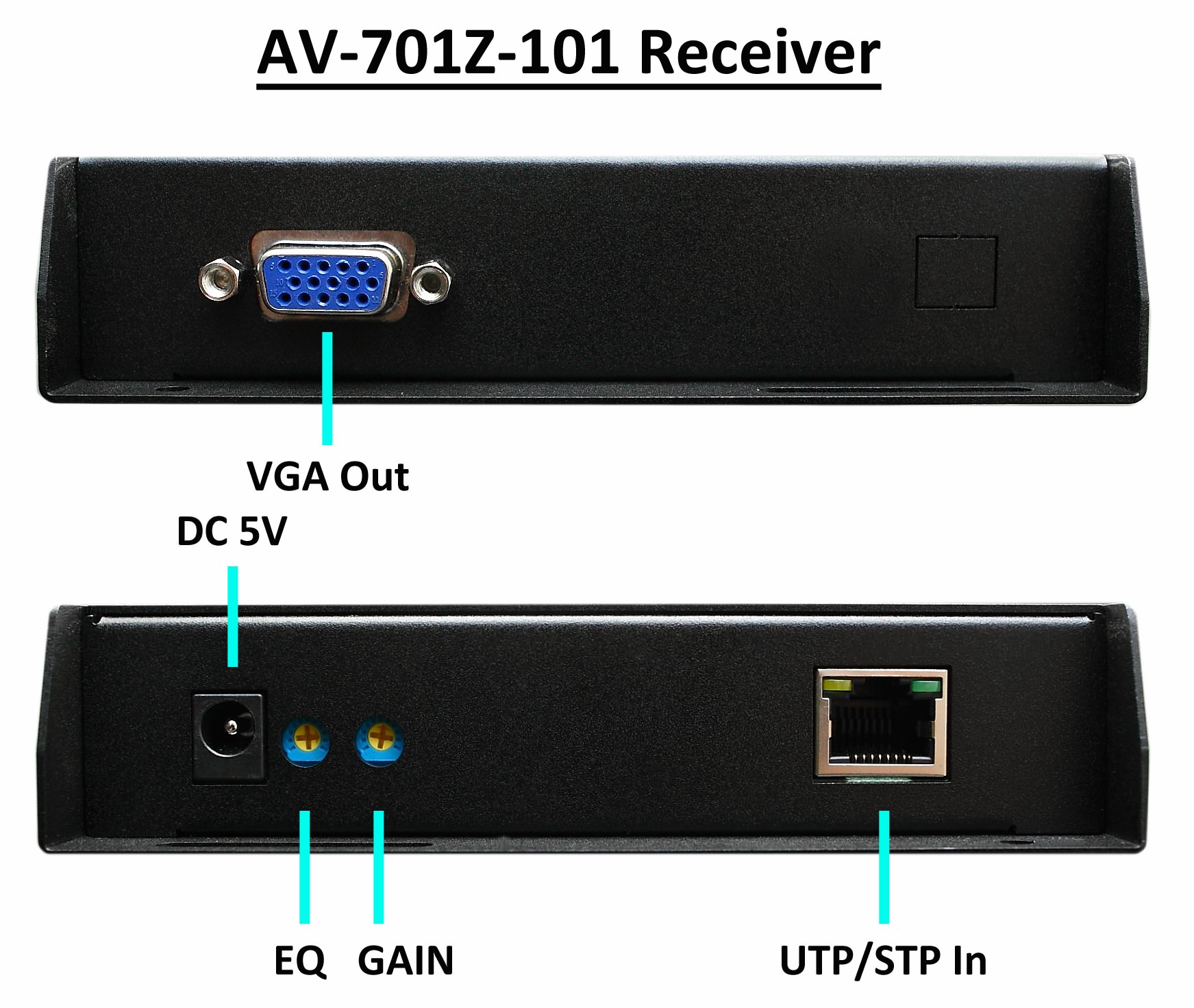

| Model No. | Transmitter | Receiver AV-701Z-101 | |
| Connetors | System Output | 1 x RJ-45 F | N/A |
| System Input | N/A | 1 x RJ-45 F | |
| VGA Input | 1 x HDD15 F | N/A | |
| VGA Output | 1 x HDD15 F | 1 x HDD15 F | |
| Video Gain | N/A | 1 x Mini Pot | |
| Video EQ | N/A | 1 x Mini Pot | |
| Video RGB Skew | N/A | N/A | |
| Power | 1 x Power Jack | ||
| Resolution | 1920 x 1200@ 60Hz , DDC2B | ||
| System Cable | CAT5, FTP Solid Wire 2x4x24 AWG,standard 568B RJ-45 connector . | ||
| Distance | Depends on receiver, and CAT5 cable quality. 0~150m (500 ft) | ||
| Power Consumption | External 100~240VAC to output DC +5.0V; 1.2A | ||
| Environment | Operating Tempature | 0~70°C | |
| Storage Tempature | -20~70°C | ||
| Humidity | 0~80% RH | ||
| Physical properties | Housing | Metal | |
| Dimensions (L x W x H) | 128 x 110 x 29 mm | ||
| Weight | 370g | ||
