Beacon AVK-70Z-S111

VGA extender with Audio over Cat5

egenskaber
beskrivelse
yderligere information
PDF

Supports up to 1920 x 1200 @60Hz resolution.
Easily distributes one high resolution VGA source to a remote display simultaneously.
Using one single CAT5 / 5e cable to extend signals.
Razor sharp video, plus high fidelity stereo audio.
Supports DDC for monitors.
AV-701Z-111 Receiver has Gain and EQ adjustments for optimum image quality.
Supports the latest LCD, VGA, SVGA, XVGA, SXGA and multi-sync monitors.
Receiver enables EDID automatic display detection and configuration and passes EDID information to Transmitter.
Applications: shopping malls, public address systems, educational facilities, transportation station, boardrooms, stores, restaurants, showrooms, windows displays, trade shows, exhibitions, computer based training.
Supports VESA 100 mounting.
Pure hardware, plug and play design.

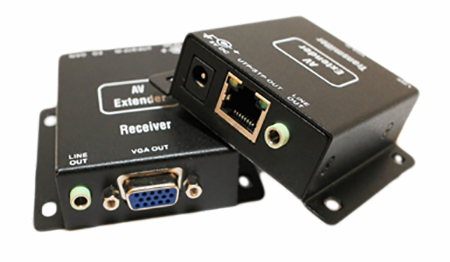

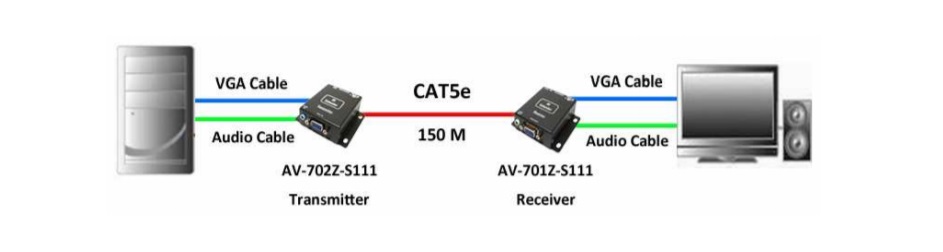

The AVK-70Z-S111 Mini VGA Extender extends VGA signal up 150 meters over convenient economical CAT5e cable. To work with a Projector, Plasma or LCD screens. It consists of a Transmitter (AV-702Z-S111) and a Receiver (AV-701Z-S111).

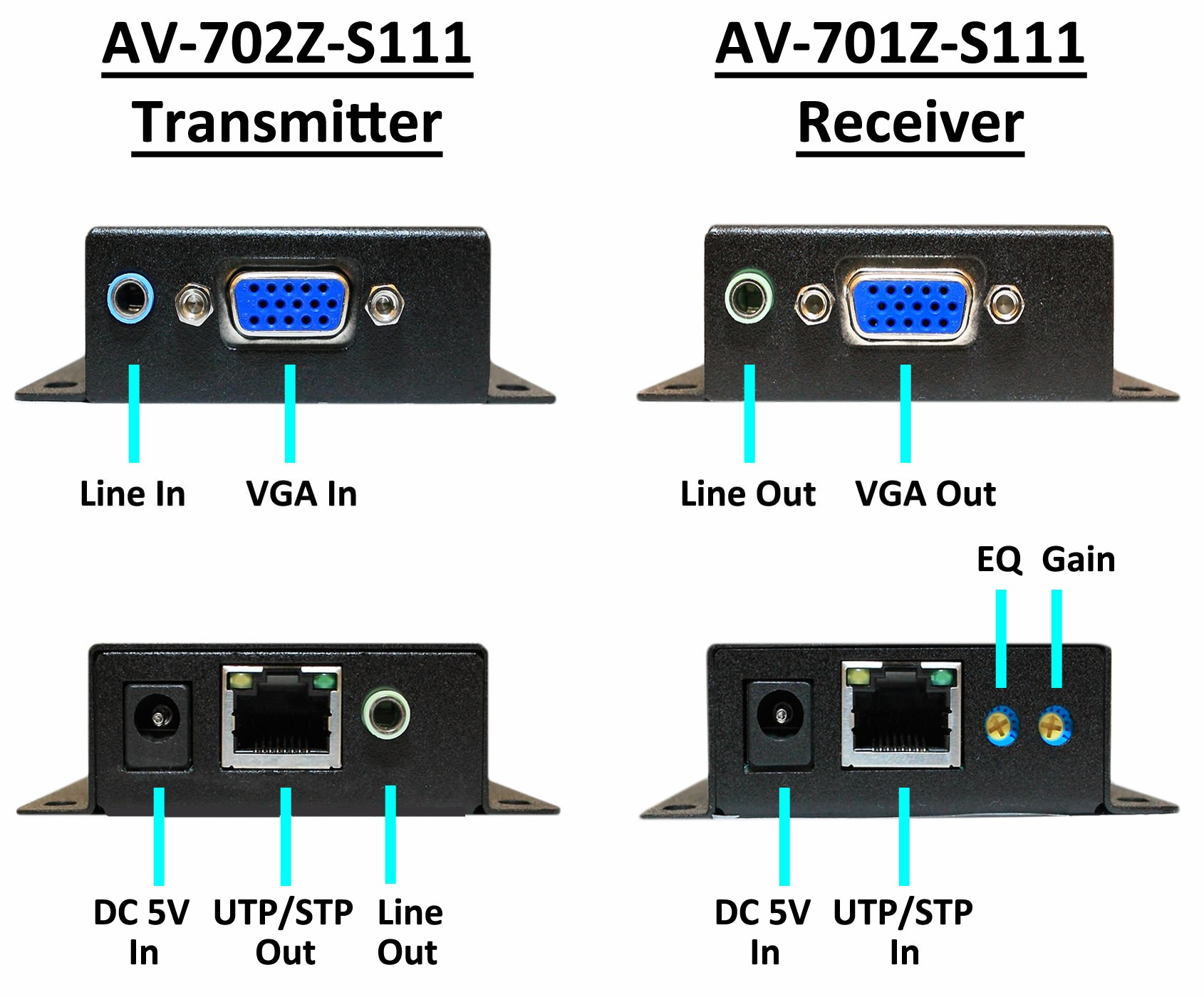

SPECIFICATION

Kit No.		AVK-70Z-S111
Model No.		Transmitter AV-702Z-S111	Receiver AV-701Z-S111
Connector	System Out	1 x RJ-45 F	N/A
	System In	N/A	1 x RJ-45 F
	VGA In	1 x VGA D-Sub 15-Pin Female	N/A
	VGA Out	N/A	1 x VGA D-Sub 15-Pin Female
	Audio In	Stereo audio	N/A
	Audio Out	Stereo audio	Stereo audio
	EDID Supports	Receiver passes EDID to Transmitter
	Video RGB/EQ	N/A	2 x Mini Port
	Power	1 x 5V DC
Resolution		Max. 1920 x 1200 @60 Hz
System Cable		CAT5e, FTP Solid Wire 2 x 4 x 24 AWG or better standard RJ-45 connector.
Distance		Up to 150 meters at 1920 x 1200 @60Hz
Physical properties	Dimensions (L x W x H)	67 x 75 x 22 mm
	Weight	154g	151g

Beacon AVK-70Z-S111 Datasheet (1559.3 kB)
