Beacon AV-70Z-111
VGA Extender over Cat5 with Stereo Audio
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Supports up to 1920 x 1200 @60Hz resolution.
- Easily distributes one high resolution VGA source to a remote display simultaneously.
- Using one single CAT5 / 5e cable to extend signals.
- Razor sharp video, plus high fidelity stereo audio.
- Supports DDC for monitors.
- Supports the latest LCD, VGA, SVGA, XVGA, SXGA and multi-sync monitors.
- Receiver enables EDID automatic display detection and configuration and passes EDID information to Transmitter.
- Applications: shopping malls, public address systems, educational facilities, transportation station, boardrooms, stores, restaurants, showrooms, windows displays, trade shows, exhibitions, computer based training.
- Supports VESA 100 mounting.
- Pure hardware, plug and play design.

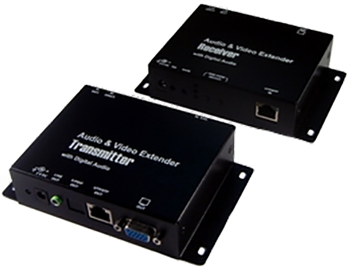

The Extender Kit consists of a transmitter and a receiver. It is a VGA and Audio Extension unit that allows video and stereo audio to be sent up to 150m (500 ft.) via economical, easy-to-install unshielded twisted pair (UTP) CAT5 cable. It's simple, straight forward plug-and-play. Crisp video imaging and high fidelity sound.
| SPECIFICATION |
| Kit No. | AVK-70Z-111 | ||
| Model No. | AV-702Z-111 | AV-701Z-111 Receiver | |
| Connector | System Out | 1 x RJ-45 F | N/A |
| System In | N/A | System IN | |
| VGA In | 1 x HDD15 F | N/A | |
| VGA Out | 1 x HDD15 | 1 x HDD15 F | |
| Audio In | 1x 3.5mm Stereo Jack | N/A | |
| Audio Out | 1x 3.5mm Stereo Jack | 1x 3.5mm Stereo Jack | |
| Video Gain | N/A | 1 x Mini Pot | |
| Video RGB Skew | N/A | N/A | |
| Power | 1 x Power Jack | ||
| LEDs | Power | 1 (Green) | |
| Audio Supports | Stereo Audio | ||
| Resolution | 1920 x 1200@ 60Hz , DDC2B | ||
| System Cable | CAT5, FTP Solid Wire 2x4x24 AWG, standard 568B RJ-45 connector. | ||
| Distance | CAT5 cable 0 ~ 150 m (500 ft.) | ||
| Power Consumption | External 100~240VAC to output DC +5.0V; 1.2A | ||
| Environment | Operating Temperature | 0~70°C | |
| Storage Temperature | -20~70°C | ||
| Humidity | 0~80% RH | ||
| Physical properties | Housing | Metal (Black) | |
| Dimensions (L x W x H) | 128 x 110 x 29 mm | ||
| Weight | 381g | 348g | |
