Beacon AVK-70Z-V101
VGA extender over Cat5
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Supports up to 1920 x 1200 @ 60Hz resolution.
- Extends high-resolution VGA signal to remote displays.
- Razor sharp video.
- Supports DDC for monitors.
- AV-701Z-V101 Receiver has Gain and EQ adjustments for optimum image quality.
- Supports the latest LCD, VGA, SVGA, XVGA, SXGA and multi-sync monitors.
- Receiver enables EDID automatic display detection and configuration and passes EDID information to Transmitter.
- Pure hardware, Plug and Play design.

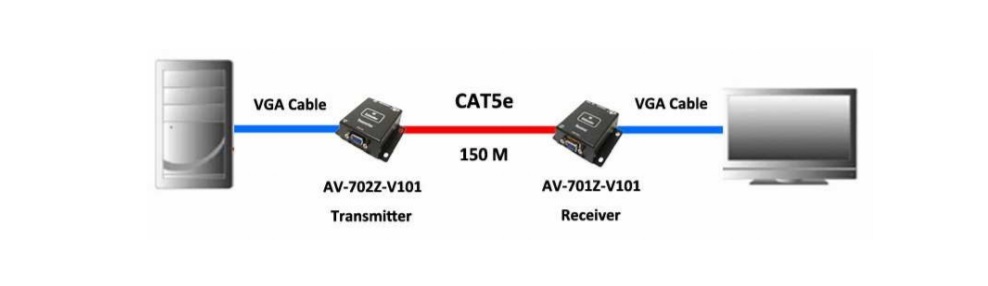

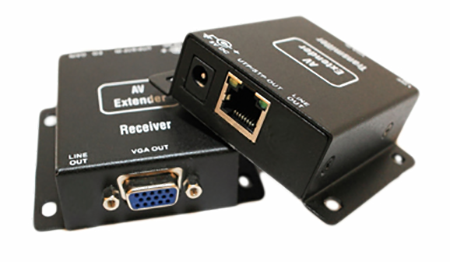

The AVK-70Z-V101 Mini VGA Extender extends VGA signal up 150 meters over convenient economical CAT5e cable. To work with a Projector, Plasma or LCD screens. It consists of a Transmitter (AV-702Z-V101) and a Receiver (AV-701Z-V101)

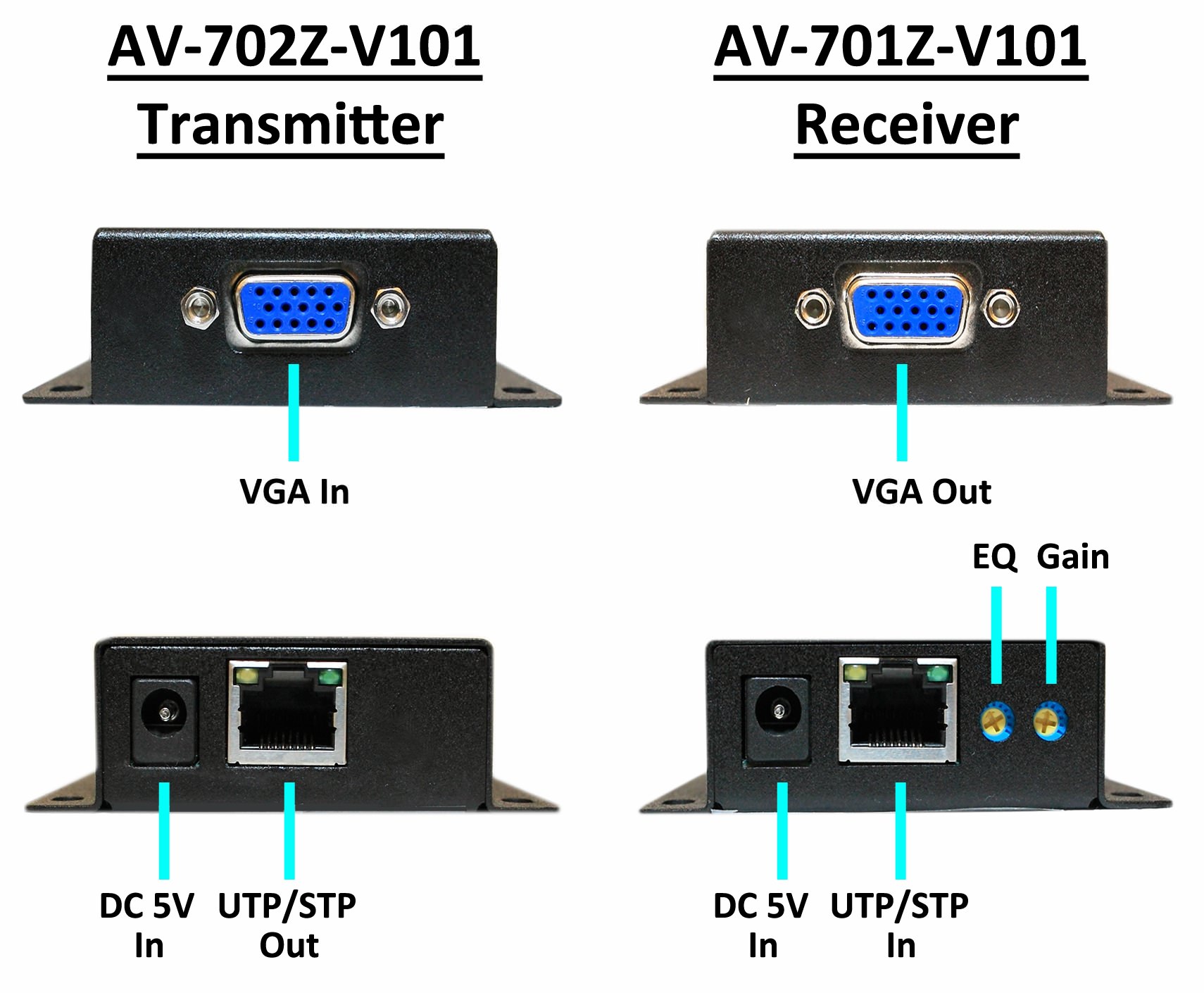

| SPECIFICATION |
| Model No. | AV-701Z-V101 | AV-702Z-V101 | |
| Connector | System Out:RJ-45 | N/A | 1 x RJ-45 Female |
| System In: RJ-45 | 1 x RJ-45 Female | N/A | |
| VGA In | N/A | 1 x VGA D-Sub 15-Pin Female | |
| VGA Out | 1 x VGA D-Sub 15-Pin Female | N/A | |
| Power | 1 x 5V DC | 1 x 5V DC | |
| System Cable | CAT5e, FTP Solid Wire 2 x 4 x 24 AWG or better standard RJ-45 connector. | ||
| EDID Supports | Receiver passes EDID to Transmitter | ||
| Video Gain/EQ | 2 x Mini Port | N/A | |
| Video | Max. 1920 x 1200 @60 Hz | ||
| Maximum Distance | Up to 150 meters at 1920 x 1200 @60Hz | ||
| Physical properties | Dimensions (L x W x H) | 67 x 75 X 22 mm | |
| Weight | 153g | ||
