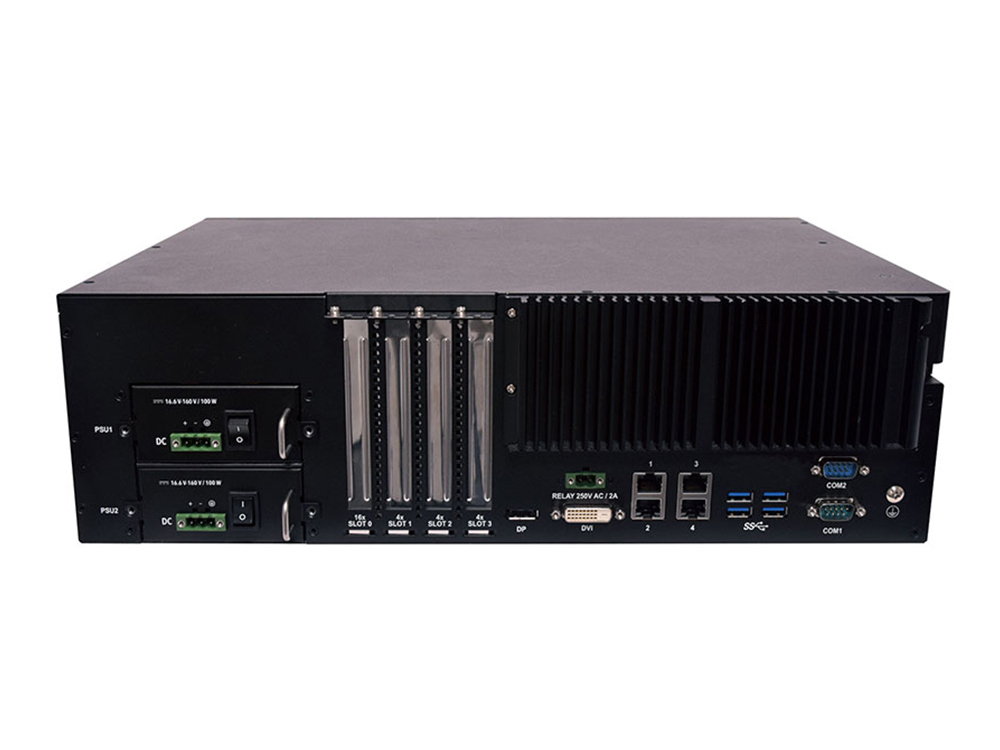

Lanner LEC-3340

The LEC-3340, a robust 3U rackmount industrial edge consolidation server, plays a crucial role in modern digitalized substations by leveraging SCADA systems for the efficient collection and conversion of analog data from the entire power grid into a digital format. Powered by Intel® Xeon® E3-1505L V6, Core™ i5-7442EQ (Kaby Lake-H), or W-11000 series (Tiger Lake-H) processors, it delivers outstanding performance. Compliant with IEC-61850 and IEEE 1613 standards, this industrial-grade server features rich I/O functions, including 4x PCIe slots, 4x GbE RJ45 or 4x GbE SFP ports, 5x USB 3.0 ports, DP/DVI or 2x new HDMI display ports, and 2x isolated COM ports. With support for SATA M.2 and PCIe M.2 for booting drives, as well as 2x swappable HDD/SSD drive bays with RAID support, the LEC-3340 enhances situational awareness, operational efficiency, and maintenance practices in digital substations.

Specifications

Platform
CPU	Intel® Xeon® E3-1505L V6 or Core i5-7442EQ CPU (by SKU A - D) Intel® Xeon® W-11865MLE/11555MLE/11155MLE (by SKU E - G)
Chipset	Intel® CM238 / RM590
BIOS	AMI SPI Flash BIOS
Memory Technology	DDR4 ECC
Memory Capacity	Up to 64 GB
Memory Socket	2 x 260-pin SODIMM
Storage
SATA	2 x 2.5" Swappable HDD/SSD drive bay support RAID0,1 1x SATA M.2 2242 M-key (by SKU E - G)
mSATA	1x mSATA socket (by SKU A - D)
PCIe	1x PCIe x4 M.2 2280 (by SKU E - G)
I/O
Ethernet controller	Intel® I210IT / Intel® I226IT
Graphic controller	Intel HD Graphics P630
Default LAN	4x 1GbE RJ45 ports (by SKU A - D) 4x 2.5GbE RJ45 ports (by SKU E - G)
Magnetic Isolation Protection	2KV Digital Isolation
Display output	1x DP (by SKU A - D) 1x DVI-D (by SKU A - D) 2x HDMI (by SKU E - G)
Magnetic Isolation Protection	1.5 KV built-in
Serial ports	2 x DB9 Male (COM1/COM2) onboard (by SKU A - D) 4 x DB9 Male (COM1/COM2/COM3/COM4) onboard (by SKU E - G) with isolation supports software selectable RS-232/422/485 1x IRIG-B
Serial ESD protection	15KV ESD Protection
USB	5x USB 3.0 type A
TPM	TPM 2.0 Onboard
Power and Mechanical
Power input	Dual Power Input for 100~240VAC and 16.6~160VDC (SKU A/C) Dual Power Input for 16.6~160VDC and 16.6~160VDC (SKU B)
Expansion	1 x PCIe x16, 3 x PCIe x4 slots
OS and Certifications
Operating System	Windows 10 Embedded Kernel 2.6, Ubuntu (by SKU A-D) Kernel 5.18, Ubuntu (by SKU E-G)
Certifications	CE, FCC ClassA, UL(compulsory), IEC 61850-3, IEEE 1613
Physical and Environmental
Storage temperature	-40°C to 85°C
Operating temperature	-40°C to 70°C
Operating humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	438 mm x 131.8 mm x 300.1 mm (17.24" x 5.19" x 11.81")
Weight	8.5 kg (18.7 lbs)
Watchdog	Watchdog timer 256 level time interval system reset, software programmable
Casing material	Aluminum + Steel

Order Information

LEC-3340E	Intel® Xeon® W-11865MLE CPU w/ 2x DDR4 ECC SODIMM, 2x HDMI, 4x 2.5 GbE RJ45, 1x SATA M.2 2242 M-key, 1x PCIe x4 M.2 2280, No PSU
LEC-3340F	Intel® Xeon® W-11555MLE CPU w/ 2x DDR4 ECC SODIMM, 2x HDMI, 4x 2.5 GbE RJ45, 1x SATA M.2 2242 M-key, 1x PCIe x4 M.2 2280, No PSU
LEC-3340G	Intel® Xeon® W-11155MLE CPU w/ 2x DDR4 ECC SODIMM, 2x HDMI, 4x 2.5 GbE RJ45, 1x SATA M.2 2242 M-key, 1x PCIe x4 M.2 2280, No PSU
LEA-PB3340A	PSU KIT DC 16.6~160V, 100W
LEA-PB3340B	PSU KIT AC 100~240V, 200W
