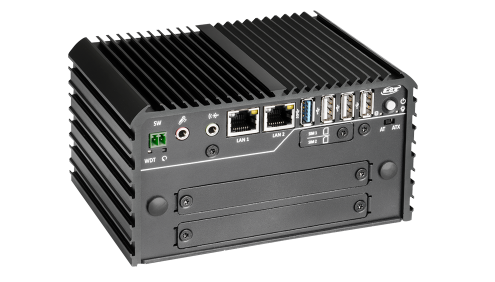

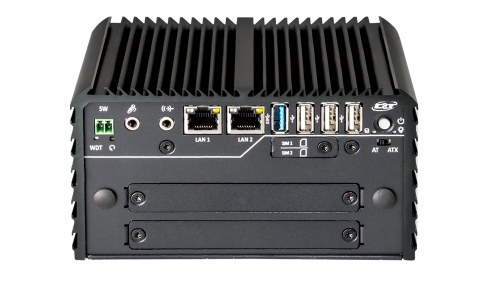

C&T Solution RCO-1030

Based on Intel® Atom? E3845 (1.91GHz) or Celeron® J1900 (2.0GHz) Quad Core processor, RCO-1000 series is a high variety and diversity fanless embedded system. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-40°C to 70°C).

Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, RCO-1000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes RCO-1000 series are safety system for all industrial applications.

Specification

System


Processor
- Intel® Atom® Processor E3845, Quad Core, 2MB Cache, 1.91 GHz
- Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz

System Chipset
SoC integrated

LAN Chipset
GbE1 & GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)

Audio Codec
Realtek ALC888S

System Memory
1x 204-Pin DDR3L 1066/1333MHz SODIMM.
Max. up to 8GB

BIOS
AMI 64Mbit SPI BIOS

Watchdog
Software Programmable Supports 1~255 sec.
System Reset



Display


VGA
Yes (by optional split cable)

DVI
1x DVI-I

DisplayPort
1x DisplayPort

Multiple Display
Dual Display



Storage


SSD/HDD
1x Internal 2.5" SATA HDD Bay

mSATA
1x mSATA (shared by 1x Mini PCIe)

SIM Socket
2x External SIM socket



Expansion


Mini PCI Express
2x Full-size Mini PCIe

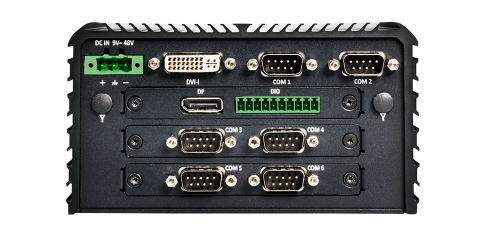

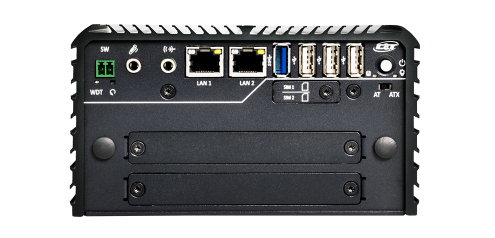

I/O


COM
2x RS-232/422/485
4x RS-232/422/485 (module)

USB
1x USB 3.0, 3x USB 2.0

LAN
2x RJ45

Audio
1x Mic-in, 1x Line-out

DIO
4 in / 4 out (Isolated)

Universal I/O Bracket
2x Universal I/O Bracket (For mini PCIe application)

Others
4x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off



Operating System


Windows
Windows 10, Windows 8.1, WES8.1, Windows 7, WES7

Linux
Linux kernel 3.X



Power


Power Mode
AT, ATX

Power Supply Voltage
9~48VDC

Power Connector
3-pin Terminal Block

Power Adaptor
Optional AC/DC 12V/5A, 60W

Power Protection
OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection



Environment


Operating Temp.
-40°C to 70°C

Storage Temp.
-40°C to 85°C

Relative Humidity
10% to 95% (non-condensing)

Vibration
With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis

Shock
With SSD: 50G, half sine, 11ms

Standards / Certification
CE, FCC Class A



Physical


Construction
Extruded Aluminum with Heavy Duty Metal

Dimension
150 (W) x 105 (D) x 83 (H) mm

Weight
1.11 kg

Mounting
Wall Mounting
Side / VESA / DIN-Rail Mounting (Optional)

Ordering Information

Available Modules
RCO-1030-E3845	Compact Fanless Embedded System with Intel® E3845 CPU, 1x DVI-I, 1x DP, DIO, 6x COM
RCO-1030-J1900	Compact Fanless Embedded System with Intel® J1900 CPU, 1x DVI-I, 1x DP, DIO, 6x COM
Optional Accessories
1-E09A06007	Adapter AC/DC 12V 5A 60W with 3-pin Terminal Block Plug 5.0mm Pitch
SFICBL022	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm
3-SIDE-0001	RCO-1000 Series Side Mount Kit
3-VESA-0003	RCO-1000 Series VESA Mount Kit
3-DINR-0003	DIN-Rail Mount Kit

Packing List

• 1x RCO-1000 Series Embedded System
• 1x Utility DVD Driver
• 1x Wall Mount Kit
• 1x Accessory Kit
• 1x DVI to VGA Adapter
