Panorama Antennas GPSD-7-27

A one size fits all, shark fin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability.

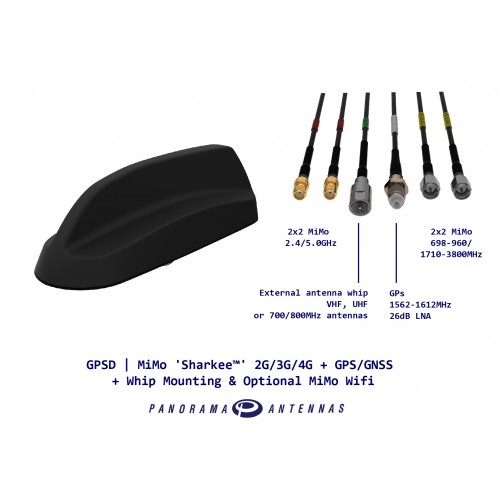

The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas.

A further version of GPSD is available that adds 2x2 MiMo antenna function for 2.4/5.8GHz WiFi.

The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle’s resale value.

SPECIFICATIONS

Electrical Data
LTE Frequencies	698-960/1710-3800MHz
Global Positioning	GPS / GNSS 1562-1612
Wifi Frequencies	MiMo - 2.4/5.0GHz - (Optional)
LTE MiMo	2x2
WiFi MiMo	Optional 2x2
Max Input Power (W)	50
Pattern	Omni-directional
Global Positioning Data
Frequency Range (MHz)	1562-1612
LNA Gain (dB)	26
Mechanical Data
Available Colours	Black
Length (mm)	172
Width (mm)	61
Height (mm)	50
Mounting Data
Mounting Type	Panel Mount
Mounting Method	18mm (3/4") Mounting Bush
Whip Mounting	M6x0.75
Approvals Data
IP Rating	IP66
Flame Retardancy	UN118.01 Compliant

Product Variants

Part Number	Whip Position	GPS/GNSS	Cellular / LTE	WiFi
GPSD-7-27	M6 x 0.75 stud	1562-1612MHz 26dB LNA	2x2MiMo: 698-960/1710-3800MHz	N/A
GPSD-7-27-24-58	M6 x 0.75 stud	1562-1612MHz 26dB LNA	2x2MiMo: 698-960/1710-3800MHz	2x2MiMo: 2.4/5.0GHz
