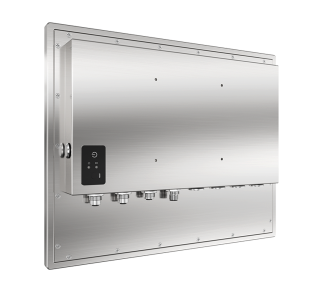

C&T Solution SIO-212C-J1900

The SIO series full system IP66/IP69K waterproof stainless steel Panel PC is Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature of -20°C to 60°C. Its IP69K protection makes the new monitor also suited for washdown applications like high-pressure cleaning.

Specification

Display


LCD Size
12.1" (4:3)

Max. Resolution
1024 x 768 (XGA)

Brightness (cd/m2)
(cd/m2) 600 / 1000 (Optional)

Contrast Ratio
1,000:1

LCD Color
16.2M

Pixel Pitch (mm)
0.24 (H) x 0.24 (V)

Viewing Angle (H-V)
178 / 178

Backlight MTBF
50000 hrs (LED Backlight)



Touch


Touch Type
Projected Capacitive Touch



System


Processor
Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz

System Chipset
SoC integrated

LAN Chipset
GbE1: Intel® I210-IT (Support Wake-on-LAN and PXE)
GbE2: Intel® I210-IT (Support Wake-on-LAN and PXE)

Audio Codec
Realtek ALC886

System Memory
4GB DDR3L SODIMM

BIOS
AMI uEFI 8Mbit SPI BIOS

Watchdog
Software Programmable Supports 1~255 sec. System Reset



Storage


mSATA
64GB mSATA SSD

SIM Socket
1x Internal SIM socket



Expansion


Mini PCI Express
1x Full-size Mini PCIe



I/O


COM
1x RS-232/422/485 by M12 A-Code 8-pin

USB
2x USB 2.0 by M12 A-code 8-pin

LAN
1x LAN by M12 X-Code 8-pin

Others
1x Additional RS-232/422/485 by M12 A-Code 8-pin
2x Additional USB 2.0 by M12 A-code 8-pin
1x Additional LAN by M12 X-Code 8-pin
2x WiFi Antenna



Other Features


OSD
Power On/Off, Reset



Operating System


Windows Windows
10, Windows 7, WES7

Linux
Linux kernel 3.X



Power


Power Mode
ATX

Power Supply Voltage
110 ~ 240V AC Input
Optional 12V DC Input

Power Connector
M12 A-code 4-pin

Power Adaptor
Optional AC/DC 12V/5A, 60W
Optional Waterproof Power Input Cable



Environment


Operating Temp.
-20°C to 60°C

Storage Temp.
-20°C to 70°C

Relative Humidity
10% to 80% (non-condensing)

Vibration
With SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis

Shock
With SSD: 20G, half sine, 11ms

IP Level
Full System IP66/IP69K

Standards / Certification
CE, FCC Class B



Physical


Front Panel Construction
Stainless Steel SUS316

Dimension
350 (W) x 285 (H) x 49.5 (D) mm

Weight
TBC

Mounting
VESA Mounting Holes 100 x 100mm
Optional Yoke Mount, Panel Mount

ORDERING INFORMATION

AVAILABLE MODELS



MODEL NO.	DESCRIPTION
SIO-212R-J1900	12.1" XGA Resistive Touch Stainless Steel Panel PC with Intel® Celeron® Processor J1900
SIO-212C-J1900	12.1" XGA Capacitive Touch Stainless Steel Panel PC with Intel® Celeron® Processor J1900
SIO-212HR-J1900	12.1" XGA HB 1000nits Resistive Touch Stainless Steel Panel PC with Intel® Celeron® Processor J1900
SIO-212HC-J1900	12.1" XGA HB 1000nits Capacitive Touch Stainless Steel Panel PC with Intel ® Celeron® Processor J1900




Accessoires



MODEL NO.	DESCRIPTION
1-TPWR00027	Waterproof AC Power Input M12 A-CODE 4P PWR Cable to Plug Type_US L=3M
1-TPWR00028	Waterproof AC Power Input M12 A-CODE 4P PWR Cable to Plug Type_EU L=3M
1-TUSB00034	Waterproof USB 2.0 Cable 3M
1-TCOM00019	Waterproof COM Cable 3M
1-TLAN00015	Waterproof LAN Cable 3M

PACKING LIST

• 1x SIO-212 Series Stainless Steel Panel PC
• 1x Utility DVD Driver
• 1x Waterproof Connector Cover Set
