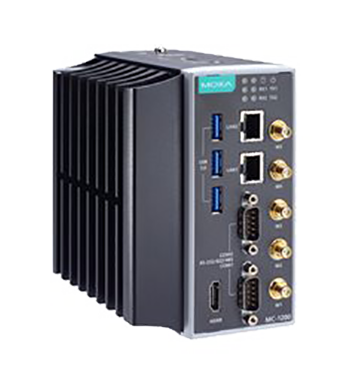

MOXA MC-1200 Series

The MC-1200 Series computers are built around a 7th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 1 HDMI display port, 3 USB 3.0 ports, 2 gigabit LAN ports, and 2 3-in-1 RS-232/422/485 serial ports. The MC-1200 is equipped with a 2.5” HDD/SSD slot and a built-in TPM 2.0 module.

Additional value and convenience is provided through a modular design with three independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 3G, LTE, GPS, and mSATA expansion modules.

With UL Class 1 Division 2, ATEX and IECEx Zone 2 compliance, the MC-1200 is sure to deliver stable and reliable system operation for oil and gas applications. Class 1 Division 2 (C1D2) is a certification issued to products that allow them to be used in potentially hazardous environments. Examples of hazardous work settings include locations where flammable or explosive gasses, certain chemicals, airborne fibers, or vapors could be excessive under abnormal circumstances.

Class 1 Division 2 (C1D2) certification indicates that a device is deemed safe to operate in specific hazardous environments under abnormal circumstances. This means that in a worst case scenario, the MC-1200 computer will not ignite the substances around it causing a fire, explosion, or other catastrophe.

The MC-1200 is designed to operate reliably in extreme conditions, such as continuous exposure to low or high temperatures, humidity, high vibration, and power surges, making them perfect for heavy industry, solar grid, water/wastewater, oil and gas, and transportation applications.


Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility that allows users to track a number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

SPECIFICATION

Computer


CPU
MC-1220-KL7-T-S: Intel® Core™ i7-7600U Processor (4M Cache, up to 3.90 GHz)
MC-1220-KL5-T-S: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)
MC-1220-KL1-T-S: Intel® Celeron® Processor 3965U (2M Cache, 2.20 GHz)
MC-1220-KL5-T: Intel® Core™ i5-7300U Processor (3M Cache, up to 3.50 GHz)

Storage Slot
mSATA slots x 1, SATA 3.0, internal mini-PCIe socket

System Memory Slot
SODIMM DDR4 slot x 2, up to 32 GB max.

Supported OS
Linux Debian 9, 64-bit, kernel 4.9 (optional via CTOS)
Windows 10 Enterprise LTSC 1809 64-bit (optional via CTOS)

Graphics Controller
MC-1220-KL7-T-S: Intel® HD Graphics 620
MC-1220-KL5-T-S: Intel® HD Graphics 620
MC-1220-KL1-T-S: Intel® HD Graphics 610
MC-1220-KL5-T: Intel® HD Graphics 620



Computer Interface


Video Input
HDMI x 1, up to 3840 x 2160 resolution at 30 Hz

USB 3.0
USB 3.0 hosts x 3, type-A connectors

Buttons
Reset button



Serial Interface


Connector
DB9 male

Serial Standards
RS-232/422/485 (software selectable)

Serial Ports
2 x RS-232/422/485

Flow Control
RTS/CTS, XON/XOFF

Baudrate
50 bps to 115.2 kbps

ESD Protection
4 kV contact, 8 kV air



Ethernet Interface


Magnetic Isolation Protection
1.5 kV (built-in)

10/100/1000BaseT(X) Ports (RJ45 connector)
2



LED Indicators


System
Power x 1

Serial
2 per port (Tx, Rx)



Serial Signals


RS-232
TxD, RxD, RTS, CTS, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND



Physical Characteristics


Installation
Wall mounting (with optional kit), DIN-rail mounting

Housing
Metal

Dimensions
134 x 60.4 x 120 mm
(5.28 x 2.38 x 4.72 in)

Weight
Product only: 1.40 kg (0.63 lb)



Declaration


Green Product
RoHS, CRoHS, WEEE



Power Parameters


Power Button
ON/OFF (rear panel)
Reset button

Input Voltage
9 to 36 VDC



Environmental Limits


Storage Temperature
-40 to 75°C (-40 to 185°F)

Operating Temperature
-40 to 70°C (-40 to 158°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Shock
IEC 60068-2-27



Standards and Certifications


Safety
UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1

EMC
EN 55032/35, CISPR 32, FCC Part 15B Class A



Reliability


Alert Tools
Built-in RTC (real-time clock) with lithium battery backup
