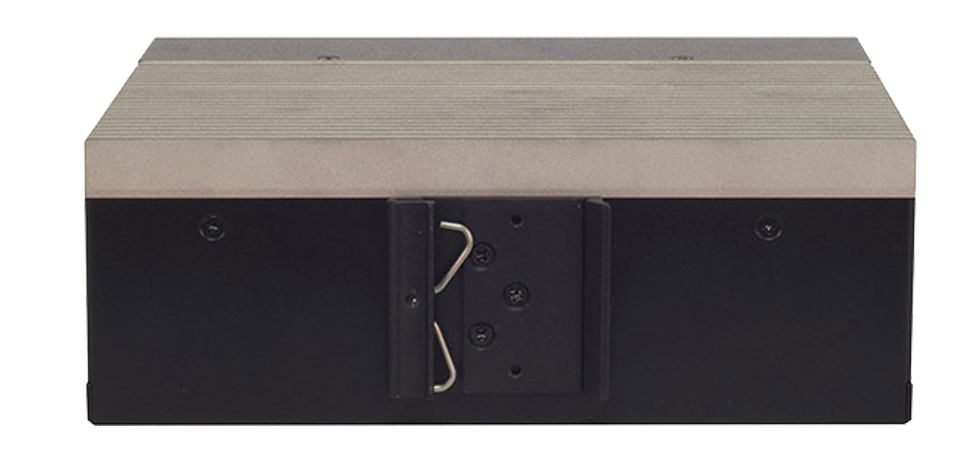

Lanner LEC-6041

Lanner’s LEC-6041, being the successor of LEC-6021, is designed to protect the communication in both IT and OT domains. LEC-6041 Series is empowered by Intel Atom x7-E3950 or x5-E3930 for low power consumption and high processing performance. As a rugged firewall deployed in challenging environments, LEC-6041 comes with IEC 61850-3 and IEEE 1613 certification, as well as 1.5 KV magnetic isolation protections for LAN port and 15KV ESD Protection for I/O ports. The system can operate in a wide range of operating temperature from -40°C to 70°C. All of the hardware designs assure that the security gateway LEC-6041 will never have downtime while operating in hazardous surroundings such as OT environment.

Specifications

Platform
CPU	Intel Atom x7-E3950 or x5-E3930
Chipset	SoC
BIOS	AMI SPI Flash BIOS
Memory Technology	DDR3L, 1866 MHz
Memory Capacity	8 GB
Memory Socket	1 x 204-pin SODIMM
Storage
SATA storage	1 x SATA connector with 2.5” drive bay (optional)
I/O
Ethernet controller	Intel i210
Graphic controller	Intel HD 505 Graphics
Default LAN	5 x RJ45 + 2 x SFP
Bypass	1 pair Bypass
Magnetic Isolation Protection	1.5 KV built-in
Serial ports	2 x RS-232, DB9 male
USB 3.0	2 x Type A
Power and Mechanical
Power input	Phoenix contact 6-pin connector with lock
Expansion	1x mini-PCIe with 1 SIM card for 4G LTE module (USB & PCIe signal)
Reset	Internal reset button
OS and Certifications
Operating System	Windows 10 PRO, Linux Kernel 4.X
Compliance	CE, FCC Class A, IEC 61850-3 compliance
Physical and Environmental
Storage temperature	-40°C to 85°C
Operating temperature	-40°C to 70°C
Operating humidity	5% to 95% (non-condensing)
Dimensions (W x H x D)	160 mm x 166 mm x 53.5 mm (6.30" x 6.54" x 2.11")
Weight	1.6 kg (3.52 lbs)
Watchdog	Watchdog timer 256 level time interval system reset, software programmable
Casing material	Aluminum + SGCC

Order Information

LEC-6041A	IEC 61850-3 Wide Temperature ICS Cyber Security Gateway with Intel Atom x5-E3930 processor
LEC-6041B	IEC 61850-3 Wide Temperature ICS Cyber Security Gateway with Intel Atom x7-E3950 processor
