Nexmosphere SM-100

ShopBus modules are specifically designed for two reasons; firstly, creating large systems where more interfaces are needed than one XM controller with connected EM modules can provide. And secondly; allowing large interspacing between several control units, when Elements are needed far apart from each other. The Shopbus architecture enables connecting multiple control units, with the possibility of using long cable lengths between the units. All the while, the interfacing towards the connected device can still take place through one serial connection.


X-talk

Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.


ShopBus

• Connect Shopbus modules as far as 25 meters away from the XM controller using the ShopBus interface -and cable.
• ShopBus cables are available with and without power feedthrough (with power feed-through = red, without = black)..
• Daisy-chain up to 8 ShopBus modules onto 1 XM controller.
• Additional power input possible on each ShopBus module for applications that require higher amounts of power..

Benefits

• Auto start-up and configuration for highly reliable standalone applications (24/7 operability).
• Create large-size setups that can be controlled through one single serial connection using the X-script API.
• Combine any of the ShopBus module and XM modules to make an exact fit for your application.

Thermal specifications

Operating temperature:
+10’C...+40’C
+50’F ... +104’F

Storage temperature:
-20’C...+50’C
-4’F ... +122’F

Cooling:
Passive cooling (no moving parts)

Electrical specifications

Operating voltage:
5VDC
LPS power adapter (2.0A)or
powered via ShopBus-In socket (max 1.0A)

Max. system current:
2.0A

Power consumption:
0.2A

Max. output per X-talk interface:
500mA @5VDC

Max. output on ShopBus Out interf.:
1.0A @ 5VDC

Miscellaneous

• Robust housing with screw brackets for secure fixing
• Built-in magnets for easy mounting on metal surfaces
• Both horizontal and vertical mounting allowed
• Power LED

Mechanical dimensions

LxWxH:
94 x 76 x 36 mm

Screw fixation:
54 x 69,7 mm

Netto weight:
96g

Ordering information

Available Modules

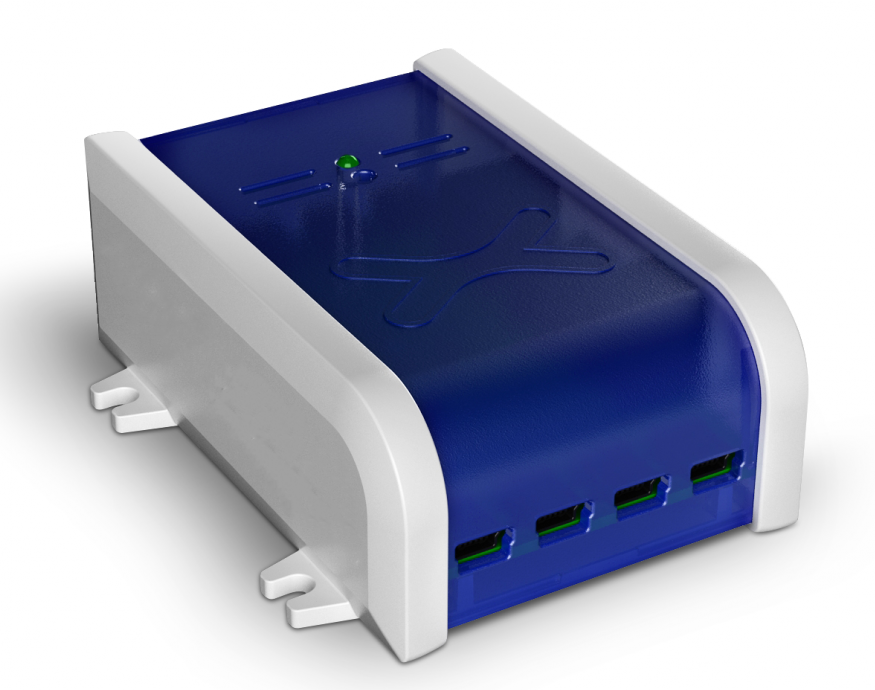

SM-100	ShopBus module, ShopBus interface, 8x X-talk interface
