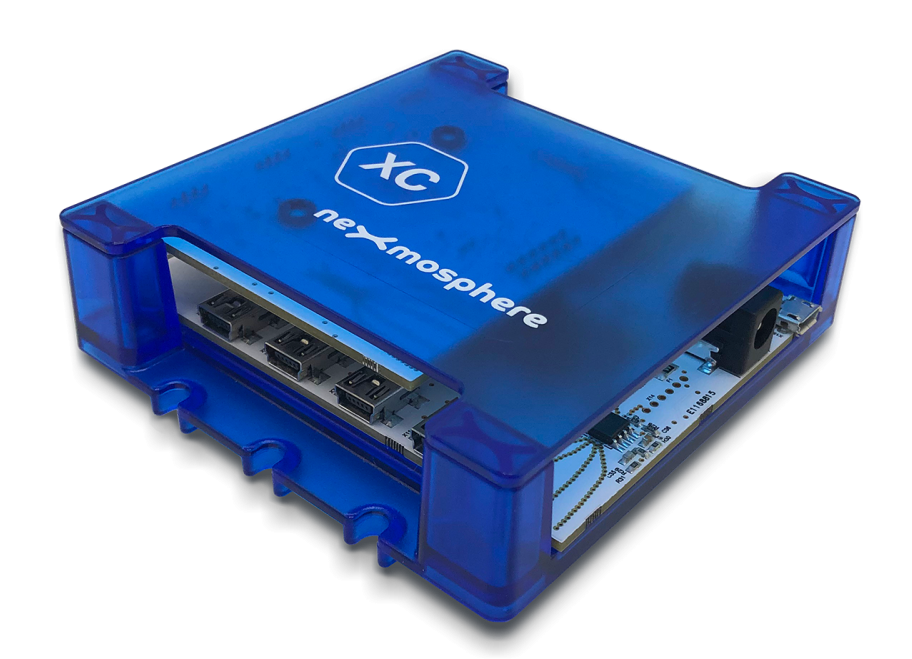

Nexmosphere XC-800 Series
COMPACT CONTROLLERS
- X-talk interface for easy sensor connection
- Dimmable RGBW LED output
- X-Wave interface for Pixel LED strips
The Nexmosphere XC range offers Xperience Controllers in a compact form factor while offering various onboard functionalities. Choose the right controller series based on the functionality needed, whether this is controlling multiple RGBW LED strips, pixel LED strips or (optical) audio switching. Combine this with Elements connected onto the X-talk channels to build your own unique experience.
The 800 series is equipped with fully dimmable RGBW LED outputs which allow connecting 12/24V LED strips. Transition smoothly between different colors and create just the right atmosphere with subtle lighting use in tailored RGBW LED colors.
X-talk interface
Connect a wide range of sensors, buttons, LEDs, or any other of the Nexmosphere Elements to create your unique shopper experience. Due to auto-configuration, no additional setup is required for seamless operation.
- Plug and smile interface
- Compatible with any of the Nexmosphere Elements
- Providing power to the connected Elements for easy system wiring
Dimmable RGBW LED output
The RGBW LED output allows connection and control of any standard 12-24V RGB(W) LED strip to illuminate large surfaces. All outputs are fully dimmable and allow smooth fading between the different intensities and colors.
- 12/24 VDC, 3A max per channel (comb. total output 4A max)
- Individually dimmable LED output (PWM/4096steps)
- JST connectors for easy “click-in”
USB Interface
The industry-standard USB interface allows 3rd party product interfacing. The Xperience controller manifests itself as a USB-to-Serial converter and is compatible with all mainstream operating systems and Digital Signage players.
Benefits
- Auto start-up and configuration for highly reliable applications (24/7 operability)
- Compact form factor for easy installation in or behind displays
- Control multiple Pixel LED strips from one single controller
- Compatible with all Nexmosphere Elements
SPECIFICATIONS
- Thermal specifications
- Robust compact housing with screw brackets for secure fixing
- Built-in magnets for easy mounting on metal surfaces
- Both horizontal and vertical mounting allowed
- Diagnostic LED indicating potential issues
- Status LED indicating power & input/output operations
- Operating temperature:
+10’C...+40’C
+50’F ... +104’F
Storage temperature:
-20’C...+50’C/
-4’F ... +122’F
Cooling:
Passive cooling (no moving parts)
Electrical specifications
- Operating voltage:
12-24VDC
LPS power adapter
Max. system current:
4.0A
Power consumption:
0.2A
Max. output per X-Wave interface:
2.0A @5V (= ±1.0A @12V = ±0.5A @24V)
Max. output per X-talk interface:
500mA @5V (= ±0.3A @12V = ±0.2A @24V)
Max. output per RGBW output
3.0A @ 12-24VDC
Serial communication specifications
- Baudrate:
115200
Data bits:
8
Parity:
None
Stop bits:
1
Flow control:
None
Protocol:
ASCII
EOL:
CR+LF
Mechanical dimensions
- LxWxH:
91 x 86 x 26 mm
Screw fixation:
20 / 40 x 85 mm
Netto weight:
120g
Miscellaneous
Ordering Information
Available Modules | |
XC-820 | Xperience controller, 2x RGBW LED output, 4x X-talk, USB |
XC-841 | Xperience controller, 4x RGBW LED output, 8x X-talk, USB |
XC-847 | Xperience controller, 2x X-Wave interface, 4x RGBW LED output, 4x X-talk, USB |
XC-860 | Xperience controller, 6x RGBW LED output, 4x X-talk, USB |
