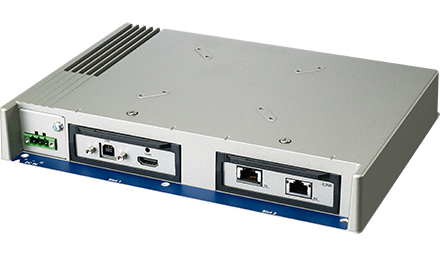

Advantech FPM-B700

The FPM series of modular industrial monitors extend the functionality of typical industrial monitors. The flexible modularized design allowed users to change the video interface according to their usage demands. Additionally, unlike traditional industrial touch monitors that can only support controllers in a one-to-one capacity, the FPM series monitors can support two controllers simultaneously. Moreover, with the inclusion of Picture-in-Picture (PiP) technology, users can easily change the display layout and switch between units that need operating. The FPM-7002 model also supports Advantech’s iLINK technology, a long-distance data transmission solution. This technology is designed to resolve issues of touch signal degradation. The provision of pre-installed Wi-Fi and NFC antennas is another feature that allows users to flexibly configure the monitor systems.

Product Specifications

General


Mounting
Panel, wall, desktop, VESA arm

Certifications
BSMI, CCC, CE, FCC Class A, UL

Enclosure
Front panel: Die-cast Magnesium alloy, Rear cover: SECC

Video Port
Fully customizable via I/O

Power Input Voltage
Phoenix Jack: 24 VDC input

OSD(onscreen display)
OSD control on front-facing iKey



Environment


Waterproof
Front panel is IP66

Operating Temperature
0 ~ 55°C (32 ~ 131°F)

Storage Temperature
-20 ~ 60° C (-4 ~ 140° F)
