NETIO RM - Series
Metal brackets
beskrivelse
beskrivelse

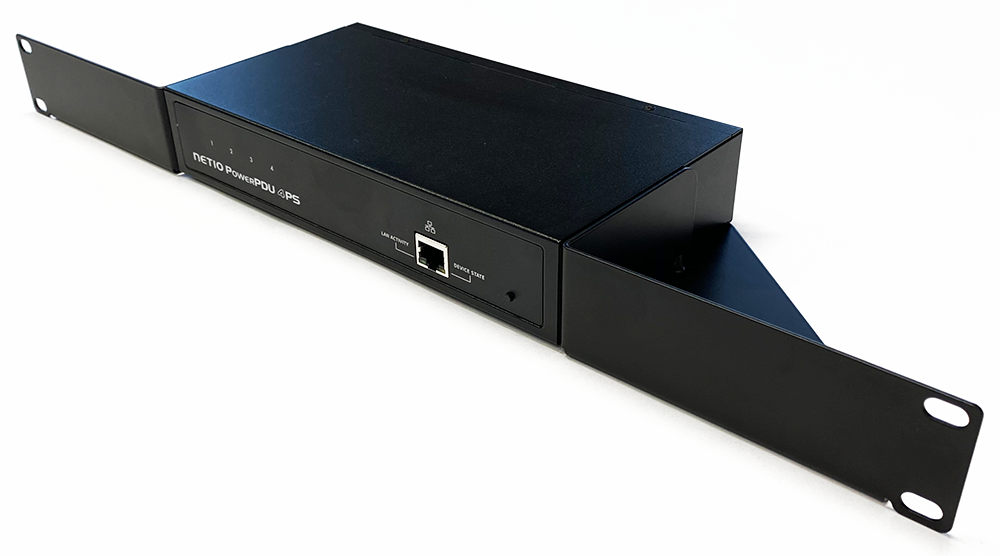

NETIO RM1 4C
- Metal brackets to install one Power PDU 4C or PowerPDU 4PS device into a 1U space in a 19” rack frame.
The package includes M6 screws to fasten the device in the 1U position.
NETIO PowerPDU 4C or 4PS device can be installed with the 110/230V supply connectors at the front or at the back.
The preferred placement is to have the 1 + 4 power connectors at the back and make the control buttons and LEDs accessible to the user from the front.

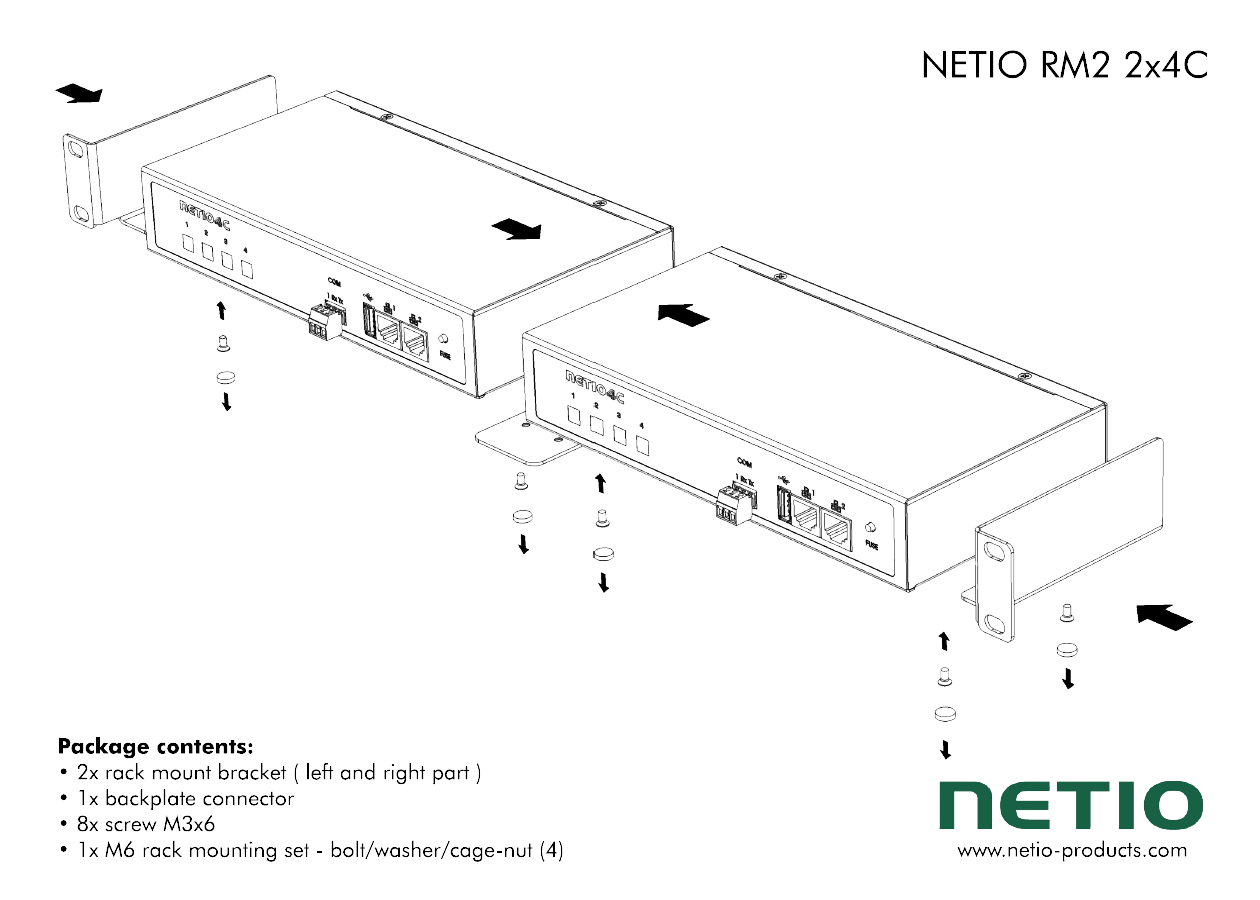

NETIO RM2 2x4C
- Metal brackets to install two pieces of PowerPDU 4C or PowerPDU 4PS devices into a 1U space in a 19” rack frame.
The package includes M6 screws to fasten the devices in the 1U position.
The PowerPDU 4C / 4PS devices can be installed with the 110/230V supply connectors at the front or at the back – both devices facing the same way.
The preferred placement is to have the power connectors at the back to make the control buttons and LEDs accessible to the user from the front.

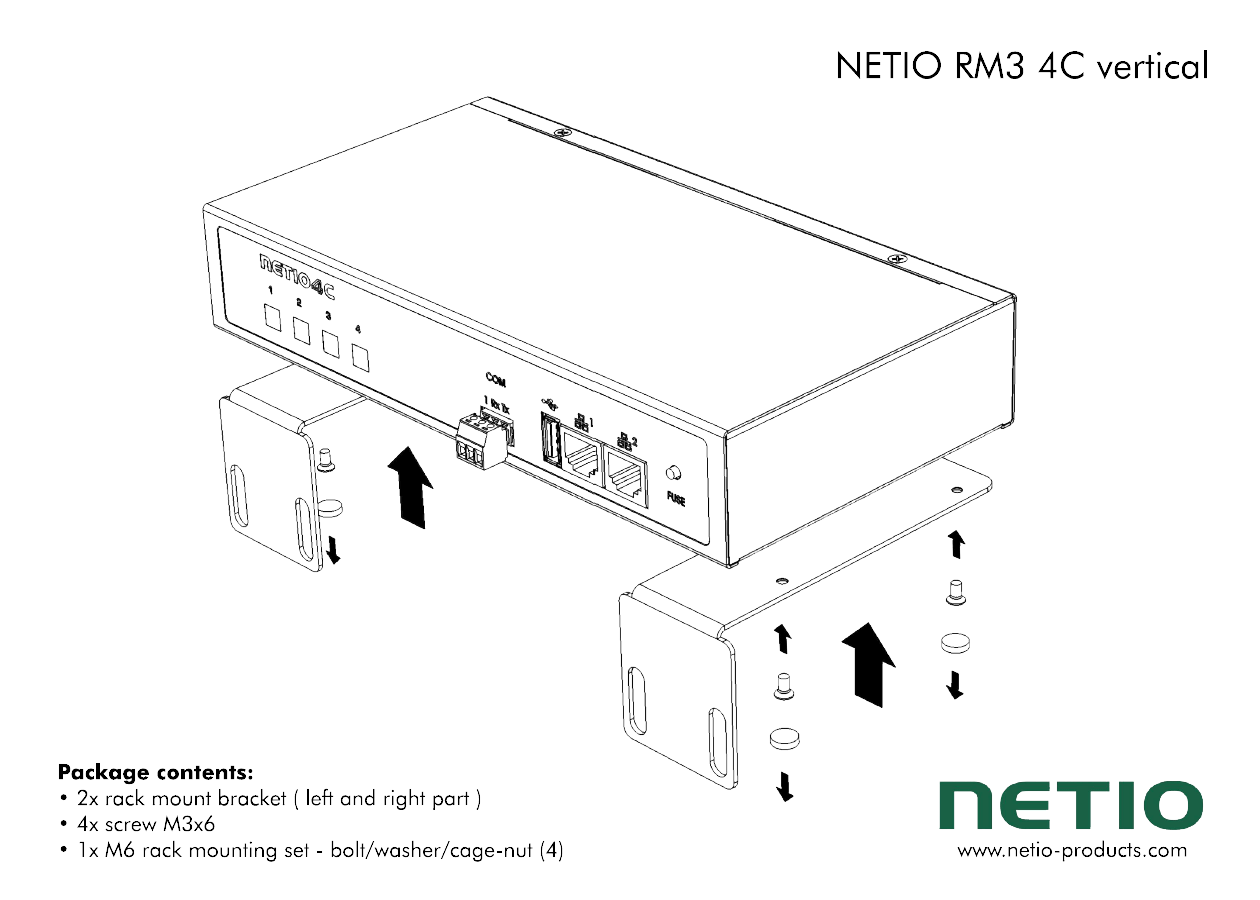

NETIO RM3 4C vertical
- Metal brackets to fasten one NETIO PowerPDU device (PowerPDU 4C or 4PS) to a vertical bar in a rack frame.
In a 76cm or wider cabinet, the PowerPDU 4C/4PS can be fastened to the outer side of the vertical bars to occupy zero U space.
The package includes M6 screws to fasten the device to the rack frame.
NETIO RM4 4C universal
- Universal metal brackets to fasten one PowerPDU 4C or PowerPDU 4PS device e.g. to horizontal bars in a rack frame.
The package includes M6 screws to fasten the device to the rack frame.
NETIO RM5 N4
- A metal bracket to fasten one NETIO 4 or NETIO 4All device to a vertical bar in a rack frame. In a 80cm or wider cabinet, the NETIO 4 / 4All can be fastened to the outer side of the vertical bars to occupy zero U space.
The NETIO 4 / 4All device is attached to the metal bracket using two plastic pieces that fit the wall-mount holes.
The plastic pieces are already attached to the bracket.
The package includes M6 screws to fasten the device to the rack frame.
