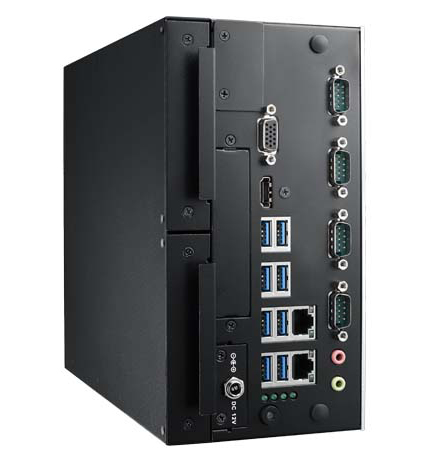

Advantech ARK-3530L

ARK-3000 series features high performance computing Intel Core i and Xeon, mini PCIe expansion cards, multi IO expansions, and wide temperature range, being ideal for automation system, machine automation, factory automation, IoT platforms, and cabinet integration.

Specifications

Processor System



CPU	E3-1235L V5	i7-7700/i7-6700	i5-7500/i5-6500	i3-7101E
Frequency	2.0GHz	3.6GHz/3.4GHz	3.4GHz/3.2GHz	3.9GHz
L3 Cache	8MB	8MB	6MB	3MB
TDP	25W	65W	65W	54W



Chipset
C236

BIOS
AMI EFI 128Mbit



Memory


Technology
DDR4 2133 MHz

Max. Capacity
32 GB

Socket
2 x 260-pin SO-DIMM



Graphics


Chipset
Intel® HD Graphics 630

Graphic Engine
Direct x 12, OpenGL 4.4
HW Encode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, JPEG/MJPEG and VP8.
HW Decode: H.265/HEVC, H.264/MPEG-4 AVC, MPEG-2, VC-1/WMV9, JPEG/MJPEG, VP8 and VP9

VGA
1920x1200@ 60Hz

HDMI
1 HDMI port, HDMI 2.0 for HD video playback, 3840x2160@30Hz

Optional 3rd Display module
DVI-D / DP / HDMI Display Port

Triple Display
VGA+HDMI + 3rd display module



Ethernet


LAN 1
10/100/1000 Mbps Intel I219-LM GbE, support Wake On Lan

LAN2
10/100/1000 Mbps Intel I210 GbE, support Wake On Lan



Audio


Interface
Realtek ALC888S, High Definition Audio, Line-out, Mic-in



Others


Watch dog Timer
255-level timer interval, setup by software

TPM
TPM 2.0 (Optional by project support)



I/O Interface


Serial Port
4 x RS-232/422/485 port with auto flow control;
COM 1 support 5V/12V power supply (by jumper)

USB
8 x USB 3.0 ports

P/S2
1 Port support by cable and bracket (Optional)

Optional I/O
16bit DIO or 2 x RS-232 ports



Expansions


Mini PCIe
2 x Full-size Mini PCIe
(2 x support mSATA, 1 x support SIM holder #1)

M.2
1 x E key for WiFi module #1

i Door
1 set (Optional)

ARK Plus
AMO-3505E 2 slot Riser card for 2 x PCI,
AMO-3506E 2 slot Riser card for 2 x PCIex8,
AMO-3507 1 slot PCIex16+Fan kit



Storage


HDD
2 x 2.5" SATAIII HDD Bay with Max Height 15mm
(support Intel SW RAID up to 4 x 2.5" SATAIII HDD bays by optional 2*AMK-A0028E)

mSATA
2 x mSATA socket (Share with Mini PCIe)



Software Support


Microsoft Windows
Windows 10 (Windows 7 for 6th Gen CPU only)

Linux
By Project Support



Power Requirements


Power Type
AT/ATX

Power Input Voltage
12V (9-36V as optional)

Power Adapter
AC to DC, 150W (Optional)



Power Consumption(CPU/Memory Only)


Typical
25.68W

Max-
88.92W



Mechanical


Construction
Aluminum housing

Mounting
Desk mounting

Dimensions (W x H x D)
105 x 205 x 230 mm
(4.13" x 8.07" x 9.06")

Weight
5.1Kg



Environment


Operating Temperature
25W/35W/65W(only 6th Gen)
Processor with extended temp peripherals: -20 ~ 60° C with 0.7m/s air flow
Under 73W processor with HDD: 0 ~ 40° C with 0.7m/s air flow

Storage Temperature
-40 ~ 85° C

Relative Humidity
95% @ 40° C (non-condensing)

Vibration During Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

EMC
CE/FCC Class B, CCC, BSMI

Safety
CB(62368), UL(62368), CCC, BSMI

#1 SIM holder and M.2 slot are hardware interfaces for wireless communication integration only.
System level RF certification is not available.
