TERZ NITE-RW Full Gigabit Ethernet Series
Unmanaged Industrial Ethernet Switches RJ45
Full Gigabit Ethernet
- Flexible use with 24 VAC/VDC
- 9 kB Jumbo Frames Support
- Minimal installation depth 28 mm
- Inrush current limitation
- Temperature range -40 to +70°C
- Stable wall mounting
- Polarity protection
- PROFINET suitable

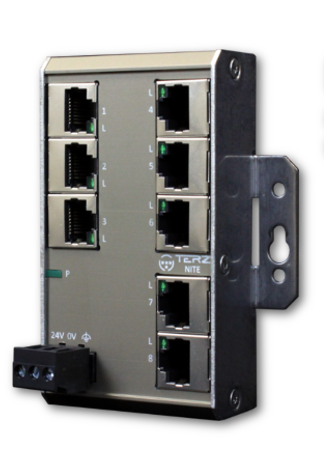

With an installation depth of only 28 mm and a height of 105 mm, the Industrial Ethernet switches impress with their extremely flat and high-quality aluminium housing. The ultra-compact switches can be used in any control cabinet thanks to the 24 VAC/VDC power supply with inrush current limiting and reverse polarity protection. Due to the reduced footprint and the arrangement of all connections on the front, switch cabinets and cabling can be optimized to reduce the costs. The wall mounting brackets made of metal, ensure a firm and secure hold. Like all TERZ Industrial Ethernet switches, the flat NITE-RW are available in two frame forwarding variants and fully suitable for PROFINET applications.
Specifications
- General
- Switch:
IEEE802.3 Store and Forward; non-blocking wire speed
Auto-Negotiation, Auto-MDI-X, Auto-Polarity:
Yes
Frame size:
9,216 Bytes Jumbo Frames
MAC table size:
2,000 addresses
Quality of Service:
Yes – 8 priority queues
Energy Efficient Ethernet:
No
Flow Control:
No
PROFINET suitable:
Yes
Port count (RJ45) | 5 | 8 |
MTBF (SN 29500, Mio. h) | 2,028 | 1,434 |
Frame Forwarding (Art.-No.) | xxxxx0 | xxxxx1 |
LLDP, PTCP Delay 01:80:C2:00:00:0E | Forwarding | Blocking |
RSTP BPDU 01:80:C2:00:00:00 | Forwarding | Forwarding |
Power supply / electronics
- Nominal voltage:
Vin 24 VAC 50/60 Hz / 24 VDC
Permitted voltage range:
12 to 28 VAC / 9 to 36 VDC
Connection type:
3-pole pluggable, screw connector (+ - FE)
Wire cross-section:
0.75 to 2.5 mm² (AWG 20 to 13)
Supply circuit:
SELV DIN 60950 (circuit breaker 10 A)
Inrush current limiter:
Yes
Input fuse:
Yes, Interrupting rating 50 A @ 125 VAC / VDC
Polarity protection:
Yes
PCB Conformal Coating:
No
Protection category:
III
Isolation:
0.75 kVDC; Vin ↔ Ethernet Ports | Vin ↔ housing
Port count (RJ45) | 5 | 8 | |
Power usage (W) Min | Max |
@24VDC @24VDC |
0,75 | 2,4 1,0 | 2,9 |
1,5 | 3,5 1,8 | 3,9 |
Input current (mA) Min | Max) |
@24VDC @24VDC |
35 | 100 70 | 200 |
60 | 145 120 | 290 |
Inrush current (A) | 16 | 16 |
Mechanical properties
- Housing material:
Anodised aluminium, stainless steel
Mounting:
M4 hole for wall mounting
IP Protection class (operation):
IP30
Port count (RJ45) | 5 | 8 |
Width (mm) | 69 | 85 |
Height (mm) | 105 | 105 |
Depth (mm) | 28 | 28 |
Weight (g) | 210 | 260 |
Ethernet Interfaces
- IEEE Standards:
802.3 10Base-T, 100Base-TX, 1000Base-T
Isolation:
0.75 kVDC; Ethernet Port ↔ housing | Port ↔ Port
Connection type:
RJ45
Port Count | Speed:
5,8 Ports | 10/100 Mbit/s
Cable length:
100 m (Twisted Pair, 0.14 mm² - 0.22 mm², Cat 5)
EMC and environmental specifications
- Operating temperature:
-40°C to 70°C
Storage temperature:
-40°C to 85°C
Relative humidity (operation):
0%-95% (not condensing)
Relative humidity (storage):
0%-95% (not condensing)
Atmospheric pressure (operation):
2,000 m (795 hPa)
EMC immunity:
DIN EN - 61000-6-2, 55024
EMC radiated emission:
DIN EN 61000-6-4, 55032
Mechanical stability:
DIN EN 61373
Approvals and certifications
- CE, DIN EN 60950-1, Listed UL 61010 (US/CA)
Status and diagnostic indicators
- LED:
Link/Activity/Speed per Port
ORDERING INFORMATION
Available Modules | ||
Article | Art.-No. | Specification |
NITE-RW5-2190 | 121490 | 5xRJ45, IP30, GE, 24 V |
NITE-RW8-2190 | 121690 | 8xRJ45, IP30, GE, 24 V |
NITE-RW5-2191 | 121491 | 5xRJ45, IP30, GE, 24 V, LLDP Blocking |
NITE-RW8-2191 | 121691 | 8xRJ45, IP30, GE, 24 V, LLDP Blocking |
