MOXA MGate 5119

The MGate 5119 is an industrial Ethernet gateway with 2 Ethernet ports and 1 RS-232/422/485 serial port. To integrate Modbus, IEC 60870-5-101, and IEC 60870-5-104 devices with an IEC 61850 MMS network, use the MGate 5119 as a Modbus master/client, IEC 60870-5-101/104 master, and DNP3 serial/TCP master to collect and exchange data with IEC 61850 MMS systems.


Easy Configuration via SCL Generator

The MGate 5119 as an IEC 61850 MMS server, typically, requires the import of a SCL file generated by a 3rd party tool. This can be time-consuming and increase costs. To overcome this pain point, MGate 5119 has a built-in SCL generator, which can easily generate SCL files through the web console and make them available almost immediately saving configuration time and cost.


Easy Troubleshooting via Traffic Monitor

MGate 5119 Series gateways support Modbus RTU/ASCII/TCP, IEC 60870-5-101, IEC 60870-5-104, and IEC 61850 MMS Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. It is worth mentioning that traffic logs can be viewed in the popular troubleshooting tool, Wireshark. With this feature, you can easily analyze traffic to determine the root cause of a problem.

Specifications

Ethernet Interface


10/100BaseT(X) Ports (RJ45 connector)
2
Auto MDI/MDI-X connection

Magnetic Isolation Protection
1.5 kV (built-in)



Ethernet Software Features


Industrial Protocols
Modbus TCP Client (Master), IEC 60870-5-104 Client, IEC 61850 MMS Server, DNP3 TCP Master

Configuration Options
Web Console (HTTP/HTTPS), Device Search Utility (DSU)

Management
ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP,Telnet, SSH, UDP, NTP Client

MIB
RFC1213, RFC1317

Time Management
NTP Client



Security Functions


Authentication
Local database

Encryption
HTTPS, AES-128, AES-256, SHA-256

Security Protocols
SNMPv3
SNMPv2c Trap
HTTPS (TLS 1.3)



Serial Interface


Console Port
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

No. of Ports
1

Connector
DB9 male

Serial Standards
RS-232/422/485

Baudrate
50 bps to 921.6 kbps

Data Bits
7, 8

Parity
Even, Mark, None, Odd, Space

Stop Bits
1, 2

Flow Control
RTS Toggle (RS-232 only), RTS/CTS

RS-485 Data Direction Control
ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485
120 ohms

Isolation
2 kV (built-in)



Serial Signals


RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND



Serial Software Features


Industrial Protocols
Modbus RTU/ASCII Master, IEC 60870-5-101 Master (Balanced/Unbalanced), DNP3 Serial Master



Modbus RTU/ASCII


Mode
Master

Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Commands
128



Modbus TCP


Mode
Client (Master)

Functions Supported
1, 2, 3, 4, 5, 6, 15, 16, 23

Max. No. of Server Connections
32

Max. No. of Commands
128



IEC 60870-5-104


Mode
Client

Objects Supported
Single point
Double point
Step position
Bit string of 32 bit
Measured value (normalized)
Measured value (scaled)
Measured value (floating)
Integrated totals

Max. No. of Server Connections
32

Max. No. of Information Objects
1200 points



IEC 60870-5-101


Mode
Master (Balanced/Unbalanced)

Objects Supported
Single point
Double point
Step position
Bit string of 32 bit
Measured value (normalized)
Measured value (scaled)
Measured value (floating)
Integrated totals

Max. No. of Slave Connections
1 (Balanced), 31 (Unbalanced)

Max. No. of Information Objects
1200 points



DNP3 Serial


Mode
Master

Objects Supported
Binary inputs
Analog inputs
Counters
Frozen counters
Binary outputs
Analog outputs

Max. No. of Outstation Connections
16

Max. No. of Objects
1200 points



DNP3 TCP


Mode
Master

Objects Supported
Binary inputs
Analog inputs
Counters
Frozen counters
Binary outputs
Analog outputs

Max. No. of Outstation Connections
16

Max. No. of Objects
1200 points



IEC 61850


Mode
MMS Server

Max. No. of Client Connections
16

Max. No. of Datasets
99

Max. No. of Reports
99

Max. No. of Data Objects
1200 points



Memory


No. of Data Points
Supported 1,200 points

microSD Slot
Up to 32 GB (SD 2.0 compatible)



Power Parameters


Input Voltage
12 to 48 VDC

Input Current
455 mA @ 12 VDC

Power Connector
Screw-fastened Euroblock terminal



Relays


Contact Current Rating
Resistive load: 2 A @ 30 VDC



Physical Characteristics


Housing
Metal

IP Rating
IP30

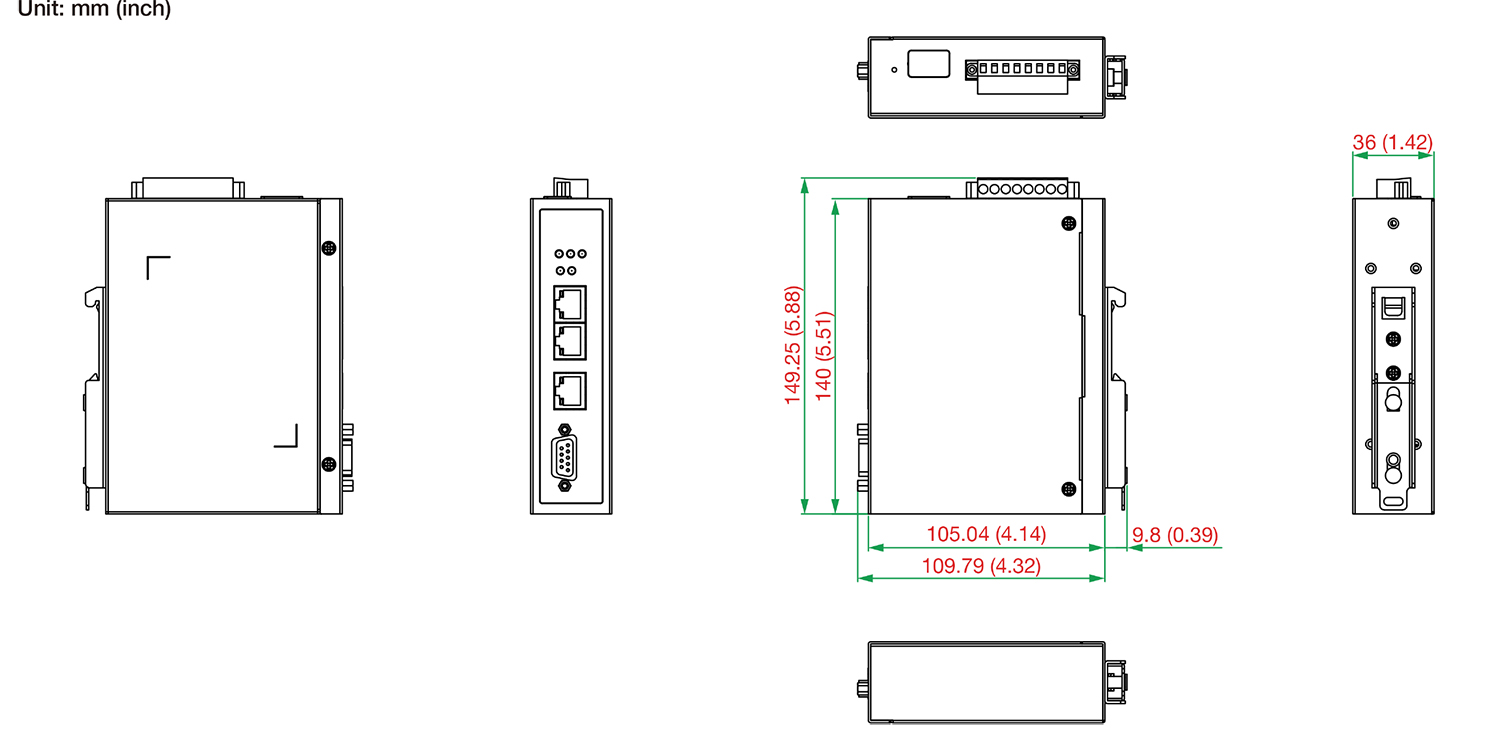

Dimensions
36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)

Weight
517 g (1.14 lb)



Environmental Limits


Operating Temperature
-40 to 75°C (-40 to 167°F)

Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)



Standards and Certifications


Safety
EN 60950-1, IEC 60950-1, IEC 62368-1, UL 60950-1, EN 62368-1, UL 62368-1

EMC
EN 55032/35

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
IEC 61000-4-6 CS: 10 V/m
IEC 61000-4-8 PFMF: 100 A/m

Freefall
IEC 60068-2-32

Shock
IEC 60068-2-27
IEC 61850-3 Edition 2.0

Power Substation
IEEE 1613, IEC 61850-3

Vibration
IEC 60068-2-6, IEC 60068-2-64, IEC 61850-3 Edition 2.0



MTBF


Time
1,180,203 hrs

Standards
Telcordia SR332

Package Contents

Device

1 x MGate 5119 Series gateway

Cable

1 x RJ45-to-DB9 console cable

Installation Kit

1 x DIN-rail kit

Documentation

1 x quick installation guide
1 x warranty card
