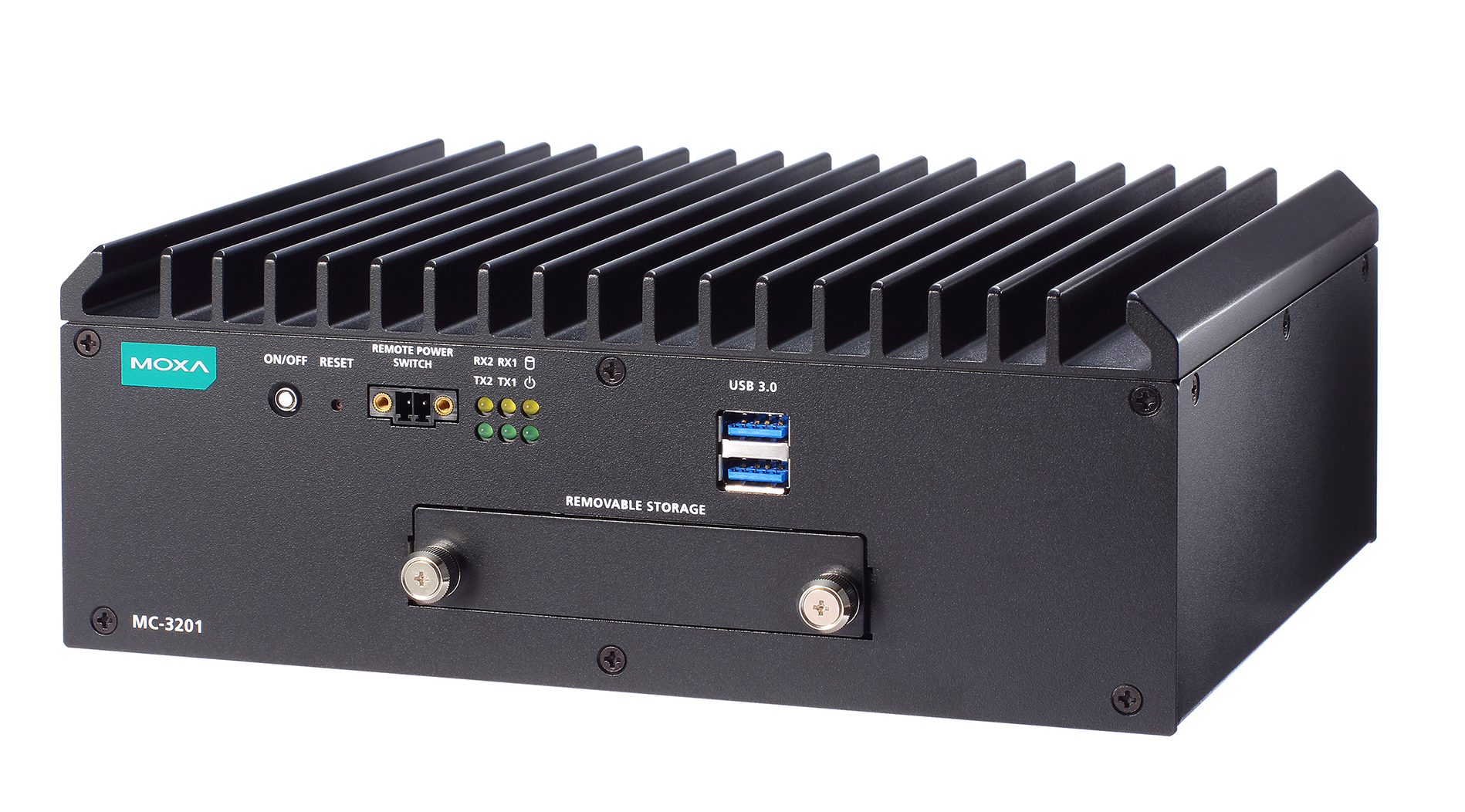

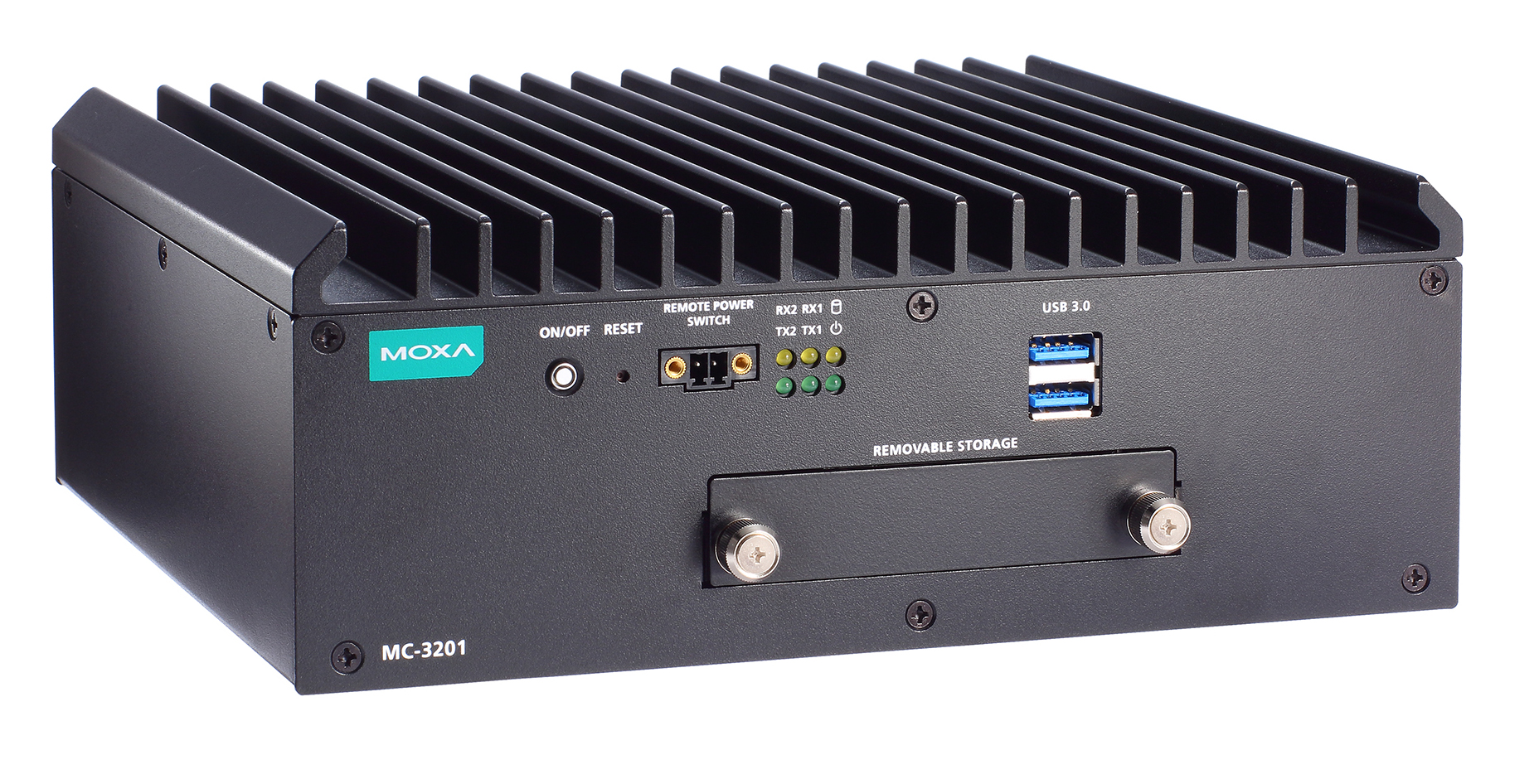

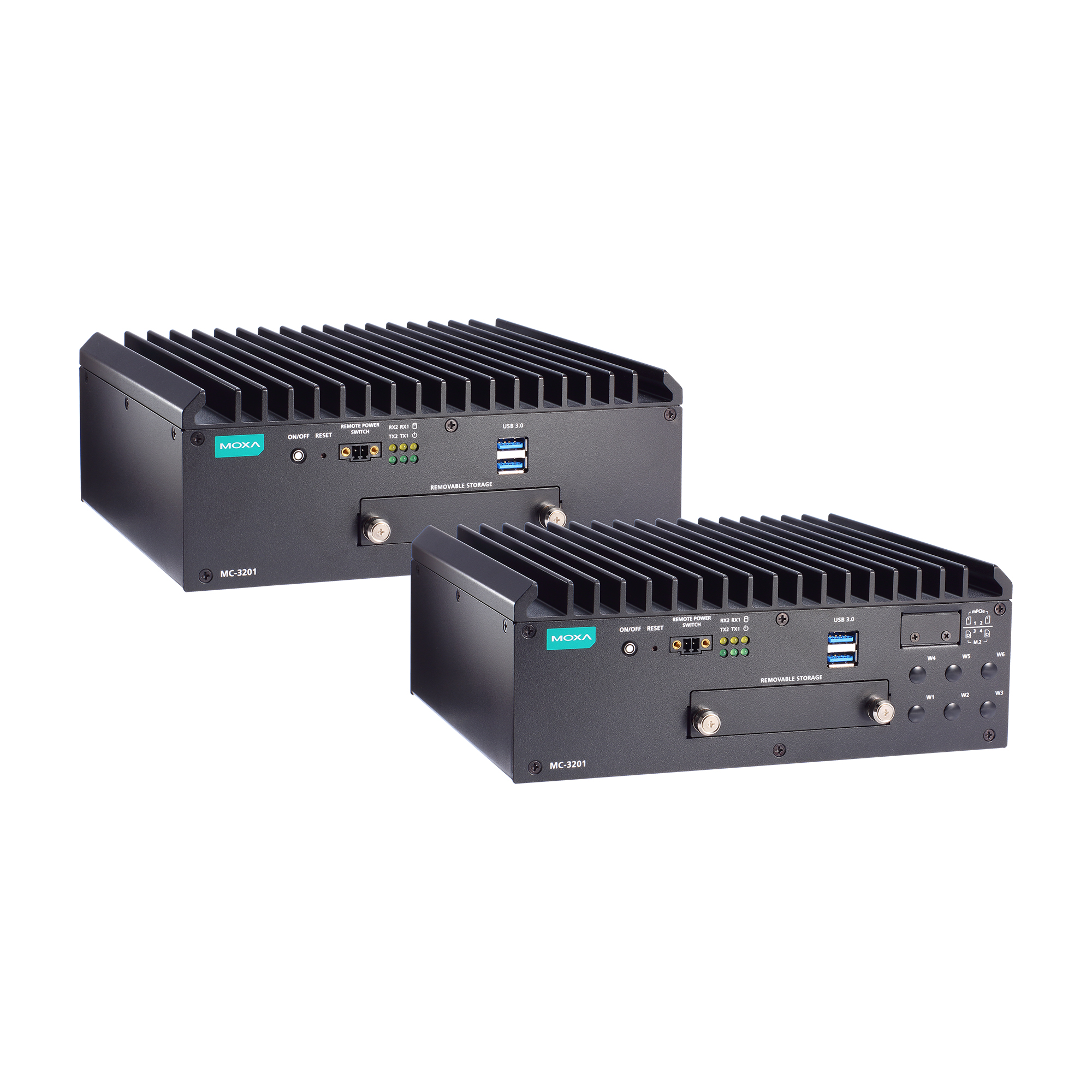

MOXA MC-3201 Series

The MC-3201 Series computers are built around a 11th Gen Intel® Celeron® or Intel® Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces, 2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports. The computers are also equipped with a 2.5-inch SSD/HDD slot and a built-in TPM 2.0 module.

Additional value and convenience are provided through a modular design with two independent slots for flexible system integration and expansion. Users have the option to add a variety of different communications modules, including Wi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion modules.

Compliance with the IEC-60945 and IACS E10 standards ensures the MC-3201 delivers stable and reliable system operations for marine and IIoT applications. These certifications are issued to indicate the suitability of product for use in marine applications.


Proactive Monitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly, easy-to-use utility available with some Moxa computers to track a number of system parameters. You can view the current values for key parts by simply clicking on the icons corresponding to the parameters in a Windows-based user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relays and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.

The Proactive Monitoring tool is currently available with the following:

• DA-820C Series
• DA-720 Series
• MC-1200 Series
• MC-3201 Series
• MC-7400 Series

Specifications

Computer


CPU
MC-3201-TGL7-M-S: Intel® Core™ i7-1185G7E processor (12M Cache, up to 1.8 GHz)
MC-3201-TGL1-S-S: Intel® Celeron® 6305E processor (8M Cache, up to 1.8 GHz)

Storage Slot
SSD slot x 1; SATA 3.0, internal mPCIe socket

System Memory Slot
SODIMM DDR4 2133 slot x 2, up to 32 GB max.

Supported OS
Linux Debian 11, 64-bit, kernel 5.10
Windows 10 Embedded IoT Ent 2019 LTSC 64-bit
(Both optional, available via CTOS)

Graphics Controller
Intel® Iris® Xe Graphics

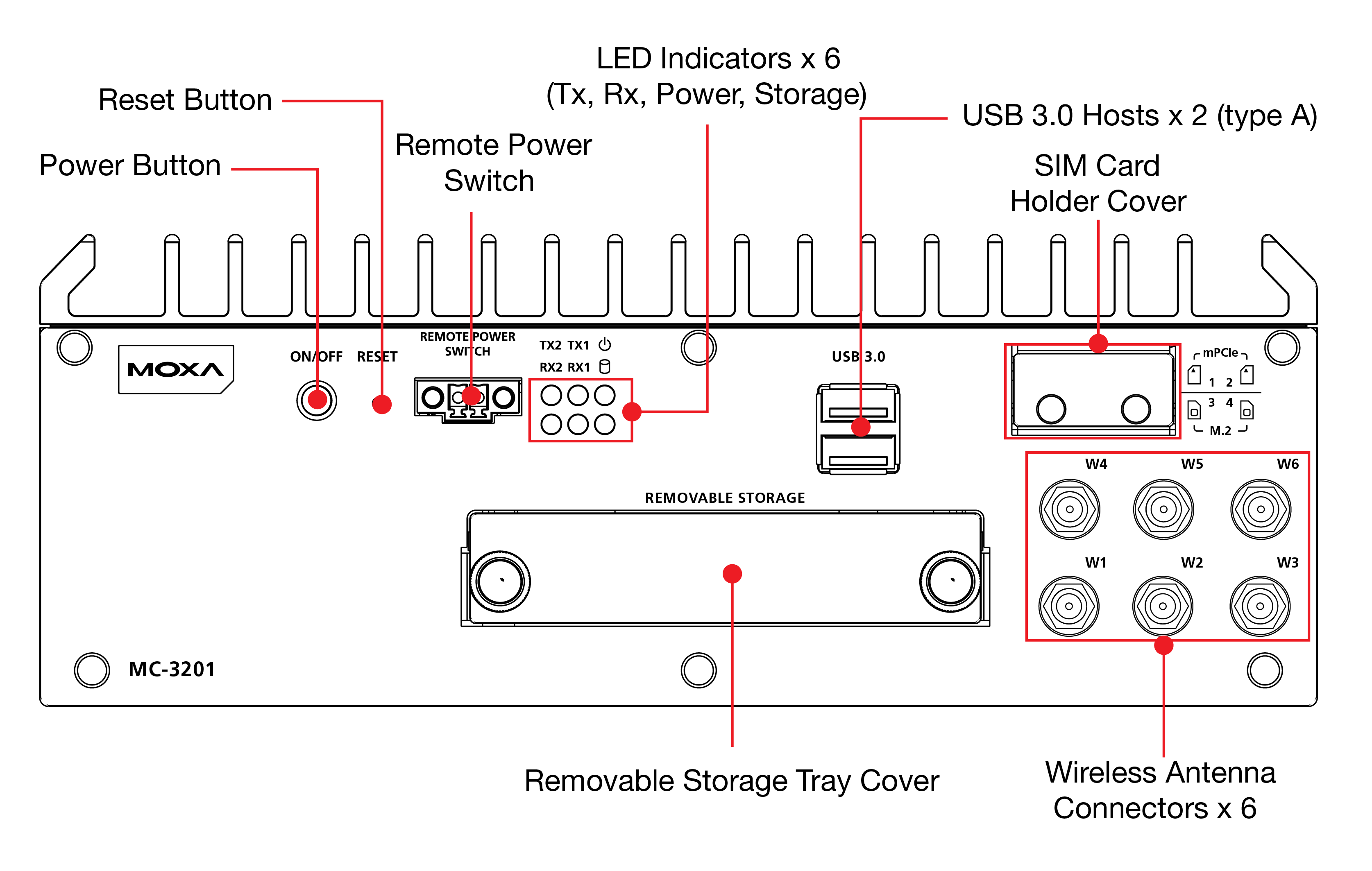

Computer Interface


Video Output
DisplayPort x 2
up to 3840 x 2160 resolution at 60 Hz

USB 3.0
USB 3.0 hosts x 2, type-A connectors

USB 2.0
USB 2.0 hosts x 4, type-A connectors

Buttons
Reset button



Serial Interface


Connector
DB9 male

Serial Standards
RS-232/422/485 (software selectable)

Serial Ports
2 x RS-232/422/485

Flow Control
RTS/CTS, XON/XOFF

Baudrate
50 bps to 115.2 kbps

ESD Protection
4 kV contact, 8 kV air



Ethernet Interface


Magnetic Isolation Protection
1.5 kV (built-in)

10/100/1000BaseT(X) Ports (RJ45 connector)
4



LED Indicators


System
Power x 1

Serial
2 per port (Tx, Rx)



Serial Signals


RS-232
TxD, RxD, RTS, CTS, GND

RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND

RS-422
Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w
Data+, Data-, GND



Physical Characteristics


Installation
Wall mounting

Housing
Metal

Dimensions
220 x 80 x 170 mm (8.66 x 3.15 x 6.69 in)

Weight
Product only: 1.40 kg (0.63 lb)



Declaration


Green Product
RoHS, CRoHS, WEEE



Power Parameters


Input Voltage
MC-3201-TGL7-M-S: 24 VDC
MC-3201-TGL1-S-S: 9 to 36 VDC

Power Button
ON/OFF (rear panel)
Reset button



Environmental Limits


Operating Temperature
-20 to 55°C (-4 to 131°F)

Storage Temperature
-30 to 60°C (-22 to 140°F)

Ambient Relative Humidity
5 to 95% (non-condensing)

Shock
IEC 60068-2-27



Standards and Certifications


EMC
EN 55032/35, CISPR 32, FCC Part 15B Class A

Hazardous Locations
IECEx Zone 2

Safety
UL 60950-1, UL 62368-1, EN 60950-1, EN 62368-1



Reliability


Alert Tools
Built-in RTC (real-time clock) with lithium battery backup



MTBF


Time
323,270 hrs

Standards
Telcordia (Bellcore) Standard TR/SR

Package Contents

Device
1 x MC-3201 Series computer

Installation Kit
1 x wall-mounting kit

Cable
1 x Power-jack-to-terminal-block cable

Documentation
1 x quick installation guide
1 x warranty card

Ordering Information

Model Name	CPU
MC-3201-TGL7-M-S	Intel®Core™i7-1185G7E
MC-3201-TGL1-S-S	Intel®Celeron® 6305E
