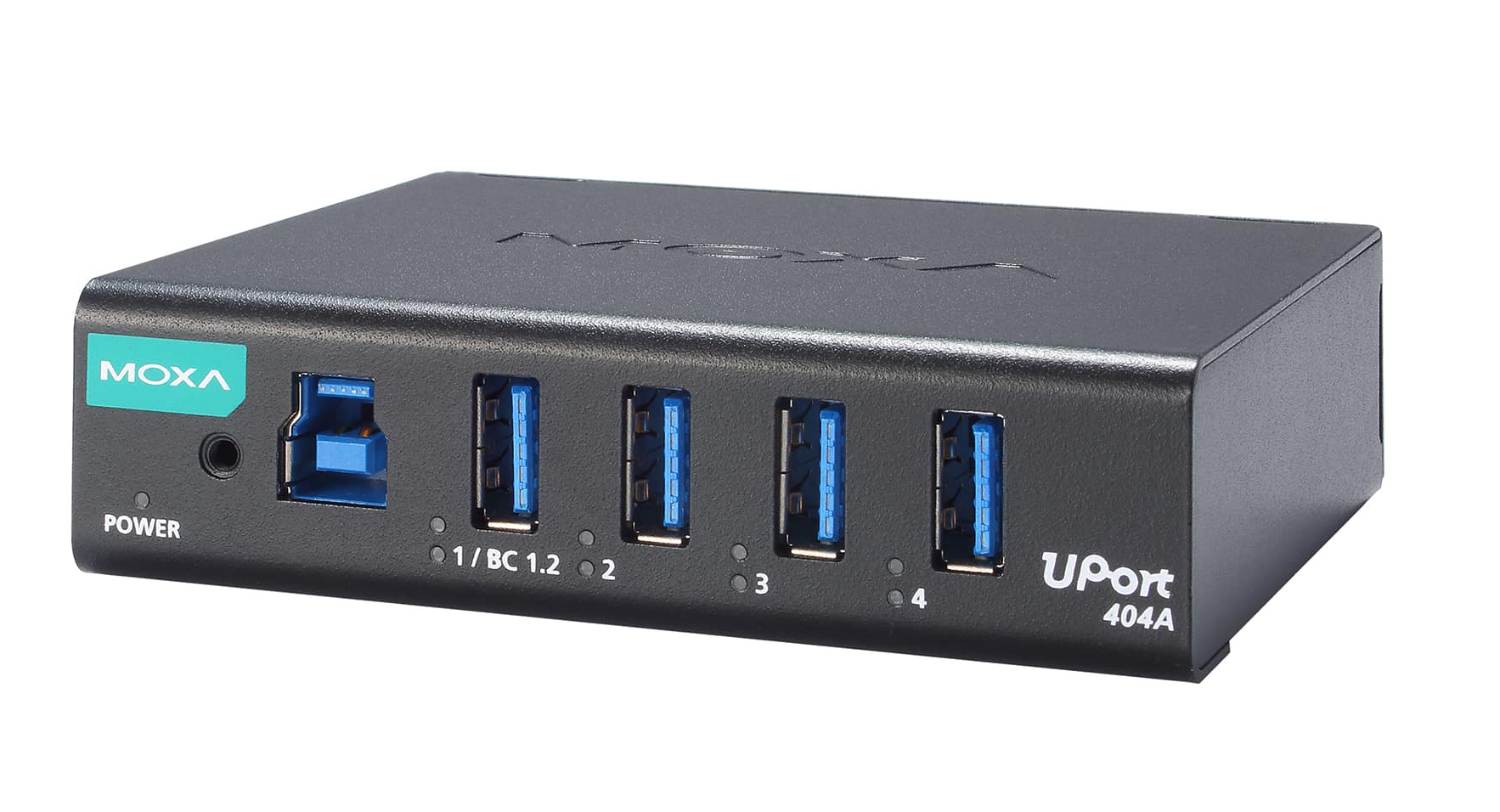

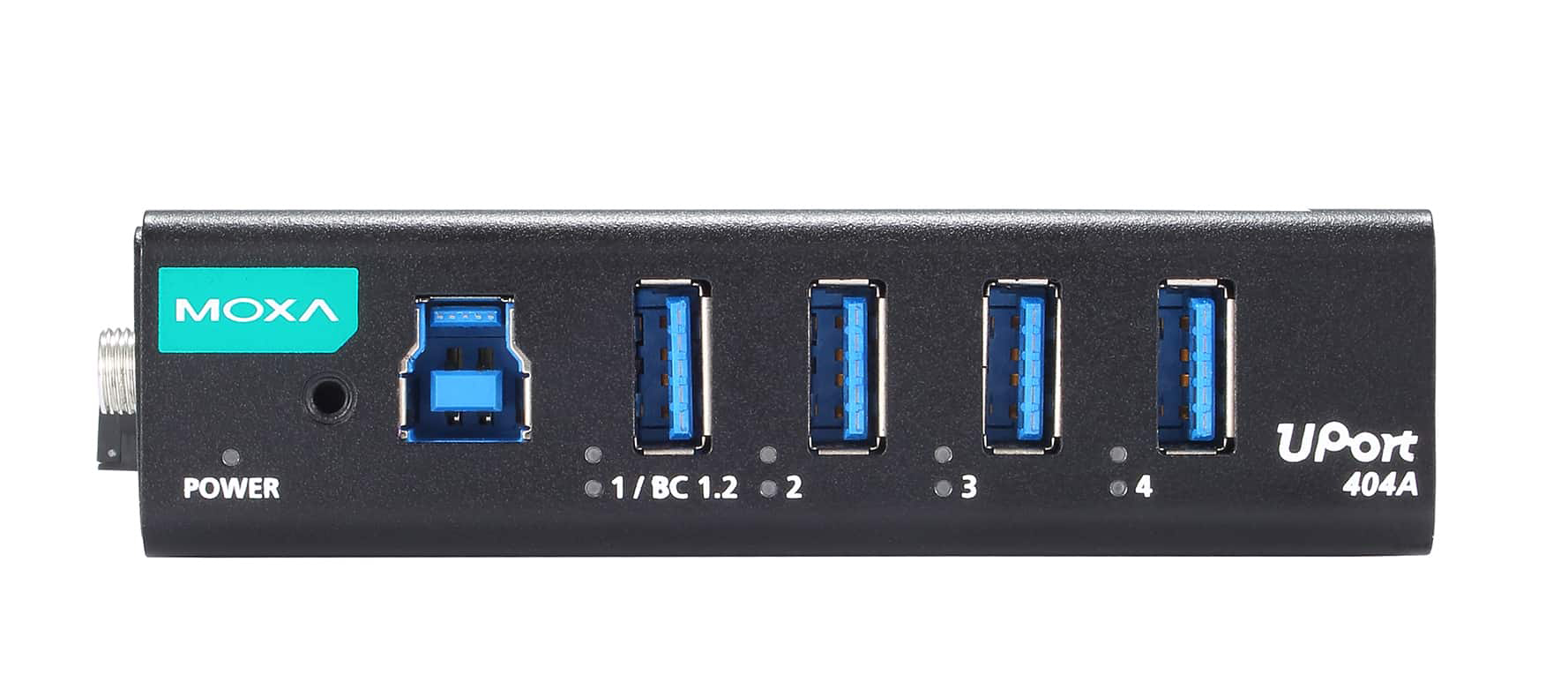

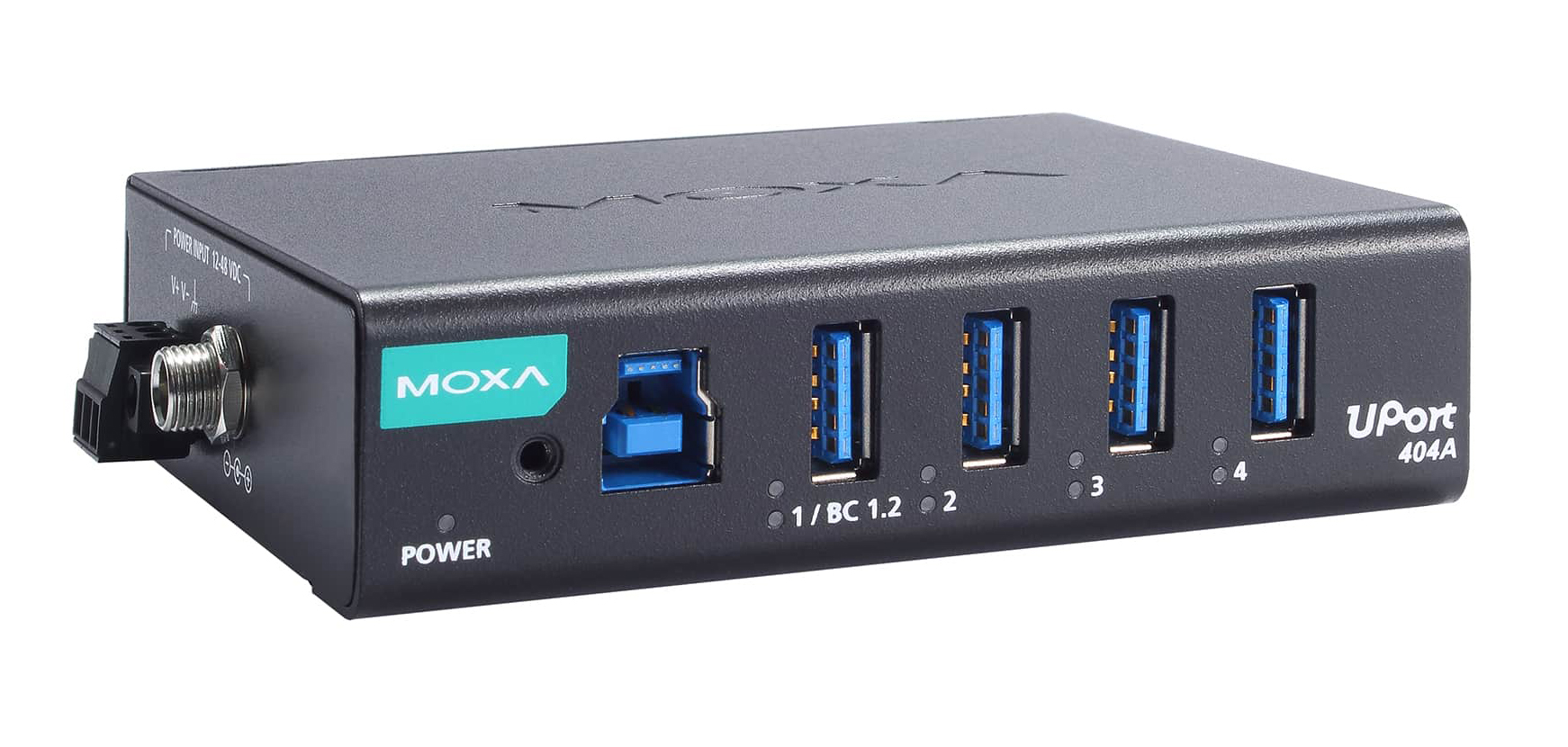

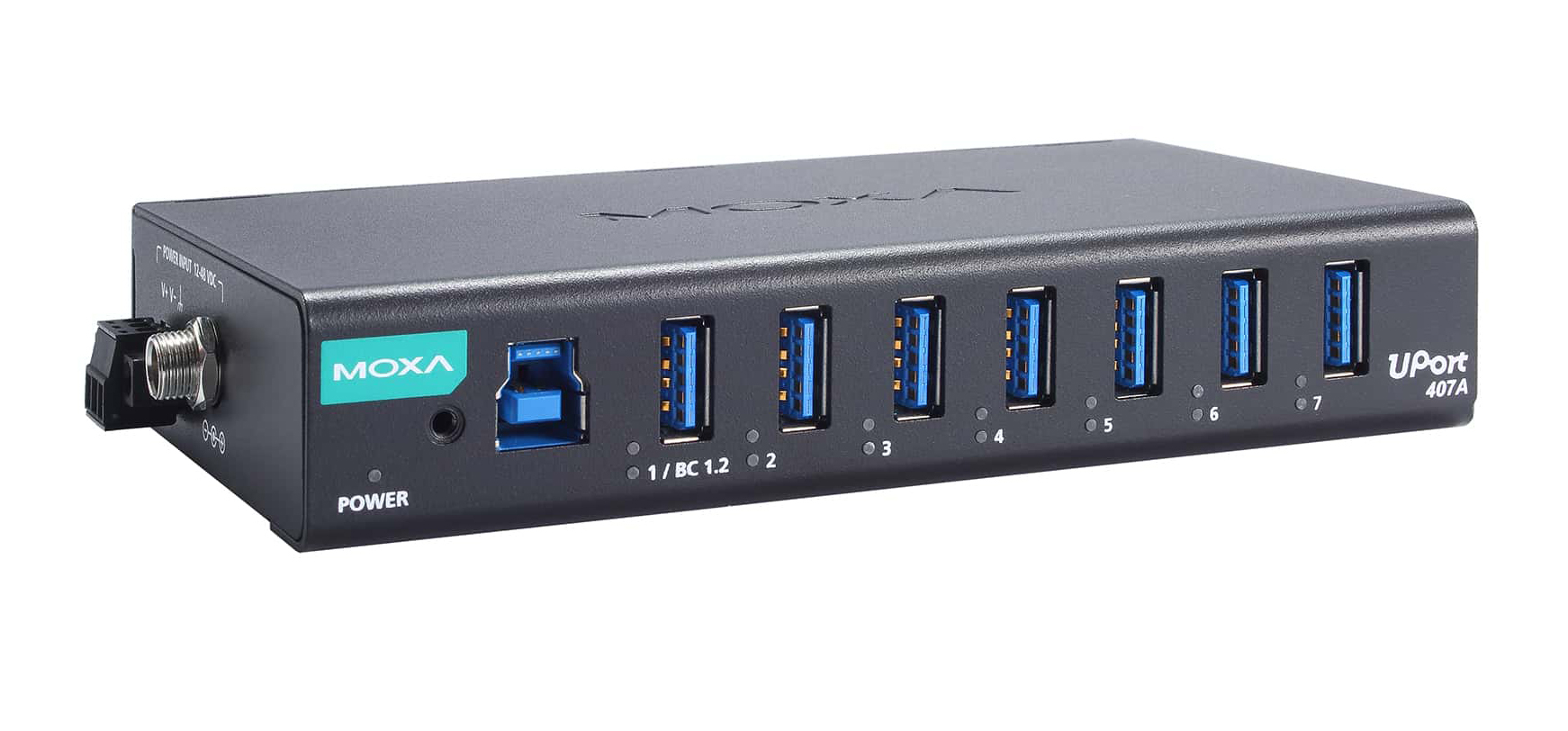

MOXA UPort 400A Series

The UPort® 400A Series industrial-grade USB 3.2 hubs can expand an USB port into 4 or 7 USB ports. The hubs are designed to provide true USB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through each port, even for heavy-load applications. The UPort® 400A has been awarded the USB-IF SuperSpeed certification, which is an indication that the product is a reliable high-quality USB 3.2 hub. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide full 900 mA power per port, ensuring that your USB devices function properly. The UPort® 400A hubs support a 12 to 48 VDC power range, which make them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification

The UPort® 404A USB 2.0 industrial-grade USB hubs have been awarded the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the SuperSpeed USB operation of USB hubs designed as per the USB 3.2/2.0 specification. This means that the UPort® 400A supports SuperSpeed USB 3.2 Gen 1 for up to 5 Gbps USB transmission, is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to SuperSpeed operation from the suspended state.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa?s UPort® 400A Series USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user?s end product.


USB Cable With a Firmer Connector

UPort® 400A comes with a USB cable that has a latch and screw lock for a more secure connection between the UPort and your computer.

Specifications

USB Interface


USB Standards
USB 3.2 Gen 1
USB 1.1/2.0 compliant

Speed
5 Gbps

USB Connector
UFP: type B
DFP: type A

No. of USB
Ports 8 (UFP: 1, DFP 7) for UPort 407A models
5 (UFP: 1, DFP 4) for UPort 404A models



Power Parameters


Input Voltage
12 to 48 VDC
No. of power inputs: 2

Power Connector
Power jack
3-pin terminal block

Reverse Polarity Protection
Supported

Input Current
UPort 407A Models: 4.75A @ 12 VDC
UPort 404A Models: 2.8A @ 12 VDC

Output Power Rating
Port 1: 900 mA / 1500 mA @ 5 VDC, BC 1.2 compliant
Rest of ports: 900 mA @ 5 VDC



Physical Characteristics


Housing
Metal

Dimensions
UPort 407A models: 80 x 27 x 140 mm (3.15 x 1.06 x 5.51 in)
UPort 404A models: 85 x 27 x 100 mm (3.35 x 1.06 x 3.94 in)

Weight
UPort 407A models: 350 g (0.77 lb)
UPort 404A models: 264 g (0.58 lb)

Installation
Wall mounting (with optional kit)
DIN-rail mounting (with optional kit)



Environmental Limits


Operating Temperature
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Storage Temperature (package included)
Standard Models: -20 to 75°C (-4 to 167°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F)

Ambient Relative Humidity
5 to 95% (non-condensing)



Standards and Certifications


EMC
EN 55032/35

EMI
CISPR 32, FCC Part 15B Class A

EMS
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m
IEC 61000-4-8 PFMF

Safety
EN 62368-1
UL 62368-1
KC

Environmental Testing
IEC 60068-2-1

Freefall
IEC 60068-2-34



Declaration


Green Product
RoHS, CRoHS, WEEE



MTBF


Standards
Telcordia (Bellcore), GB

Time
UPort 407A Models: 1,467,922 hours (minimum)
UPort 404A Models: 2,107,973 hours (minimum)



Package Contents


Device
1 x UPort 400A Series USB hub

Cable
1 x USB 3.2 Gen 1 type A male to USB type B male cable with latch and screw lock, 1.2 M

Power Supply
1 x power adapter, suitable for your region
(for standard temperature models only)

Installation Kit
1 x terminal block, 3-pin, 3.5 [TBD] mm
4 x rubber stand
1 x wall-mounting kit
6 x Nylok screw

Ordering Information

Model Name	USB Interface	No. of USB Ports	Housing	Operating Temp.	Power Adapter Included
UPort 407A	USB 3.2 Gen 1	7 downstream	Metal	0 to 60°C	Yes
UPort 407A-T	USB 3.2 Gen 1	7 downstream	Metal	-40 to 85°C	No
UPort 404A	USB 3.2 Gen 1	4 downstream	Metal	0 to 60°C	Yes
UPort 404A-T	USB 3.2 Gen 1	4 downstream	Metal	-40 to 85°C	No

Accessories (sold separately)

Power Adapters
PWR-12300-WPEU-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, EU plug, 0 to 40°C operating temperature Applicable Models: UPort 404A
PWR-12300-WPCN-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, CN plug, 0 to 40°C operating temperature Applicable Models: UPort 404A
PWR-12300-WPUSJP-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, US/JP plug, 0 to 40°C operating temperature Applicable Models: UPort 404A
PWR-12300-WPUK-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, UK plug, 0 to 40°C operating temperature Applicable Models: UPort 404A
PWR-12300-WPAU-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, AU plug, 0 to 40°C operating temperature Applicable Models: UPort 404A
PWR-12300-WPKR-S2	Locking barrel plug with 12 VDC, 3 A, 100 to 240 VAC, KR plug, 0 to 40°C operating temperature
PWR-Plug-EU-02	EU plug for PWR-12150-WPEU and PWR-12300-WPEU Applicable Models: UPort 404A
PWR-Plug-CN-02	CN plug for PWR-12150-WPCN and PWR-12300-WPCN Applicable Models: UPort 404A
PWR-Plug-USJP-02	US/JP plug for PWR-12150-WPUSJP and PWR-12300-WPUSJP Applicable Models: UPort 404A
PWR-Plug-UK-02	UK plug for PWR-12150-WPUK and PWR-12300-WPUK Applicable Models: UPort 404A
PWR-Plug-AU-03	AU plug for PWR-12300-WPAU Applicable Models: UPort 404A2
PWR-Plug-KR-02	KR plug for the PWR-12150-WPKR and the PWR-12300-WPKR Applicable Models: UPort 404A
PWR-12500-DT-S1	PWR-12500-DT-S1 Applicable Models: UPort 407A
Power Cords
PWC-C13EU-3B-183	Power cord with EU/KR plug, 1.83 m Applicable Models: UPort 407A
PWC-C13CN-3B-183	Power cord with three-prong CN plug, 1.83 m Applicable Models: UPort 407A
PWC-C13US-3B-183	Power cord with US plug, 1.83 m Applicable Models: UPort 407A
PWC-C13JP-3B-183	Power cord with JP plug plug, 7A/125V, 1.83 m Applicable Models: UPort 407A
PWC-C13UK-3B-183	Power cord with UK plug, 1.83 m Applicable Models: UPort 407A
PWC-C13AU-3B-183	Power cord with AU plug, 1.83 m Applicable Models: UPort 407A
DIN-Rail Mounting Kits
DK-UP-42A	DIN-rail mounting kit for the UPort 400A/200A Series, 107 x 29 mm (4.21 x 1.14 in), with 4 M3 x 5 mm screws
Wall-Mounting Kits
WK-UP400A-BAK-BK	Rear-panel wall-mounting kit for the UPort 400A, 60 x 27 x 2 mm (2.36 x 1.06 x 0.08 in), with 2 plates and 6 M3 x 5 mm screws
WK-UP400A-BOT-BK	Bottom-panel wall-mounting kit for the UPort 400A Series, 43 x 30 x 2 mm (1.69 x 1.18 x 0.08 in), with 2 plates and 6 M3 x 5 mm screws
