Advantech PPC-112W
11.6" All-in-One Panel PC with Rockchip 3399 processor and Android 10 OS
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- True flat wide display screen with Pcap multi-touch
- Embedded Rockchip 3399 processor, Dual-core Cortex-A72 up to 1.8GHz and Quad-core Cortex-A53 up to 1.4GHz
- Onboard 2GB LPDDR4-1333 memory, 16GB eMMC NAND Flash
- IP65 rated front panel protection
- Supports VESA 100 and panel mounting(optional)
- Supports Linux or Android 10 pre-installed
PPC-112W is 11.6" All-in-One PPC with Rockchip 3399 processor and Android 10 OS pre-installed.
Featuring 11.6" wide screen display and 10 points Pcap multi-touch, IP65 rated front panel, VESA or panel mounting support, PPC-112W provides friendly experience and reliable integration possibility.
Specifications
- System
- CPU
Rockchip RK3399
Big.Little architecture: Dual Cortex-A72 + Quad Cortex-A53, 64-bit CPU
GPU
Mali-T860
Memory
On-board 2GB LPDDR4-1333
Network
(LAN) 1 x 10/100/1000 Mbps Ethernet (RTL8211FSI)

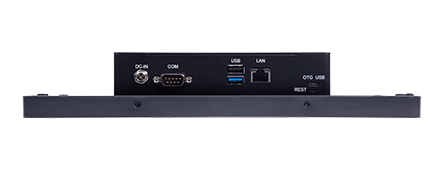

I/O ports
1 x USB 2.0; 1 x USB 3.0; 2 x USB 2.0 (internal by request)
1x mirco USB OTG
1 x RS 232; 1 x RS232 (internal by request)
1 x DC in
5 x GPIO (by request) (3.3V TTL level)
Expansion
1 x M.2 2230 Key E slot for wireless card
1 x Camera (by request)
Watchdog Timer
Max timeout: 21s, Default timeout: 10s
General
- Storage
16GB eMMC NAND Flash; 1x Micro SD slot (Max.128G)
Input Voltage
12VDC, 36W adapter
OS
Android 10 (default), Debian 9 (optional)
Weight
1.78kg
Dimensions
291.7 x 186.6 x 49.2 mm
Mounting
VESA 100,Panel mounting (optional)
Display
- Size
11.6" Panel
Resolution
1366 x 768
Viewing Angle
45 (left), 45 (right), 20 (up),40 (down)
Brightness
250
Contrast Ratio
500
Backlight Lifetime
15,000 hrs (Min.)
Touch screen
- Type
Projected Capacitive Multi-touch
Light Transmission
≥ 88%
Interface
USB
Environment
- Operating Temperature
0 ~ 50°C
Storage Temperature
-20 ~ 60°C
Humidity
10 ~ 95% @ 40°C (non-condensing)
Shock Operating
10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Operating
Random Vibration Test 5~500Hz, 0.5Grms , follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI
Safety
CB, UL, CCC, BSMI, UKCA
Front panel
IP65 compliant
Ordering Information
| Part Number | Description |
|---|---|
| PPC-112W-PK91A | 11.6" All-in-one Panel PC with Rockchip RK3399 and Android, 2GB LPDDR4, assembled in China |
| PPC-112W-PK91AU | 11.6" All-in-one Panel PC with Rockchip RK3399 and Android, 2GB LPDDR4, assembled in Taiwan |
| PPC-ARM-A03 | ARM VESA Standard (A-CLEVER) for PPC series |
| PPC-174T-WL-MTE | Wall mount kit for PPC series |
| 98R3P112W00 | Panel mount kit for PPC-112W |
| 98R3P115W10 | Wifi module for PPC-115W |
| PPC-Stand-A1E | Stand for PPC series |
| 1700001524 | Power cord 3P UL 10A 125V 1.8M |
| 170203183C | Power cord 3P Europe (WS-010+083) 183cm |
| 1700008921 | Power cord 3P/3P 1.8M PSE |
| 96CB-POWER-B-1.8MB | Power code 3P CCC(China) 1.8M |
| 96PSA-A36W12W7-5 | ADP A/D 100-240V 36W 12V C6 LOCK DC JACK 62368 |
