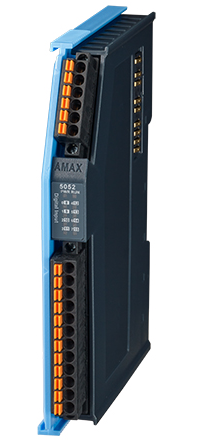

Advantech AMAX-5052
16-ch Digital Input EtherCAT Slice IO Module
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Channels:16
- Digital Input;Dry Contact;Logic level 1: close to Iso.GND;Logic level 0: open;Wet Contact;Rated voltage: 24VDC;Logic level 1: 10~30 VDC;and -10~-30 VDC;Logic level 0: -3~3 VDC
- Input Delay:From logic level 0 to 1: 4ms;From logic level 1 to 0: 4ms
- Digital Filter: 3ms
The AMAX-5000 digital I/O modules are equipped with 8 or 16 isolated digital input / output channels.
16-ch Digital Input EtherCAT Slice IO Module
Specifications
- General
- Certification
CE, FCC class A
Connector
Pluggable 6P+12P push-in terminal (#28~16 AWG)
Enclosure
PC
Power Consumption
2W@24V DC
Protocol
EtherCAT
Transmission Rate
100Mbps
LED Indicator
PWR, RUN, DI status
Digital Input
- Channels
16
Digital Input
Dry Contact
Logic level 1: close to Iso.GND
Logic level 0: open
Wet Contact
Rated voltage: 24V DC
Logic level 1: 10~30 VDCand -10~-30 VDC
Logic level 0: -3~3 VDC
Input Delay
From logic level 0 to 1: 4ms
From logic level 1 to 0: 4ms
Digital Filter
3ms
Input Impedance
6.8 kΩ (wet contact)
Protection
- Isolation Voltage
2,000 V DC
Environment
- Operation Temperature
-25~60°C (vertical mounted)
Storage Temperature
-40~85°C
Relative Humidity
95% (non-condense)
Ordering Information
| Part Number | Description |
|---|---|
| AMAX-5052 | 16-ch Digital Input EtherCAT Slice IO Module |
