NETIO PowerCable 2PZ

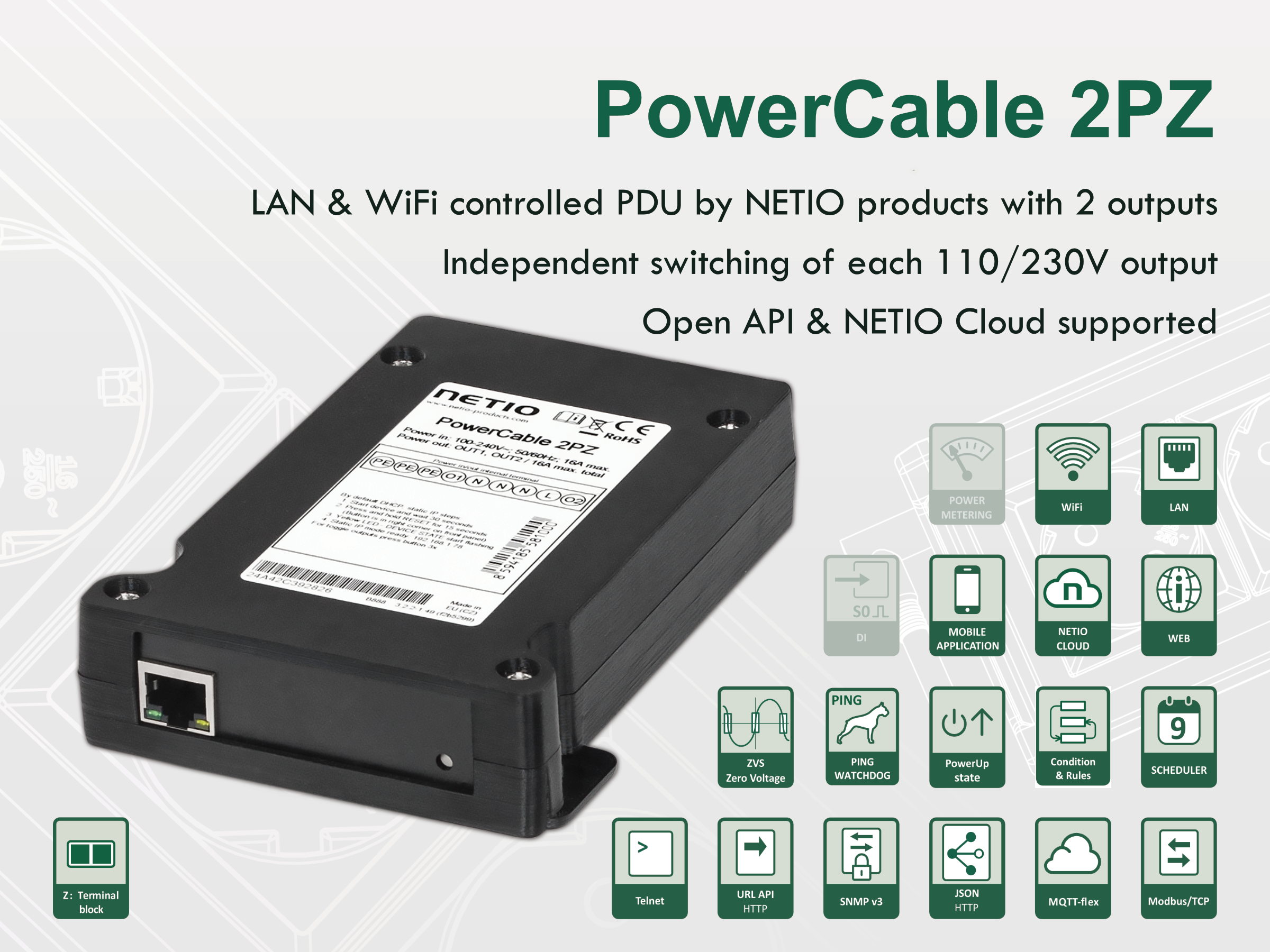

PowerCable 2PZ is flat PDU (Power Distribution Unit) with dual power output. It's LAN or WiFi connected PDU for remote power control (remote restarting) of TV, screens, multimedia playesrs or other AV or IT devices. There are 2 power outputs (110/230V max 16A) available on terminal blocks.

NETIO PowerCable 2PZ is flat PDU (Power Distribution Unit) with LAN connectivity using a RJ45 (Ethernet) or WiFi. Both power outputs can be individually switched On/Off (restarted) on the device website, from Mobile App or NETIO Cloud (web service).

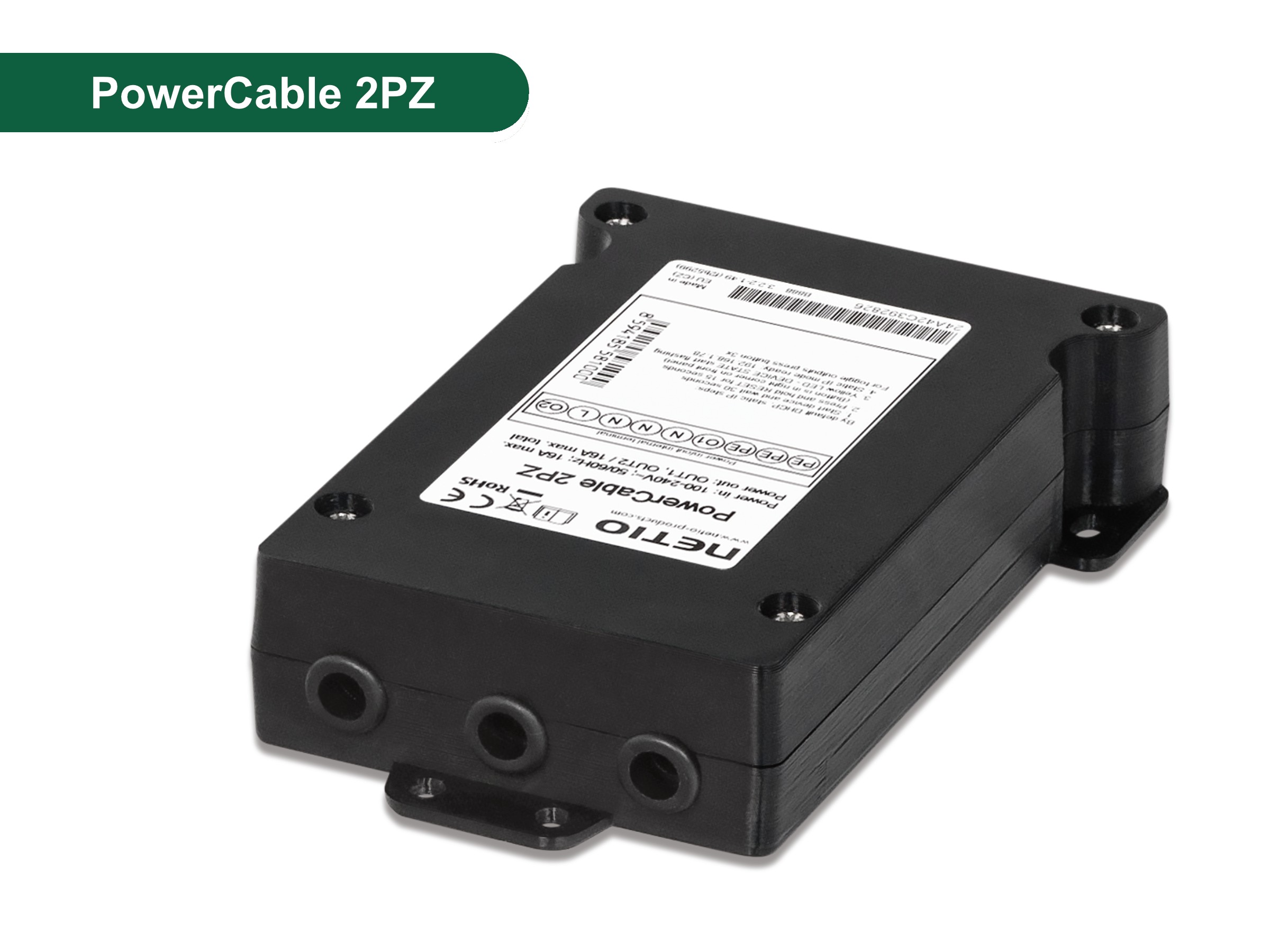

PowerCable 2PZ we call "flat PDU" because can be installed behind TV, under double ceiling or to similar limited space. PowerCable 2PZ is delivered without power cables, user have to install power input and 1 or 2 power output cables to the terminal block inside plastic housing with using screw driver.

PowerCable 2PZ PDU supports Ping WatchDog and week-based Scheduler feature.

Open API enables integration into third-party systems using a wide range of protocols (JSON, Modbus/TCP, XML, SNMP, MQTT, Telnet, ..). With the NETIO Cloud service, the output(s) can be switched On/Off from anywhere. The NETIO Cloud service, provided for a fee, uses SSL/TLS security and servers in Europe.

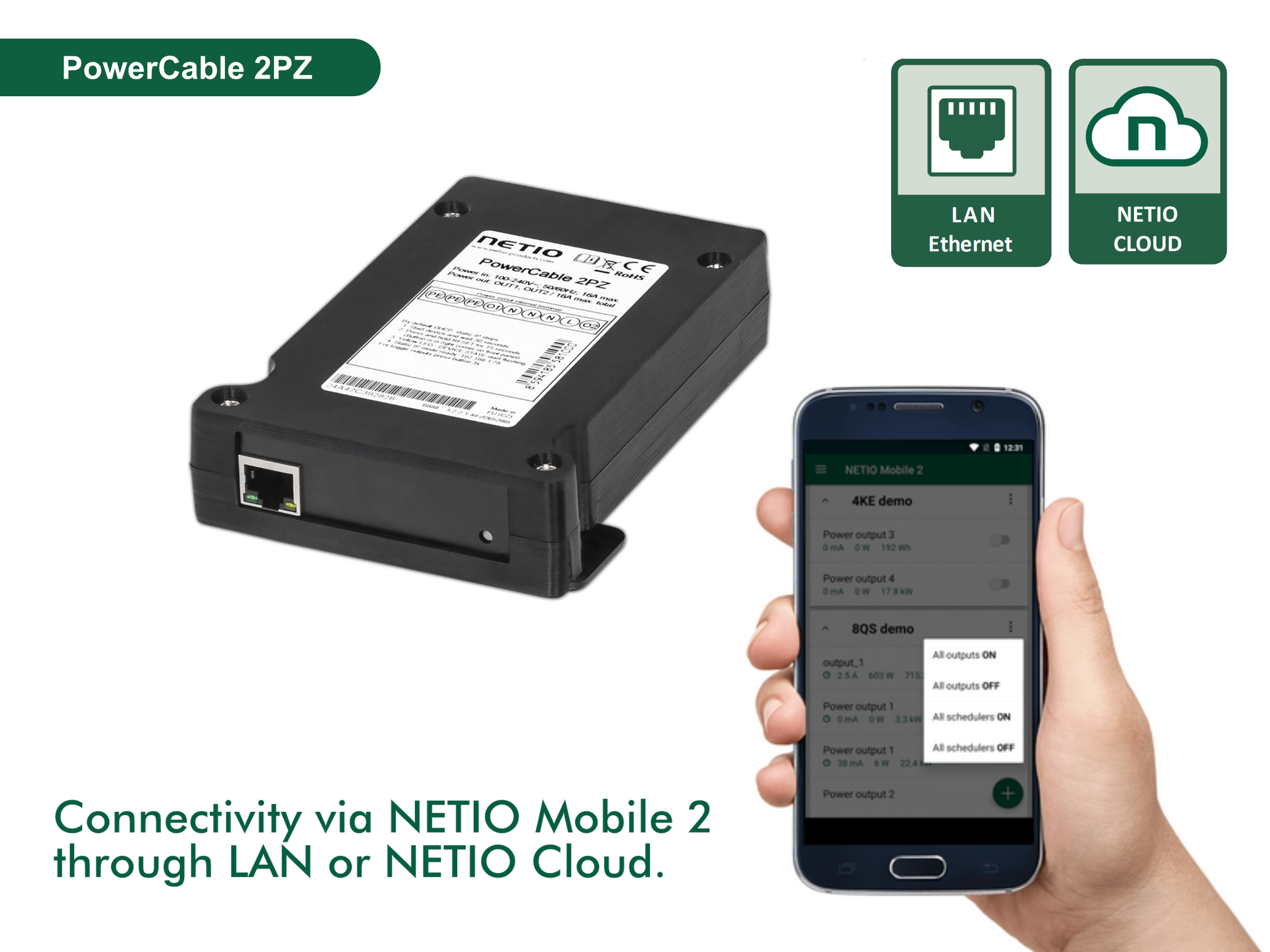

Mobile App "NETIO Mobile 2" can be used for remote contol on the same LAN or via NETIO Cloud.

AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as RTI, ELAN, SAVANT, BrightSign, Crestron, Control4 etc.


Typical applications

• The PowerCable 2PZ LAN/WiFi PDU is typically used for remote restarting.
• Each output can be switched on/off or power-cycled (short-off) from the device web interface or the NETIO Cloud service.
• Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
• Integration with various third-party programs and applications.
• Controlling the device from the NETIO Mobile 2 (LAN or NETIO Cloud).
• The NETIO Cloud service, provided for a fee, enables central control of outputs of multiple devices in various locations.

FEATURES

• 2x Power Output (230V/16A) with relays (ZVS)
• Methods for controlling each output
• WEB browser
• Mobile app: NETIO Mobile 2 (LAN or WiFi)
• NETIO Cloud
• Scheduler
• Watchdog (Power & Ping)
• Open API (10 protocols)


• NETIO Mobile 2: Mobile app
• NETIO Cloud: Paid service


• ZVS (Zero Voltage Switching): The relay is switched when the voltage crosses zero.
  This reduces relay wear and allows switching devices with a high inrush voltage.
• PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay: Delay before switching the output on
• Firmware update over the Web interface
• Scheduler function: Each output can be switched according to its time schedule (calendar)


• Open API (protocols)
• JSON over http
• Modbus/TCP
• MQTT-flex
• Telnet
• SNMP (SNMP v1/v3)
• XML over http
• URL API ? http get
• HTTP Push JSON / XML


• Supported protocols: http, DNS, NTP, uPNP, DHCP, ICMP, TCP/IP

SUPPORT FOR USERS AND DEVELOPERS

• NETIO Wiki - library for developers
• ANxx (Application Notes) with examples
• NETIO Drivers ? for AV systems

SPECIFICATIONS

PowerCable 2PZ:
Device (terminal block inside) no power cables included


POWER


• Power Input: Terminal block (Ø 2.5mm), 100-240VAC (50/60Hz) - max 16A
• Each Output: On/Off (SPST-NO relay)
• Internal consumption: 1-2W


INTERFACE


• LAN 10/100 Mbps (RJ-45)
• WiFi 2,4 GHz (internal antenna)
• Load Defaults button (on the pannel)


ELECTRICAL MEASUREMENTS


• Electrical measurements: No


PACKAGE CONTENTS


• NETIO PowerCable 2PZ
• QIG (printed Quick Installation Guide)


DIMENSIONS / WEIGHT


• PowerCable 2PZ: 102 x 32 x 149 mm
• Package: 125 x 73 x 204 mm/0.2 kg


OPERATING CONDITIONS


• Temperature: -20 °C to +55 °C
• For indoor use only (IP30)
• Designed and produced in the Czech Republic


STANDARDS/NORMS:


EN 62368, EN 60950, EN61000, EN 50581

Ordering Information

Model Name	Description
PowerCable 2PZ	Flat PDU, LAN/WiFi, 2x power output (Switched). No power cables.
