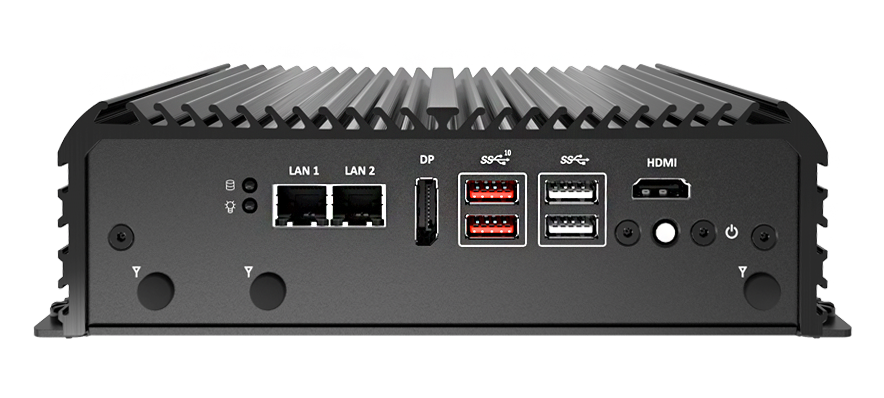

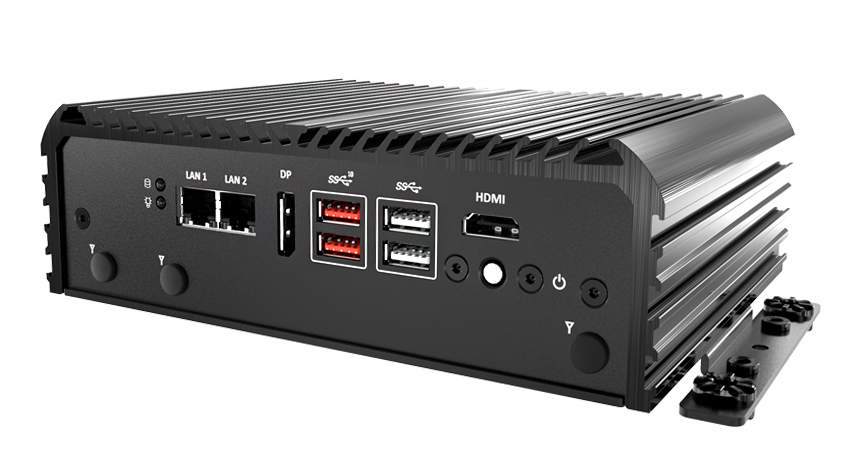

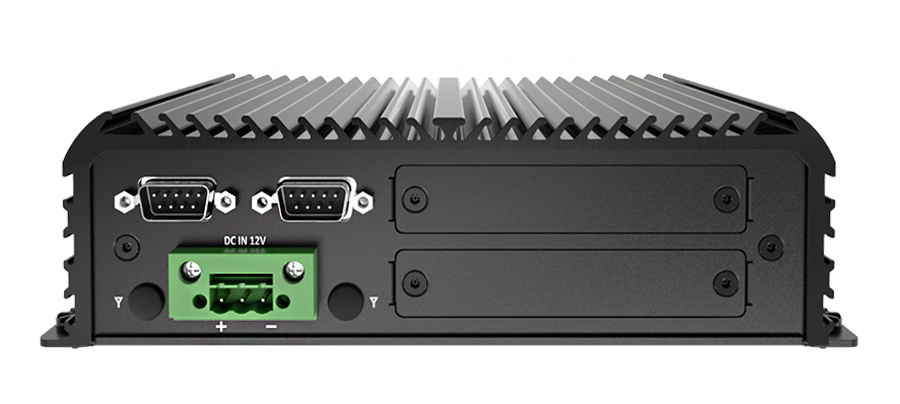

C&T Solution BCO-2000-RYZ-V1605B

C&T Basic Fanless Embedded Systems are designed for entry-level applications and basic needs.
The BCO series can oversee connected devices and manage the collection, storage, and transmission of sensor data, and is capable of distilling unexplored value in data.
It is not only robust and can withstand dust, shock, and vibration, but also can suitable for industrial automation, industrial control, kiosk & retail, and digital signage.

Specification

System
Processor	Support AMD Ryzen™ Embedded V1000/R1000 Series AMD Ryzen™ Embedded V1605B with Radeon™ Vega 8 Graphics, 4M Cache, 4 Cores, 8 Threads, Up to 3.6 GHz AMD Ryzen™ Embedded R1606G with Radeon™ Vega 3 Graphics, 4M Cache, 2 Cores, 4 Threads, Up to 3.5 GHz (Optional)
System Chipset	SoC integrated
LAN Chipset	GbE1: Intel i210 (Support Wake-on-LAN and PXE) GbE2: Intel i210 (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	2x 260-Pin DDR4 2400 MHz SODIMM. Max 32 GB
BIOS	AMI uEFI 64 Mbit SPI flash
Watchdog	Software Programmable Supports 1~255 Sec. System Reset
TPM	TPM 2.0
Display
Display Port	1x DisplayPort 1.4, DP++, Support resolution 3840 x 2160 @60 Hz
HDMI	1x HDMI 2.0b, Support resolution 3840 x 2160 @60 Hz (Optional)
LVDS	1x 24-bit dual channel LVDS, Support resolution up to 1920x1200 @60Hz
Multiple Display	Triple Display
Storage
M.2	1x M.2 B Key, 3042, Support SATA
SIM Socket	1x internal SIM socket (M.2 B Key attached)
SSD/HDD	1x Internal 2.5" SATA HDD Bay (support H=9.5mm)
Expansion
M.2	1x M.2 B Key ( PCIe x1 & USB 3.0, 3042/3052, SATA, USIM, Support 4G/5G)
Mini PCIe	1x Full-Size Mini PCIe for expansion modules
Operating System
Windows	Windows 10
Linux	Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)
I/O
COM	2x RS-232/422/485
DIO	4 in / 4 out (Isolated)
LAN	2x RJ45
Universal I/O Bracket	2x Universal I/O Bracket (By mini PCIe/M.2 interface)
USB	2x USB 3.2 Gen 2 (10 Gbps) 4x USB 2.0 (2x internal)
Others	5x WiFi Antenna Holes 1x 4-Pin FAN Connector 1x RTC battery by cable
Power
Power Adaptor	Optional AC/DC 12V/5A, 60W
Power Mode	AT, ATX 12VDC
Power Protection	Reserve Protection
Environment
Operating Temp.	-20°C to 55°C
Storage Temp.	-30°C to 85°C
Relative Humidity	10% to 95% (non-condensing)
Vibration	With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 20G, half sine, 11ms
Standards / Certification	CE, FCC Class A
Physical
Construction	Extruded Aluminum with Heavy Duty Metal
Dimension	140 (D) x 192 (W) x 57.6 (H) mm
Weight	1.5 kg
Mounting	Wall Mounting / DIN-Rail Mounting (Optional)

All product specifications and information are subject without notice.



Order Information

Available Models
BCO-2000-RYZ-V1605B	Basic Fanless Embedded System with AMD Ryzen™ Embedded V1605B, 2xLAN, 4x USB, 2x LAN
BCO-2000-RYZ-R1606G	Basic Fanless Embedded System with AMD Ryzen™ Embedded R1606G, 2xLAN, 4x USB, 2x LAN
Ordering Information
1-E09A06007	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
SFICBL022	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm
3-DINR-0004	DIN-Rail Mount Kit
3-BC2000CMKIT-S0	Module Kit with 4x COM for BCO-2000 Series
3-BC2000U2KIT-S0	Module Kit with 2x USB 2.0 for BCO-2000 Series
3-BC2000U31IT-S1	Module Kit with 2x USB 3.0 for BCO-2000 Serie
Packing List
1x BCO-2000-RYZ BOX PC Series Embedded System
1x Wall Mount Kit
1x Accessory Kit
