Bluefin - 10.1" Built-In Finished Touchscreen PoE

Designed to mount in any space out of the box. Finished screens feature sleek all-metal housings with rounded corners and a black powder-coated finish.

• All-Metal Housings
• Black painted finish, ask us about custom colors!
• Micro-SD card security cover
• VESA mounting patterns

SKU Number

• 20-3008-1085

Display

• Resolution: 1280x800
• Brightness: 400 nits
• Contrast: 800 CR
• Viewing Angles: 89/89/89/89
• 10-point PCAP touch screen

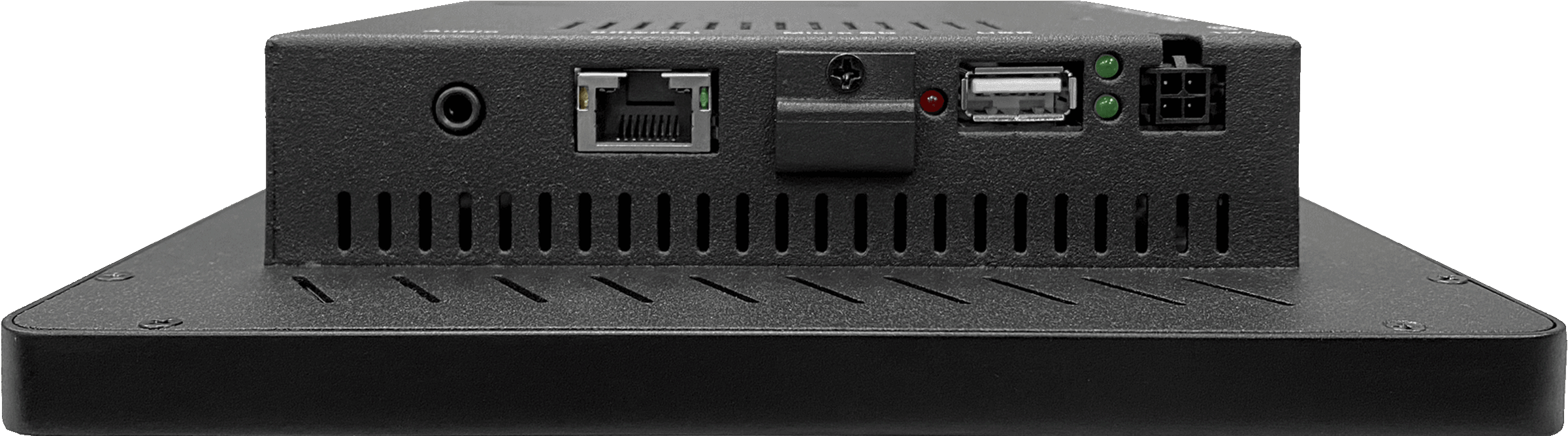

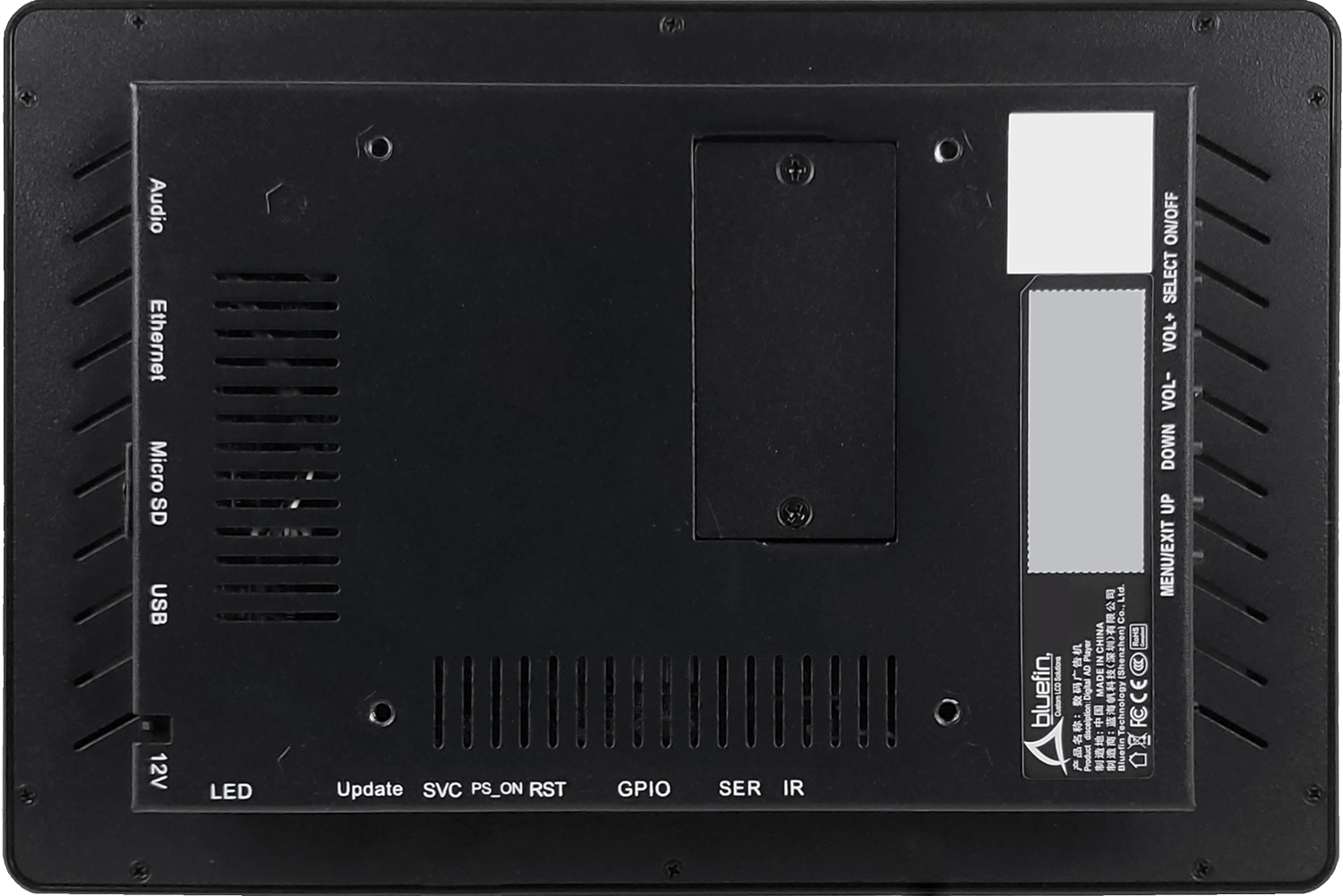

Player

• BrightSign HS5
• Storage: Micro-SD Card
• 1x USB 2.0
• Phoenix GPIO (4-pin bi directional)
• 3.5mm RS232-Serial
• 3.5mm Analog/Digital Audio Out

Network

• RJ45 Ethernet
• Optional Wi-Fi, dual band 2.5Ghz & 5Ghz 802.11ac

Power

• Connector: Molex micro-fit jr.
• Included power adapter: DC 12V 2A
• Power over Ethernet (PoE+) 802.3at

Dimensions

• Width: 250mm
• Height: 168.6mm
• Depth: 39.7mm
• Mounting: VESA 100x100mm, M4x6 thread

• Bluefin 20-3008-1085 Datasheet (193.5 kB)
• Bluefin 20-3008-1085 Mechanical Drawing (139.1 kB)
