Bluefin - 32.0" BrightSign Built-In
32.0" BrightSign Built-In Touchscreen
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- All-in-One LCD Screen
- finished and Frameless Housings
- 1920x1080 Resolution. 350nit Brightness.
- Optional Touch and Wi-Fi.
All-in-One LCD Screen
Finished Housings
Finished Housings
Designed to mount in any space out of the box. Finished screens feature sleek all-metal housings with rounded corners and a black powder-coated finish.
- All-Metal Housings
- Black painted finish, ask us about custom colors!
- Micro-SD card security cover
- VESA mounting patterns
Specifications
SKU Number
- 20-3008-1111
DISPLAY
- 32.0" LCD Screen
- Resolution: 1920x1080
- Max Brightness: 350 nits
- Viewing Angle: 89/89/89/89
- Contrast: 1200CR
- Optional: Capacitive Touch
SYSTEM
- BrightSign HS145 SoC
- Single 4K60p video decoding
- Dual HD video decoding
- 'Mainstream' HTML5 rendering
POWER
- Adapter Style: Mini Molex
- Adapter Output: 24V 4A
- Adapter SKU: 20-0150-0466

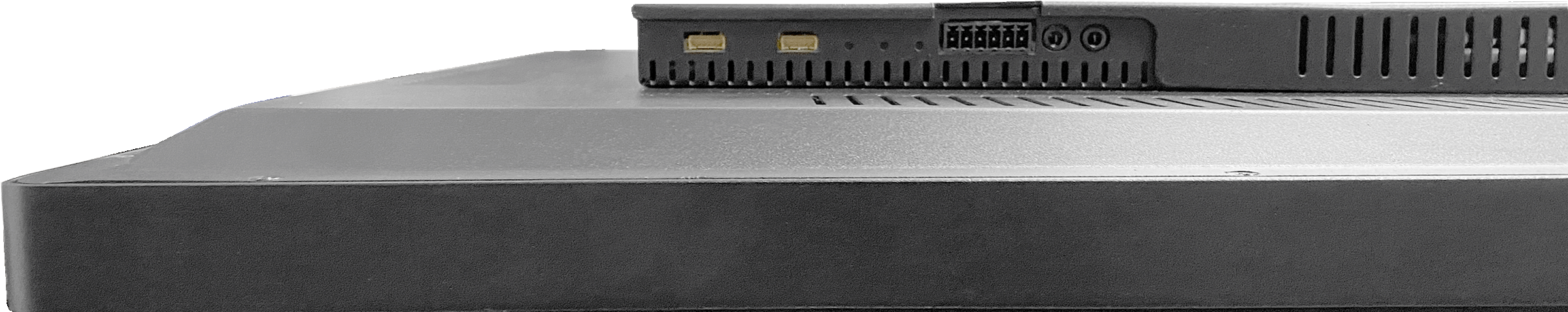

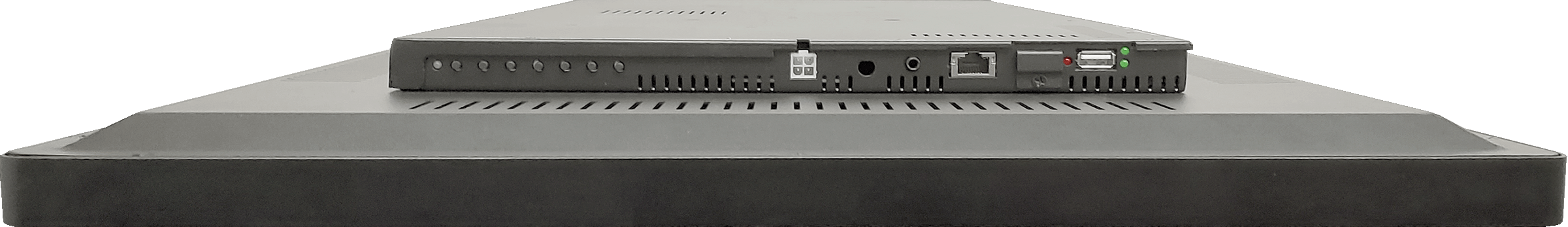

INPUT / OUTPUT
- 1x Micro-SD
- 1x USB 2.0
- Phoenix GPIO (4-pin Bi-Directional)
- 3.5mm RS232 Serial
- RJ45 Ethernet
- 2x Stereo 3W Speakers (Finished Units Only)
- 3.5mm Analog/Digital Audio Out
- Optional Wi-Fi
HOUSING / MOUNTING
Finished Non-Touch- Size: 28.2" x 16.3" x 2.3"
- Weight: 20.5 lbs (9.3kg)
- Mounting: VESA 75x75mm M4x6mm
- Size: 30.7" x 19.3" x 2.1"
- Weight: 32.6 lbs (14.8kg)
- Mounting: VESA 200x100mm M6x10mm
- Size: 28.3" x 18.3" x 2.4"
- Weight: 20.5 lbs (9.3kg)
- Mounting: VESA 75x75mm M4x8mm
- Size: 30.0" x 19.7" x 2.4"
- Weight: 28.7 lbs (13kg)
- Mounting: VESA 75x75mm M4x8mm
