Nexmosphere XQ-L2

The Lidar sensor generates a 2D 360° virtual detection surface around itself. Within this area, activation zones can be defi ned that trigger when an object enters the detection surface within the specifi ed zone. The sensor is versatile and can be mounted in any orientation, allowing for the creation of vertical, horizontal, or diagonal surfaces.

The XQ Lidar sensor can easily be connected to any of the Nexmosphere Xperience controllers using the X-talk inter- face. All settings of the XQ sensor are programmable on the controller, enabling seamless integration in your application.

• Plug and smile interface
• Compatible with any Nexmosphere Xperience controller
• Powered by and programmable with Nexmosphere Xperience controller

The XQ Lidar sensor can be configured with up to 24 Activation zones, which can be located anywhere in the sensor's Field of View. Each time an object enters or exits an Activation zone, an API message is generated. This feature can be used for a wide variaty of applications such as Lift & Learn, interactive touchpoints or Approach & Learn.

• 24 customizable Activation zones of any size
• Adjustable settings per activation zone, such as the minimum and maximum size of the objects
• Immediate trigger of API message upon object detection

The Lidar sensor can detect multiple objects simultaneously per Activation zone, as long as the objects don't overlap from the perspective of the sensor. With object-count enabled, the sensor provides a real-time count of the number of objects per Activation zone. When the sensor is applied for presence- sensing applications, this feature can be a valuable tool for generating footfall data.

• Detects multiple objects simultaneously
• Provides live count of the number of objects per zone

• Multiple installation orientations facilitate a broad range of applications
• Customizable Field-of-Interest offers the flexibility to use or ignore any part of the 360° Field of View
• Smart algorithms for obstruction detection

Specifications

Mount in such a way that the optical window (top circular part) of the sensor has a clear view towards the area of interest.

LxWxH:

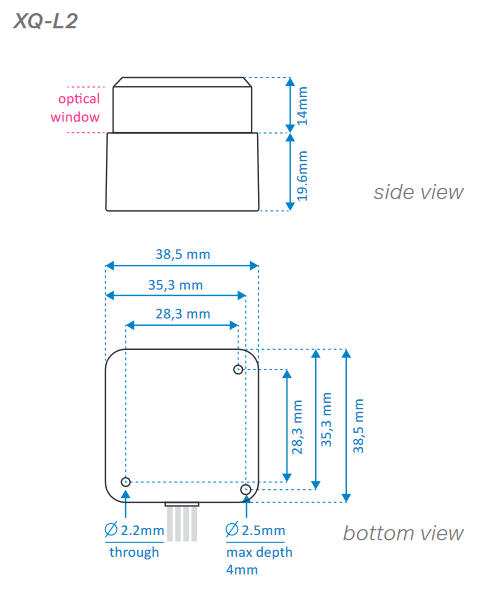

XQ-L2 sensor: 38.5 x 38,5 x 33.6 mm

Fixation:
XQ-L2 sensor: 2.2mm bolts

Operating temperature:
+10°C - +40°C/ +50°F - +104°F

Storage temperature:
-20°C - +50°C/ -4°F - +122°F

Operating voltage:
5V DC (via X-talk interface)

Power consumption:
XQ-L2: 250mA

Power peak:
XQ-L2 2A at startup

IR Emitter:
905nm invisible laser

Laser classification:
Class 1

• Custom cable lengths available on request
• 2 year warranty (optional 3 year extended warranty available)

• Nexmosphere XQ-L2 Datasheet (1384.7 kB)
