Nexmosphere XDW-A50

The X-Dot Analog is a versatile interface that connects 5V analog output devices, such as ultrasonic sensors, rotary button, sliders, and PIR motion sensors, to interactive installations.

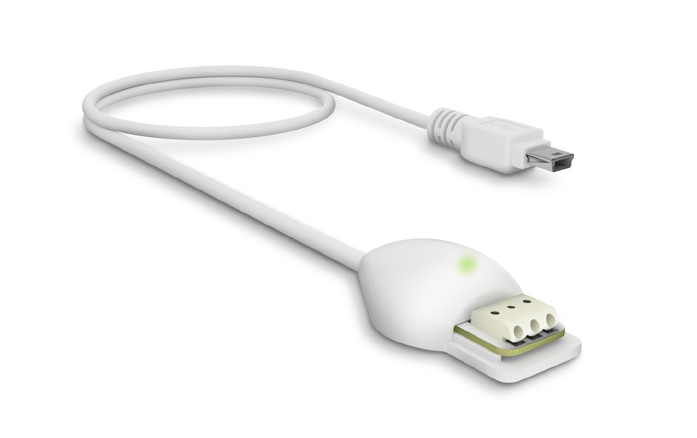

The X-Dot Analog interface has a wire-to-board connector which allows for connecting 3rd party analog devices such rotary knobs, sliders, PIR sensors and ultrasonic sensors to the Nexmosphere platform. There are 3 connections: Analog Input, Ground and Supply.

The supply (or +) wire - typically red - needs to be connected to the output pin and the ground (or -) wire - typically black - needs to be connected to the ground pin. The analog output (AO) wire of the 3rd party sensor should be connected to the Analog input pin of the X-Dot Analog.
