Nexmosphere XDB-x36C
Wired pick-up sensor
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Wired pick-up sensor
- Active security device
- Black housing
- Coiled cable

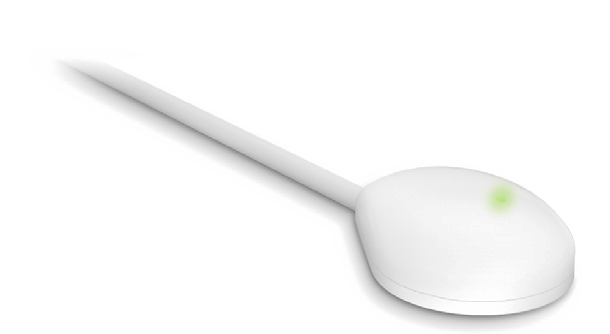

The x-Dot x is a wired pick-up sensor that can also be used as an active security device. The sensor is mounted onto the merchandize using doublesided tape. When a product is lifted or placed back, the x-Dot sends a trigger to the connected xperience controller. The security function sends triggers whenever merchandize is removed, the wire is cut or pulled out.
x-talk
The x-Dot x can easily be connected to any of the Nexmosphere xperience controllers using the x-talk interface. All settings of the xD sensor are programmable on the controller, enabling a seamless integration in your application.
- Plug and smile interface
- Compatible with any Nexmosphere xperience controller
- Powered by and configurable with Nexmosphere xperience controller
Pickup detection
The sensor registers a pick-up of the merchandise as well as when it is placed back on the shelf (place-down). Both events will be sent as triggers from the xperience controller to the connected media player, for example, to start a video or illuminate a string of LEDs.
- Programmable sensitivity on the xperience controller
- Pick-up and place-down registration
- Highly responsive
- False detection eliminated (sensor shake)
Security
The alarm sensor triggers if the merchandise is removed; cables are cut or the sensor is removed from the xperience controller. The micro-optical sensor has no moving parts eliminating false alarm caused by most commonly used micro-switches.
- No mechanical moving parts that can break by intense use
- Easy to setup and maintain (plug and secure)
- Status LED clearly indicates alarm status (adjustable via API commands)
Benefits
- Unique cable connection (bottom feed or side feed) enables invisible cable installation
- Securely mounts on any flat surface, horizontal, vertical or angled
- Easy removable non-marking double-sided tape
- Status LED for visual feedback
x-DOT x WIRED PICKUP SENSOR Specifications
Mounting specifications
- Adhere the sensor to the merchandise using the double-
sided adhesive tape on the flat bottom side.
Mechanical dimensions
- LxWxH:
29 x 22 x 10 mm
Fixation:
Double-sided adhesive tape
Thermal specifications
- Operating temperature:
+10°C?+40°C/ +50°F ? +104°F
Storage temperature:
-20°C?+50°C/ -4°F ? +122°F
Electrical specifications
-
Operating voltage:
5V DC (via x-talk interface)
Power consumption:
50mA
Miscellaneous
- Custom colors and cable lengths available on request (MOQ 50pcs)
- 1-year warranty (optional 3-year extended warranty available)
Ordering information
| Product ID | Description |
|---|---|
| xDW-x16 | x-Dot x, Pick-up only, 180cm cable, white |
| xDW-x26 | x-Dot x, Security only, 180cm cable, white |
| xDW-x36 | x-Dot x, Pick-up & Security, 180cm cable, white |
| xDW-x36C | x-Dot x, Pick-up & Security, 180cm coiled cable, white |
| xDB-x16 | x-Dot x, Pick-up only, 180cm cable, black |
| xDB-x26 | x-Dot x, Security only, 180cm cable, black |
| xDB-x36 | x-Dot x, Pick-up & Security, 180cm cable, black |
| xDB-x36C | x-Dot x, Pick-up & Security, 180cm coiled cable, black |
