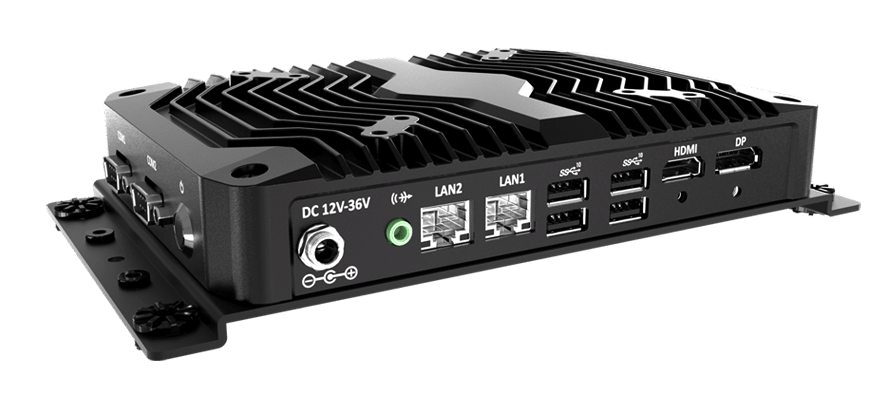

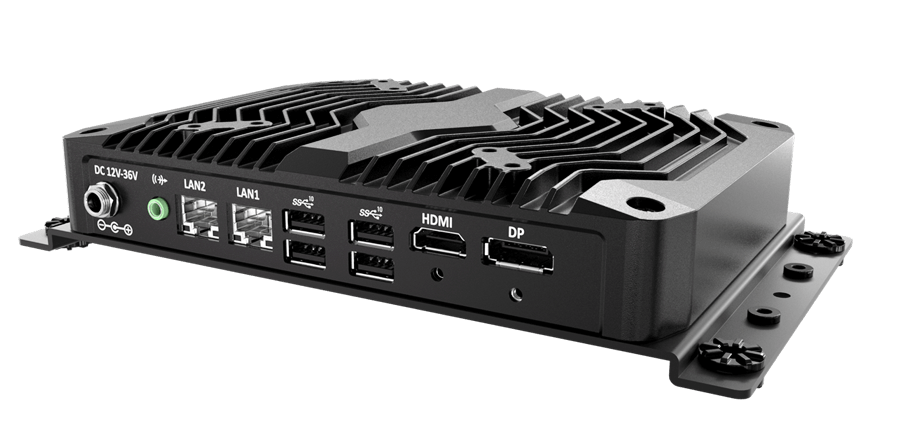

C&T Solution BCO-500-ADL Series
Semi-Rugged Fanless Mini Computer with IntelŽ Alder lake N97/i3-N305 Processor, 1x DP, 1x HDMI, 4x USB, 2x LAN
egenskaber
beskrivelse
yderligere information
lignende produkter
udskriv denne side
føj til notater
vis mine notater
PDF
egenskaber
beskrivelse
yderligere information
PDF
- Support IntelŽ Alder Lake N97/i3-N305 Processor
- 1x 262-Pin DDR5 4800MT/s SO-DIMM. Max. up to 16GB
- Dual Independent Display by 1x Display Port, 1x HDMI
- 2x IntelŽ I225-V 2.5GbE LAN
- 1x M.2 B-Key, 1x M.2 E-Key
- 2x COM, 4x USB 3.2, 1x Line-out
- 12 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -10°C to 50°C
- TPM 2.0 Supported
- CE, FCC Class A, UL, VCCI, RCM
The BCO-500-ADL is a fanless mini embedded computer that brings robust performance and connectivity to the most space constrained applications. Powered by 12th Generation Intel Alder Lake N, the BCO-500-ADL provides an industrial alternative to consumer-grade Intel NUCs. It's mini form factor allows the computer to seamlessly retrofit into space-constrained applications and integrate with IoT devices and sensors.
Specifications
| System | |
|---|---|
| Processor |
|
| System Chipset | SoC integrated |
| LAN Chipset | 2 x IntelŽ I225-V 2.5GbE LAN |
| Audio Codec | Realtek ALC897 |
| System Memory | 1x 262-Pin DDR5, 4800MHz SO-DIMM, Max. up to 16GB (Non-ECC) |
| BIOS | AMI uEFI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 1 x DisplayPort 1.4a, Max Resolution 4096 x 2304 @60Hz |
| HDMI | 1 x HDMI 1.4b, Max Resolution 3840 x 2160 @30Hz |
| Multiple Display | 2x Independent Displays |
| Storage | |
| M.2 B-Key | 1 x M.2 B Key (2242/2280/3042, SATA/PCIe x1 support SATA/NVMe) |
| Expansion | |
| M.2 | 1 x M.2 E Key (2230, PCIe x1, USB 2.0 for Wifi/Bluetooth) |
| I/O | |
| DisplayPort | 1x DisplayPort |
| HDMI | 1 x HDMI |
| COM | 2x DB9 COM1: RS232/422/485 COM2: RS232 |
| USB | 4x USB 3.2 Gen 2 (10 Gbps) |
| LAN | 2x RJ45 2.5GbE LAN Ports Connectors |
| Audio | 1x Line-out |
| Others | 6x Antenna Holes 1x Power button 1x DC in Power Jack with Lock |
| Operating System | |
| Windows | Windows 10 / Windows 11 |
| Linux | Linux kernel |
| Power | |
| Power Adapter | Adapter 60W (optional) |
| Power Mode | AT, ATX (Default ATX) |
| Power Supply Voltage | 12~36VDC |
| Power Connector | DC in Power Jack with Lock |
| Environment | |
| Operating Temperature | N97 CPU: -10°C to 50°C (12W) i3-N305 CPU: -10°C to 45°C (15W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | UL 61010-2-201, CE, FCC Class A, VCCI, RCM |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions | 225 (W) x 130 (D) x 41 (H) mm |
| Weights | 3KG |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting Din-Rail Mounting (Optional) |
Compliances and Standards
| Shock | With SSD: 50G half-sin 11ms IEC60068-2-27:2008 Designed to comply with MIL-STD-810G Method 516.7 Procedure I |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) IEC60068-2-64:2008 Designed to comply with MIL-STD-810G Method 514.7 Procedure I |
| Operating Temperature | N97 CPU: -10°C to 50°C (12W) i3-N305 CPU: -10°C to 45°C (15W) IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock) |
| EMI |
|
| Safety |
|
Order Information
| Available Models | |
|---|---|
| BCO-500-ADL-2L-N97 | Fanless Mini Industrial Computer with IntelŽ Alder Lake N97, QC, 12W Processor, 1x DP, 1x HDMI, 4x USB, 2x LAN |
| BCO-500-ADL-2L-N305 | Fanless Mini Industrial Computer with IntelŽ Alder Lake i3-N305, QC, 15W Processor, 1x DP, 1x HDMI, 4x USB, 2x LAN |
| Optional Accessories | |
| 1-TPCD00005 | Power Cord, 3-pin US Type, 180cm |
| 1-TPCD00002 | Power Cord, European Type, 180cm |
| 1-TPCD00001 | Power Cord, 3-pin UK Type, 180cm |
| 3-BC5AD110S10-S0 | Din-Rail Mounting Kit |
| 3-BC5AD020S10-S0 | M.2 B KEY Thermal Kit |
| Packing List | |
| 1x BCO-500-ADL Series Fanless Mini Computer | |
| 1x Accessory Kit | |
