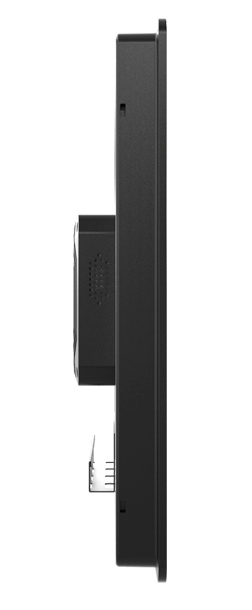

S-CONNECT - C&T Solution AIO-W221-MX

21.5" (16:9) Full HD Capacitive All-in-One Touchscreen Monitor
Front IP65 for protection against water and dust
Scratch Resistant 7H Glass Hardness IK07
Versatile Display Outputs; HDMI and DP
Anti-Noise CS 10V rms
0°C to 50°C extended operating temperature
MTBF 50,000 Hours
World Class Certifications for Safety and Reliability: CE/FCC/CB/UL/UKCA/IC

The AIO-200-MX Series is a new lineup of rugged touchscreen monitors designed for industrial edge environments. With a fanless, anti-glare design and long-life backlight, it?s the ideal HMI for 24/7 operations.

The AIO-200-MX Series is equipped with an IP65-rated front panel, offering reliable protection against dust, water splashes, and industrial contaminants.

Ideal for food processing lines
Withstands washdown environments
Performs reliably in dusty warehouses
Built for harsh conditions

Specifications

Display
IP Rating	Front IP65
LCD Size	21.5" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m²)	400 nits with Anti-Glare Screen
Contrast Ratio	1000:1
LCD Color	16.7M
Pixel Pitch (mm)	0.24795 (H) x 0.24795 (V)
Viewing Angle	89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF	50,000 Hours (LED Backlight)
Touch
Touch Type	Projected Capacitive Touch
Surface Hardness	7H / IK07
Multi-touch	10 point (Support Glove Mode )
Anti-noise	CS 10V rms
Interface	USB Type B
I/O
DisplayPort	1x Display Port 1.1
HDMI	1x HDMI 1.4a
USB	2x USB 2.0 Type A 1x USB Type B for Touch
Speaker	Internal Speaker 2W+2W
OSD	On/Off, Menu, Adjust - and +, Exit
Audio	1x line-out
Power
Power Adapter	60W with locking (12V 5A)
Power Supply Voltage	DC 12V~24V
Power Connector	DC Jack 5.5mm/2.5mm (OD/ID)
Environment
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Relative Humidity	10% to 80% (non-condensing)
Certification	UL 62368 Ed. 3, CE, FCC Class A, CB, ICES-003, UKCA, RCM, VCCI
Vibration	3 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	20G half-sin 11ms
Physical
Dimensions	538 (W) X 329 (H) X 62 (D) mm
Weights	5.2 kg
Mounting	VESA Mount (75mm x 75mm/100mm x 100mm) Panel Mount (optional)
Compliances and Standards
Shock	3 Grms (5 - 500 Hz, 0.5 hr/axis) IEC60068-2-27:2008 Designed to comply with MIL-STD-810G Method 516.7 Procedure I
Vibration	20G half-sin 11ms IEC60068-2-64:2008 Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Operating Temperature	-10°C to 50°C IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock)
EMC	FCC Class A (47 CFR part 15.109 and part 15.107) CE ICES-003 UKCA Industrial EMC Compliance - EN 61000-4-2: 2009 - EN IEC 61000-4-3: 2020 - EN 61000-4-4: 2012 - EN 61000-4-5: 2014 +A1: 2017 - EN 61000-4-6: 2014
Safety	UL Safety: UL62368-1, 3rd Ed., (cULus) Test procedure: CB Scheme Standard: IEC 62368-1:2018
Environmental Compliance	RoHS 3 (2015/863/EU) REACH

Ordering Informaation

Model No.	Description
Available Models
AIO-W221-MX	15.6" Full HD Capacitive Industrial Touchscreen Monitor, 1x HDMI, 1x Display Port
Packing List	1x AIO-W221-MX Series Industrial Touchscreen Monitor 1x Adapter 60W 12V 5A 1x USB Cable 1x HDMI Cable
Optional Accessories
1-E09A06012	Adapter Output 12V 5A 60W / Input 100-240V
1-TDPP00006	3 ft. DP-DP cable
1-THDM00008	3 ft. HDMI-HDMI cable
1-TUSB00084	3 ft. USB 2.0 Type A - Type B touch cable
1-TPWR00118	3P Terminal Block(Female) To DC Plug 5.5x2.5 With Lock_100 mm_For AIO Series
1-ND800000100	3P male dinkle connector
3-AI215040S10	AIO-W221 Panel Mount Bracket Kit
3-AI215080S10	AIO-W221C Cable Management KIT

C&T Solution AIO-W221-MX Datsheet (296.4 kB)
