NETIO PowerPDU 8KS

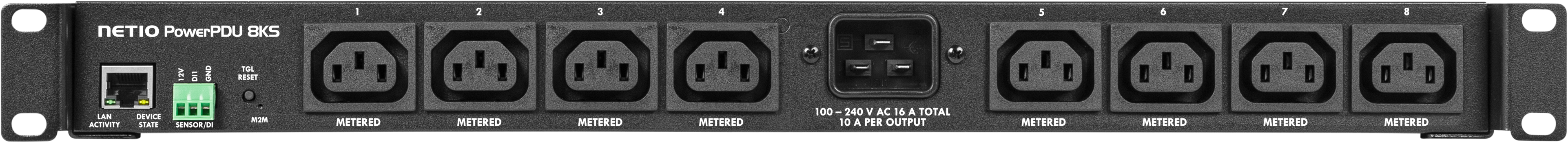

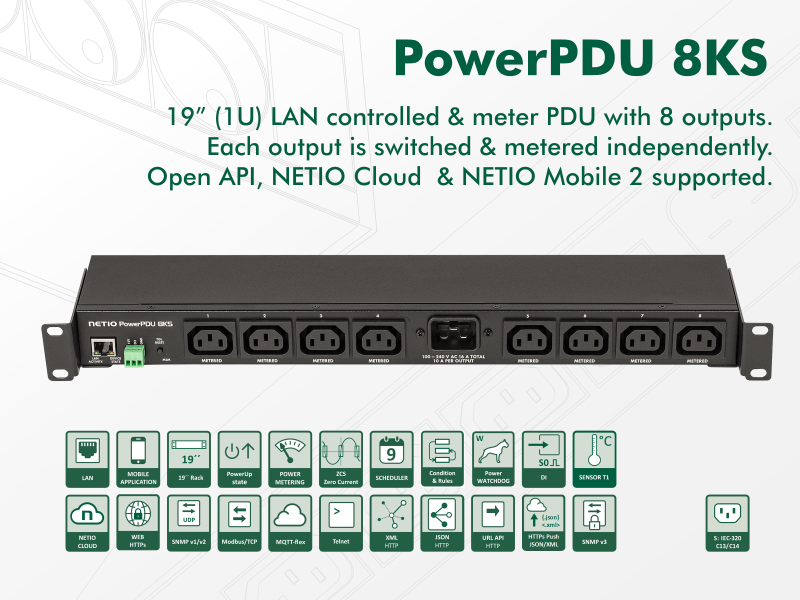

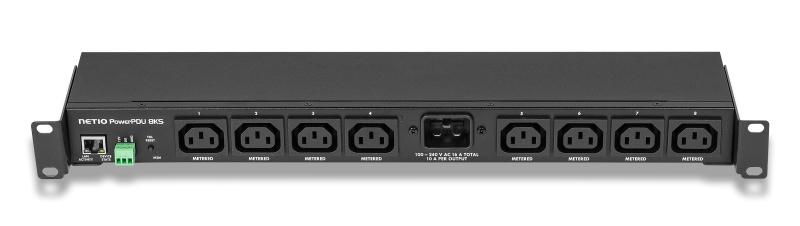

NETIO PowerPDU 8KS is a PDU (Power Distribution Unit) with 8 measured outputs (8x IEC-320 C13) connected to a LAN network. Each output can be switched on/off and measured individually via LAN or from the NETIO Cloud online service. It fits into a 19" cabinet (1U). The green DI (Digital Input) terminal block can be used to connect an mechanical switch (dry contact) or an external temperature sensor. With the NETIO T1 temperature sensor, the defined output can be switched based on temperature ( thermostat function).

NETIO PowerPDU 8KS can be configured with a web browser (allows output control, connection to NETIO Cloud, Open API communication settings, etc.).

Each output is separately metered and can be turned off and on individually.

Ready-made AV drivers make it simple to connect the NETIO PDU to professional Audio/Video systems such as BrightSign, Crestron, Control4, Domotz, Elgato Stream Deck, Kramer, RTI, SAVANT, SKAARHOJ and more. Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

The NETIO Mobile2 app controls each output individually over LAN (local network).

The PowerUp sequence or power-up delay can be configured for each output.

Mechanical button (dry contact) or an external temperature sensor can be connected to the green DI input. By pressing a button or a temperature value, the defined output(s) can be switched using C&R (Condition & Rules) conditions.

1. The PowerPDU 8KS can be used for power balancing due to energy metering on each output.
2. Several PowerPDU 8KS units are typically used in IT data-centers for electricity distribution in a 19" rack (cabinet). Vertical or horizontal montage is available.
3. With using external T1 temperature sensor can be used thermostat feature to ativate additional cooling in case of too high temperature.
4. High temperature email alerting via NETIO Cloud can be realized in case of high temperature with external T1 temperature sensor.
5. Saving energy in meeting rooms (Scheduler switches equipment on/off at predefined time).
6. Controlling the power (to TV sets, audio systems, lighting) from various AV systems in stores, smart homes, museums, digital signage applications.

• 8x IEC-320 C13 power output
• Each output can be switched on/off individually
• Methods for controlling each output:
  • WEB browser
  • Open API (10 protocols)


• NETIO Mobile 2: Mobile app
• NETIO Cloud: Service for controlling multiple devices


• ZCS (Zero Current Switching): The relay is switched when the current crosses zero. It reduces relay wear and allows switching devices with a high Inrush Current.

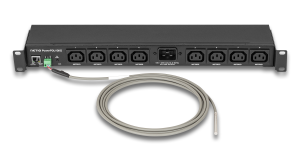

• Temperature sensor: External temperature Sensor T1 on 3m cable can be connected to DI.
• FW upgrade over the Web interface
• The Scheduler function: Time based switching


• Open API (protocols)
• JSON over HTTP(s)
• Modbus/TCP
• MQTT-flex
• Telnet
• SNMP (SNMP v1/v3)
• XML over HTTP(s)
• HTTP(s) push (JSON / XML)
• URL API - HTTP get
• Supported protocols: HTTP(s), DNS, NTP, uPNP, DHCP, ICMP, TCP/IP

• NETIO Wiki - library for developers
• ANxx (Application Notes) with examples
• NETIO Drivers - for AV control systems

SPECIFICATIONS

• Power input: IEC-320 C20 (110/230V AC), max 16A
• Power output: 8x IEC-320 C13, max 10A each
• Each output: On/Off (relay SPST-NO)
• ZCS (Zero Currents Switching): Yes
• Internal consumption: 1-3 W
• PowerUp State: Default output state (On/Off/Last state)
• PowerUp Delay: Delay before switching output on

• LAN 10/100 Mbps (RJ-45)

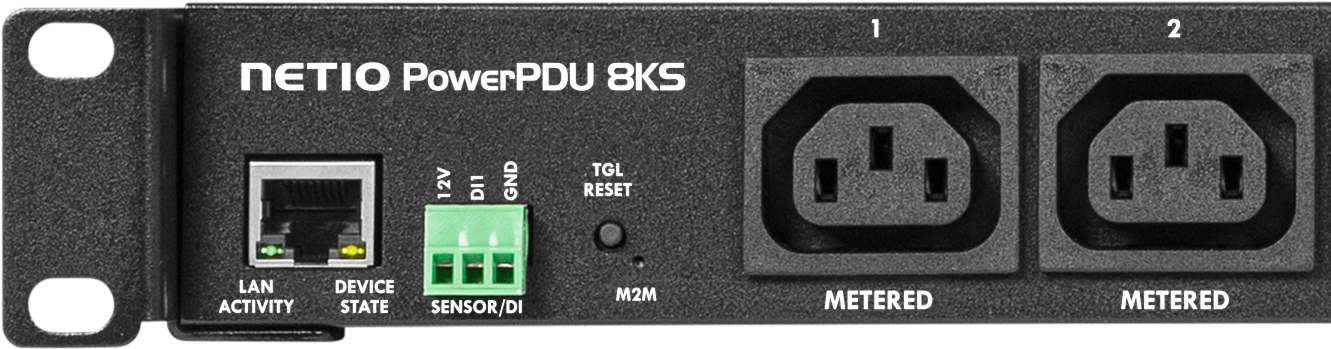

• 1x DI (Digital Input) with 12V DC (max 50mA)
• LED indicators in the RJ45 jack & M2M LED

• 8x Current [A]
• 8x Consumption [kWh]
• 8x Reverse Energy [Wh]
• 8x Power [W]
• 8x TPF (True Power Factor)
• Frequency [Hz]
• Voltage [V]
• Phase [°]
• Accuracy: <1% (25°C)

• NETIO PowerPDU 8KS
• QIG (printed Quick Installation Guide)

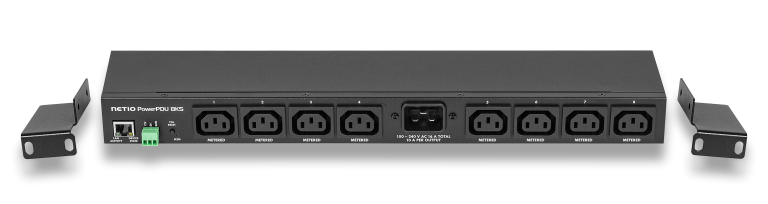

• Metal brackets to 19" cabinet (1U) + screw set
• Power cord according to the order code

• PowerPDU 8KS: 439 x 41 x 90 mm / 1.3 kg
• Package: 514 x 73 x 204 mm / 1.6 - 1.9 kg

• Temperature -20 °C to 65 °C /5A (-20 to 50 °C /16A)
• For indoor use only (IP30)

EN 62368, EN 60950, EN61000, EN50581 UL 62368-1, CAN/CSA C22.2 No. 62368-1

Ordering Information

• NETIO PowerPDU 8KS Datasheet (3009.6 kB)
