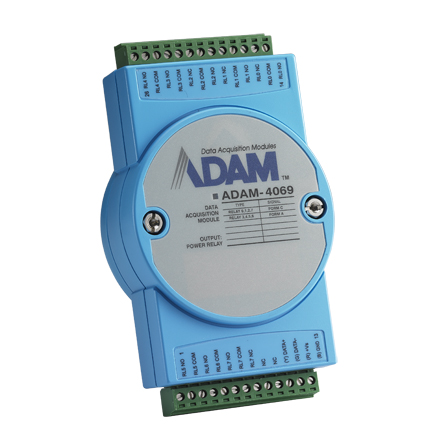

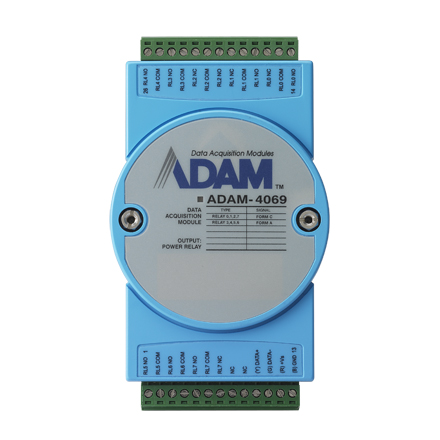

Advantech ADAM-4069

8-channel Power Relay Output Module with Modbus®

Advantech ADAM-4069
  • egenskaberegenskaber
  • beskrivelsebeskrivelse
  • yderligere informationyderligere information
  • PDFPDF
  • High Power Relay Output : 240Vac@5A, 30Vdc@5A
  • 8-channel Relay Output
  • 4 form A channels and 4 form C channels
  • Supports Modbus/RTU protocol and ADAM ASCII commands
The Advantech ADAM-4069 is designed for on/off control in high-voltage applications. The major feature of ADAM-4069 is its power relay rating at 240 V AC and 5 A. This range can satisfy most requirements for driving externally controlled devices such as lights, fans, alarm systems, and various electronic devices in industrial automation, security, building and home automation applications. ADAM-4069 also supports the Modbus/RTU protocol and ADAM ASCII commands. Besides, it provides four form A channels and four form C channels.
ProdGrafik
SPECIFICATIONS


General

Connectors
2 x plug-in terminal blocks (#14 ~ 28 AWG)

Power Consumption
2.2 W @ 24 V DC

Watchdog Timer
System (1.6 second) & Communication

Supported Protocols
ASCII command and Modbus/RTU


Relay Output

Breakdown Voltage
1,000 V AC (50/60 Hz)

Channels
4 x Form A
4 x Form C

Contact Rating (Resistive)
5 A @ 250 V AC
5 A @ 30 V DC

Initial Insulation Resistance
1 G Ω min. at 500 V DC

Relay off Time (Typical)
5.6 ms

Relay on Time (Typical)
5 ms

Maximum Operating Speed
6 operations/min (at related load)



COMMON SPECIFICATIONS

General

Power Input
Unregulated 10 ~ 30 V DC

Environment

Operating Humidity
5 ~ 95% RH

Operating Temperature
-10 ~ 70°C (14 ~ 158°F)

Storage Temperature
-25 ~ 85°C (-13 ~ 185°F



Ordering Information

Part Number Description
ADAM-4069-AE 8-Channel Power Relay Output Module w/ Modbus
